Diagram 3 – Impex IVT-50 User Manual
Page 9

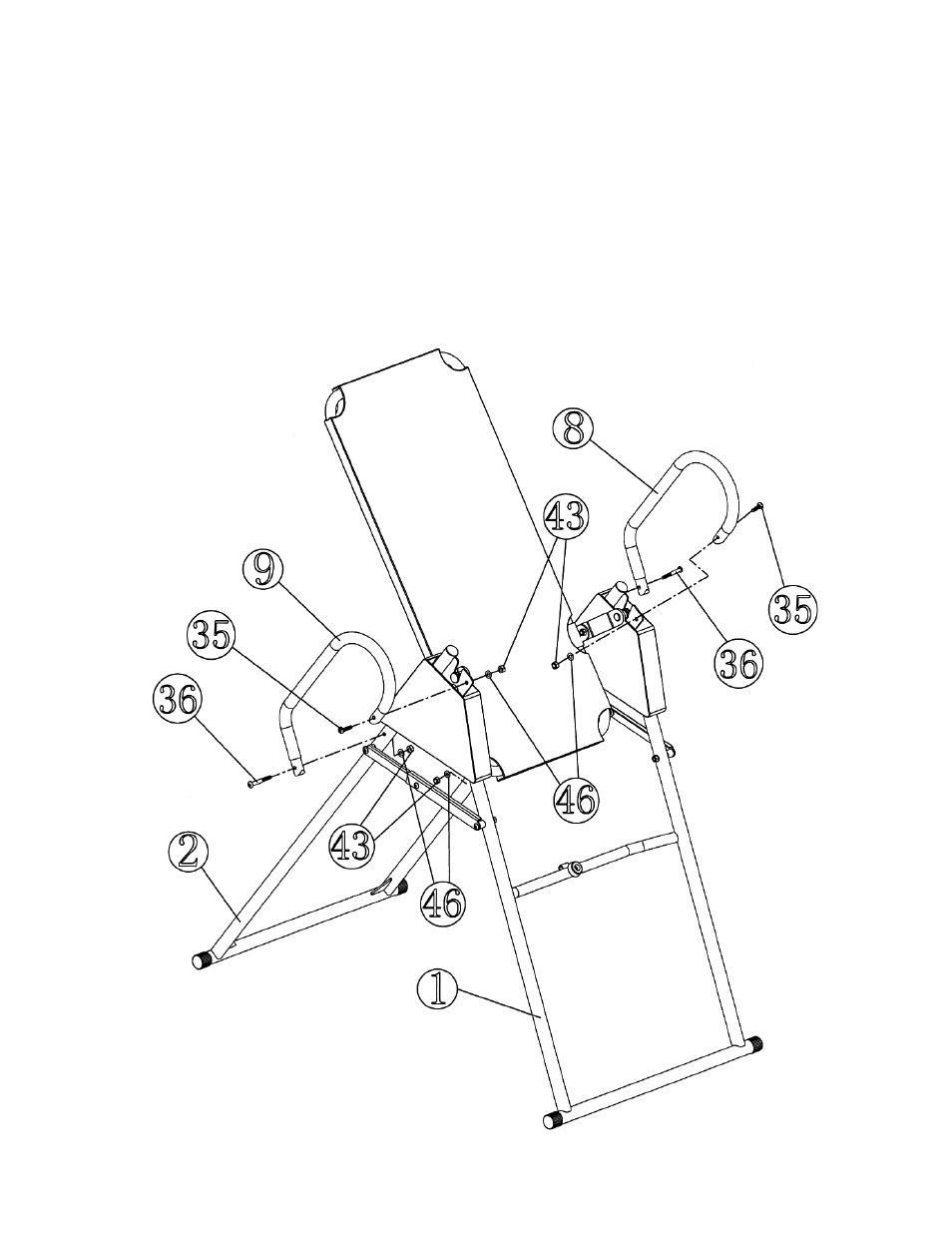

STEP 3 (See Diagram 3)
A.) Attach the Left Handle (#8) to Front Support Frame (#1). Secure it with one M8 x ¾”
Allen Bolt (#35), one Ø 5/8” Washer (#46), and one M8 Aircraft Nut (#43).
B.) Attach the Left Handle to the Rear Support Frame (#2). Secure it with one M8 x 1 ¾”
Allen Bolt (#36), one Ø 5/8” Washer (#46), and one M8 Aircraft Nut (#43).
C.) Repeat Procedures A & B to install the Right Handle (#9).
DIAGRAM 3
8
