Diagram 4 – Impex IVT-50 User Manual

Page 10

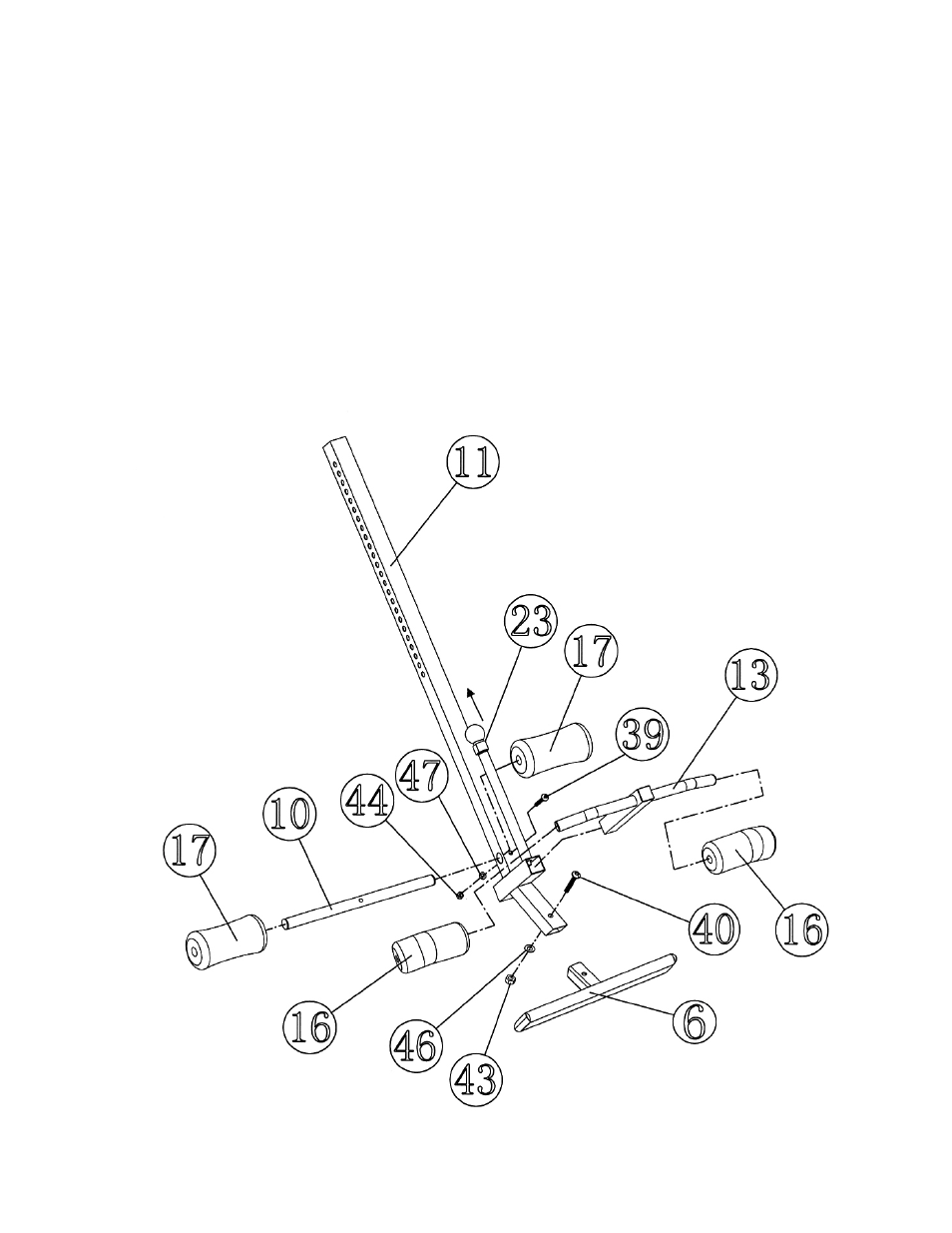

STEP 4 (See Diagram 4)

A.) Pull up the Foot Adjustment Lock Pin (#23). Insert the Foot Lock Frame (#13) into the

Adjustment Fame (#11). Push down the Pin to securely lock the Foot Lock Frame in
position.

B.) Insert the Foot Support (#6) into the bottom of Adjustment Frame. Secure it with one M8 x

1 5/8” Allen Bolt (#40), one Ø 5/8” Washer (#46), and one M8 Aircraft Nut (#43).

C.) Insert the Foam Tube halfway through the hole on Adjustment Frame. Push two Foam

Rolls (#17) onto the Tube from both ends.

D.) Push two Curved Foam Rolls (#16) onto the tube on Foot Lock Frame from both ends.

DIAGRAM 4
