GA-8I945GZME-RH Motherboard

- 26 -

English

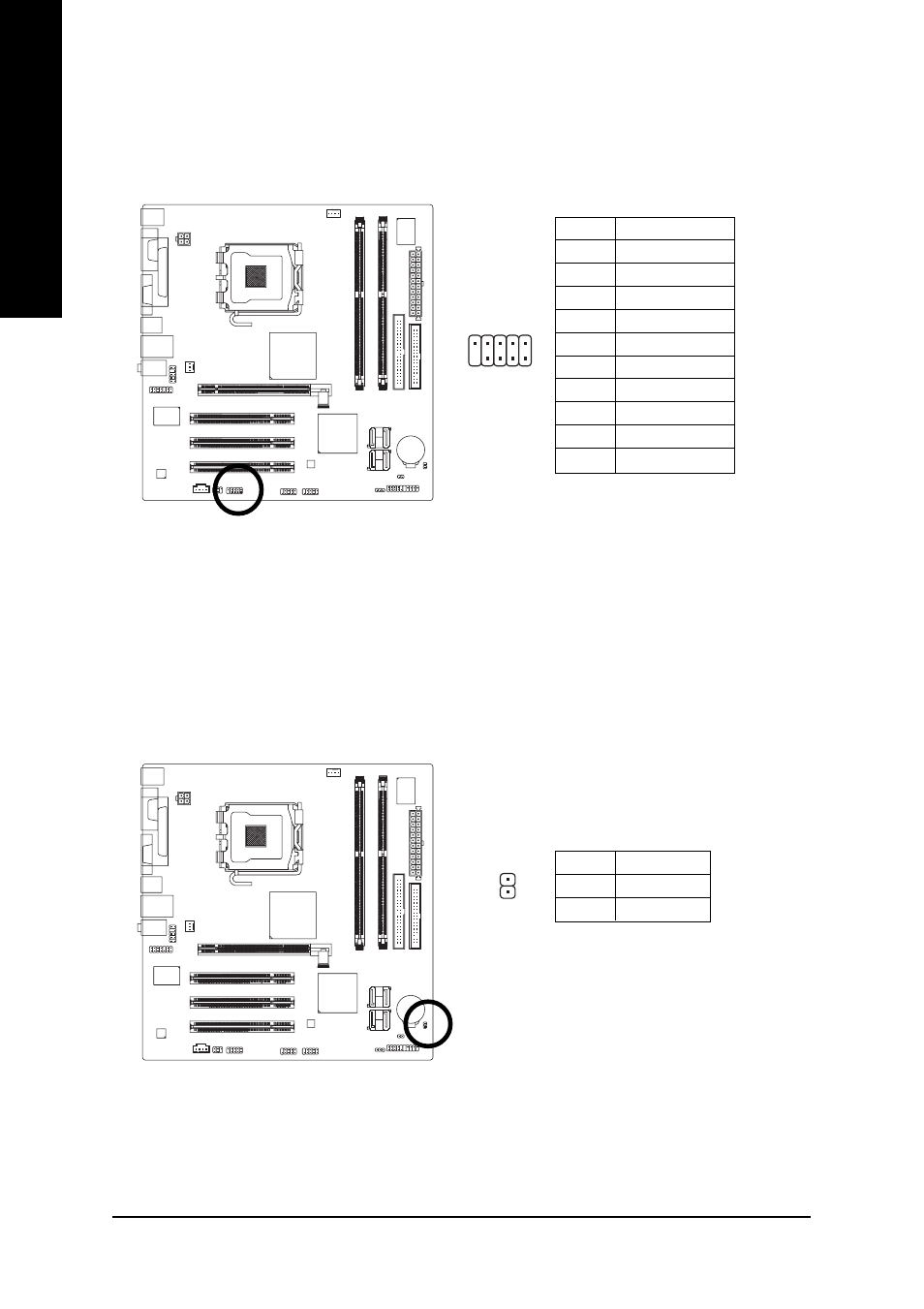

16) CI (Chassis Intrusion, Case Open)

This 2-pin connector allows your system to detect if the chassis cover is removed. You can check
the "Case Opened" status in BIOS Setup.

1

Pin No.

Definition

1

Signal

2

GND

15) COMB (COMB Connector)

Be careful with the polarity of the COMB connector. Check the pin assignments while you connect
the COMB cable. Please contact your nearest dealer for optional COMB cable.

Pin No.

Definition

1

NDCDB-

2

NSINB

3

NSOUTB

4

NDTRB-

5

GND

6

NDSRB-

7

NRTSB-

8

NCTSB-

9

NRIB-

10

No Pin

10

9

2

1
