Hardware Installation

- 25 -

English

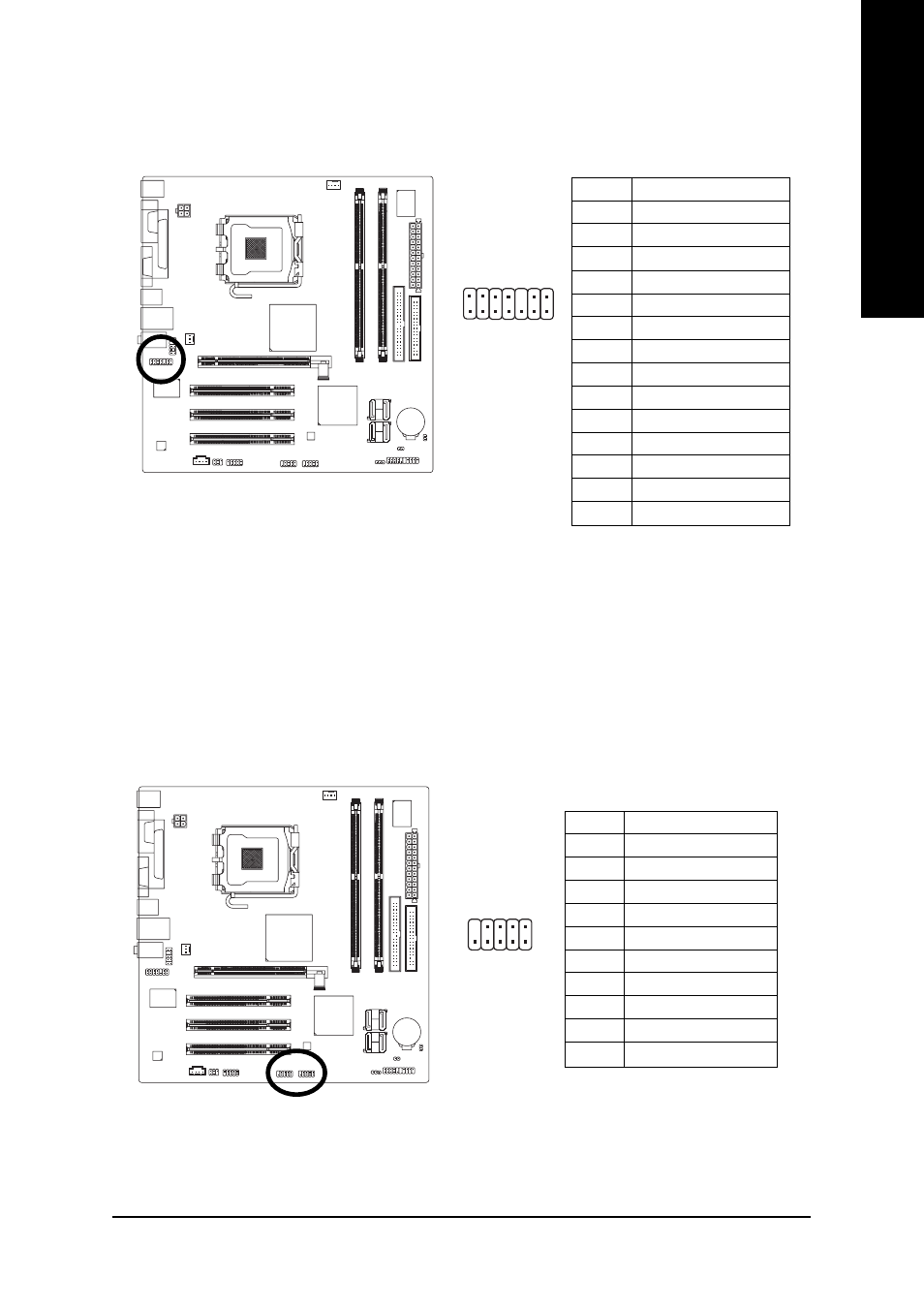

14) F_USB1/F_USB2

(Front USB Connectors)

Be careful with the polarity of the front USB connector. Check the pin assignment carefully while you
connect the front USB cable, incorrect connection between the cable and connector will make the
device unable to work or even damage it. For optional front USB cable, please contact your local
dealer.

2

10

1

9

Pin No.

Definition

1

Power (5V)

2

Power (5V)

3

USB DX-

4

USB Dy-

5

USB DX+

6

USB Dy+

7

GND

8

GND

9

No Pin

10

NC

13) HDA_SUR (Surround Center Connector)

Please connect the connector of the Surround Kit module to this connector.

Pin No.

Definition

1

LEF_P

2

SURR_RR

3

CEN_P

4

SURR_LL

5

CEN_JD

6

SURR_JD

7

GND

8

-SUR_DET

9

GND

10

NA

11

GND

12

S_SURR_JD

13

S_SURR_LL

14

SURR_RR

1

2

13

14
