STEP 3 (See Diagram 3)
A.) Attach the lower holes on the Backrest Supports (#7) to the pivot on the Sliding Block
(#5). Secure them with one M12 x 6 ½” Allen Bolt (#19), two
∅
1” Washers (#25), and
one M12 Aircraft Nut (#26).
B.) Attach the Seat Support Frame (#6) to the hole on the Backrest Support (#7). Make
sure the Seat Support Frame is on the outside of the Backrest Support. Align the holes
and secure them with one M12 x 2 ½” Allen Bolt (#20), two Ø 1” Washers (#25), and
one M12 Aircraft Nut (#26). Repeat the same step to install the other side. Note: The
Bolt must be inserted from inside of Backrest Support to the outside of the Seat
Support Frame.
C.) Loosen up the Knob Bolt on the Sliding Track to adjust the position so the front end of
the two Seat Support Frames (#6) can be aligned to the pivot on the Main Frame (#1).
Secure them with one M12 x 8 ½” Allen Bolt (#18), two Ø 1” Washers (#25), and one
M12 Aircraft Nut (#26).

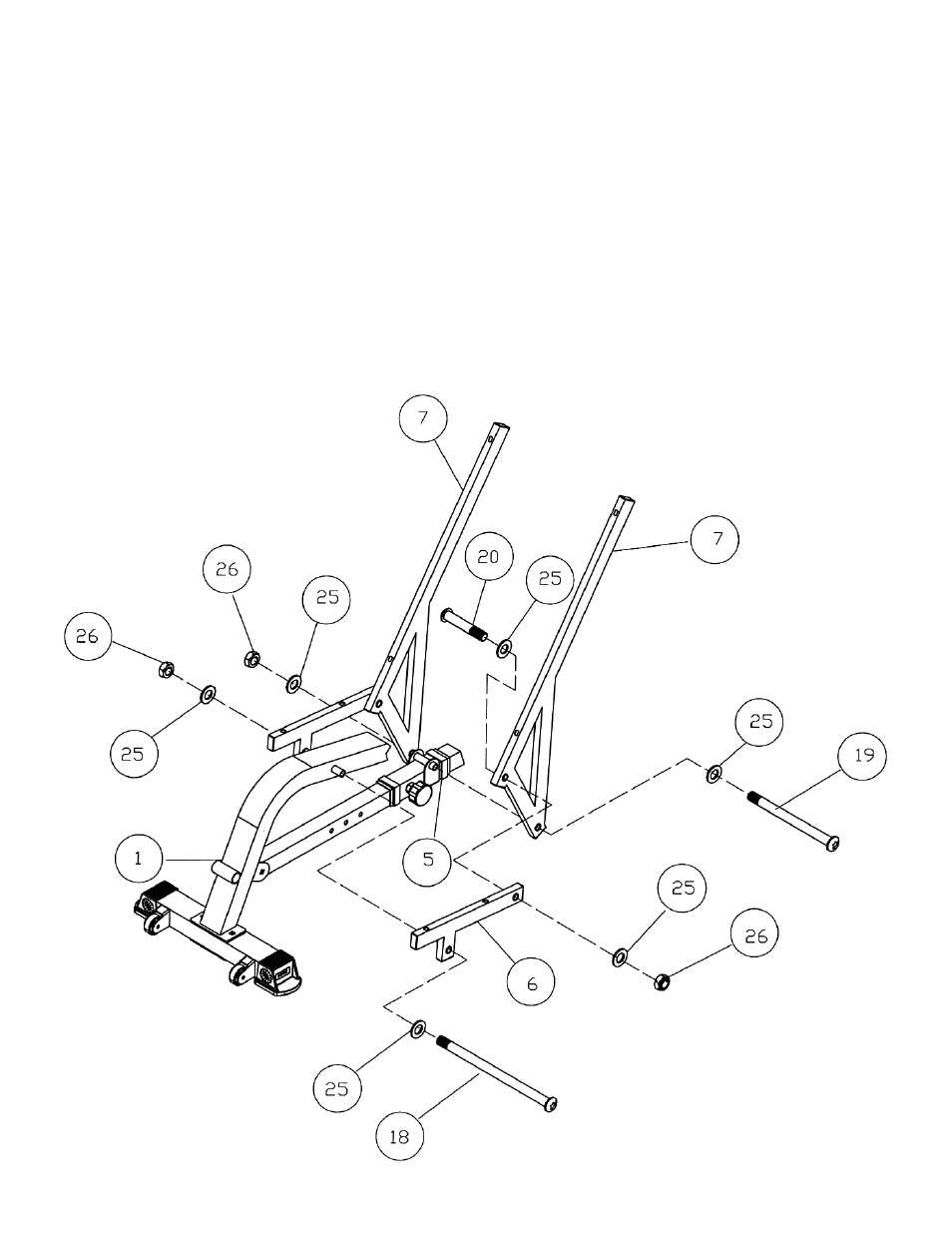

DIAGRAM 3
