STEP 2 (See Diagram 2)
A.) Slide the Sliding Block (#5) onto the Incline Adjustment Bar (#4).
B.) Attach both ends of Incline Adjustment Bar to the open brackets on the Main Frame
(#1). Secure each end with one M10 x 2 ½” Carriage Bolt (#22), Ø ¾” Washer (#27),
and M10 Aircraft Nut (#28).
C.) Use a Lock Knob (#16) to lock the desired incline position.
D.) Attach the Handle (#29) to the Main Frame. Secure it with one M10 x ¾” Allen Bolt
(#33) and Ø ¾” Washer (#27).

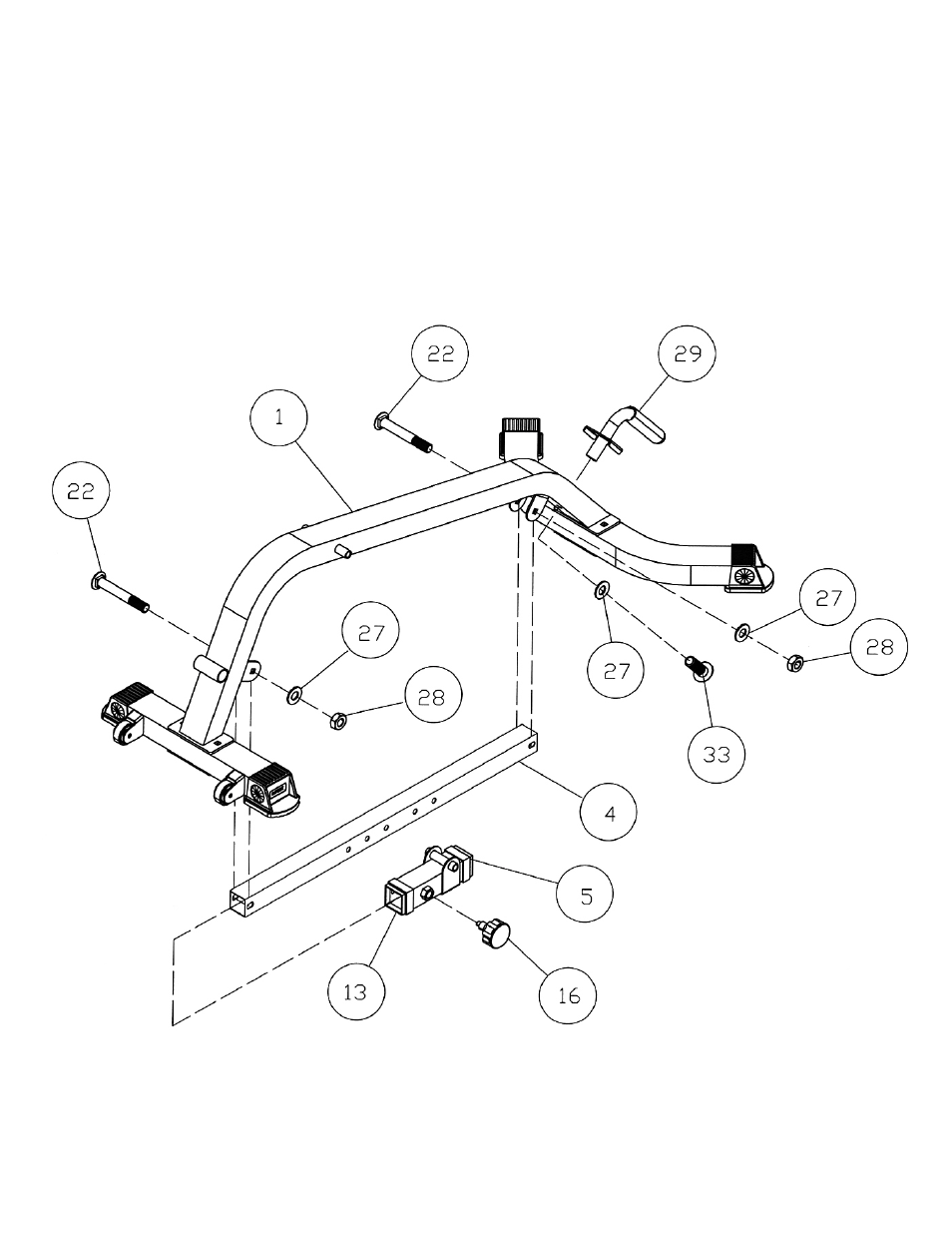

DIAGRAM 2
