ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches. NOTE: It is strongly recommended two or more people assembling this
machine to avoid possible injury.
STEP 1 (See Diagram 1)
A.) Attach the Main Frame (#1) to the Front Stabilizer (#2). Secure it with two M10 x 2 ¾”
Carriage Bolts (#21), one Bracket (#15), two
∅
¾” Washers (#27), and two M10 Aircraft
Nuts (#28).
B.) Attach the Main Frame (#1) to the Rear Stabilizer (#3). Secure it with two M10 x 2 ¾”
Carriage Bolts (#21), one Bracket (#15), two
∅
¾” Washers (#27), and two M10 Aircraft
Nuts (#28).

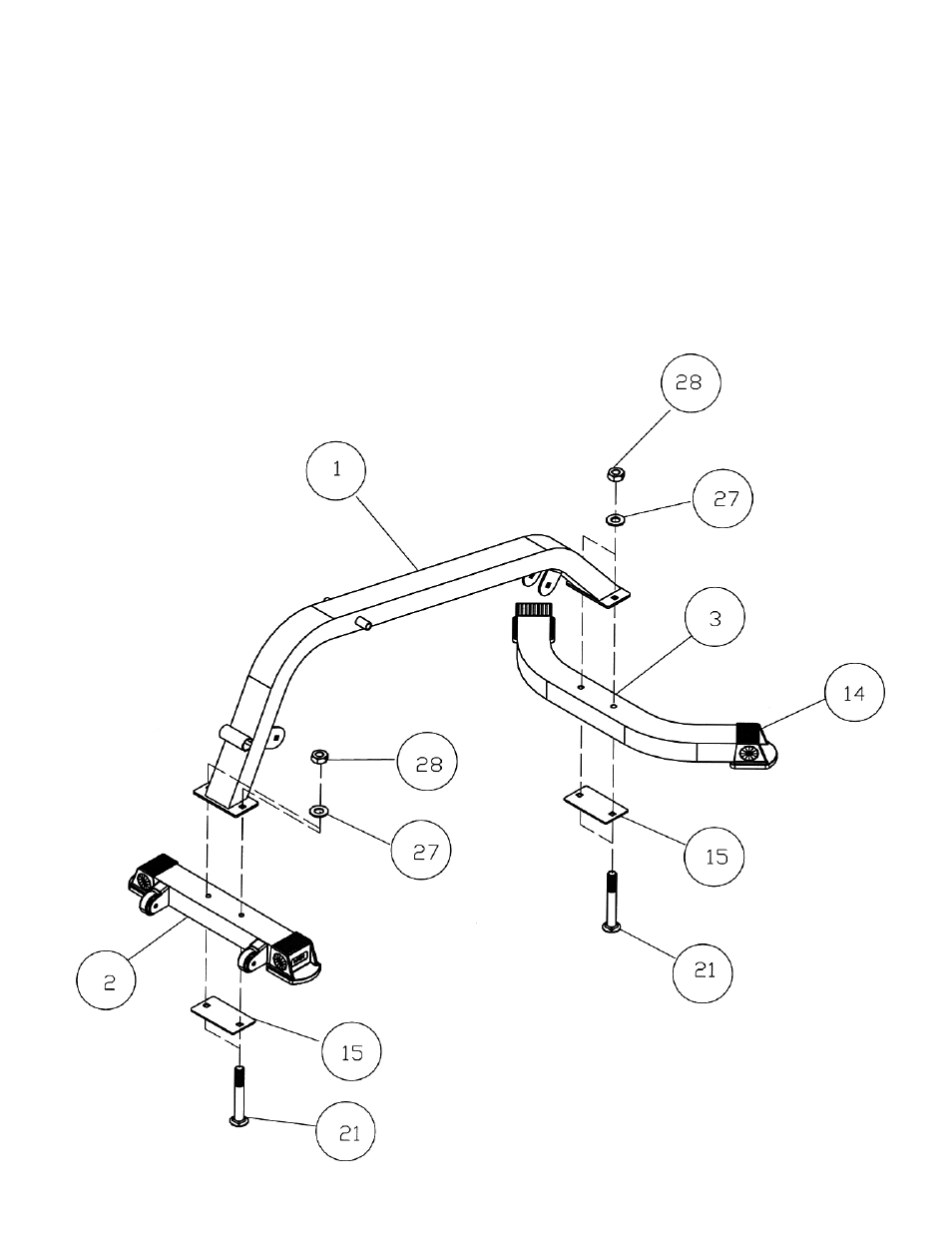

DIAGRAM 1
5
