IPSO DR50 - Manual (Page 41)

Page 41
Ref. Part No. Description
No.
1 DA--11904-0 Idler pulley 11"
2 DA-00917-0 Basket belt - non-reversing - AX70
2 DA-00497-0 Basket belt -reversing - AX71
3 FB124 Screw 5/16-18*1"
4 VSB130 Washer 5/16"
5 CA-12059-0 Idler adjusting plate
6 DA-00518-0 Bearing
7 DA-00517-0 Housing - idler bearing
8 TU2814 Lock washer 5/16"
9 C249 Hex Nut 5/16-18"
10 DA-00518-0 Bearing
Ref. Part No. Description
No.
11 C249 Hex Nut 5/16-18"
12 TU2814 Lock Washer 5/16"
13 VSB130 Washer 5/16"
14 SB-00935-0 Screw 5/16"-18 X 3"
15 VSB130 Washer 5/16"
16 VSB130 Washer 5/16"
17 TU5439 Screw 5/16-18*1"
18 DA-11711-0 Idler shaft
19 TUD0187 Key 3/16 square 2-1/2"
20 DA-11901-0 V-belt pulley
21 DA-00494-0 Belt - motor to idler pulley AX50
Non-reversing
21 DA-00523-0 Belt - motor to idler pulley AX66
Reversing

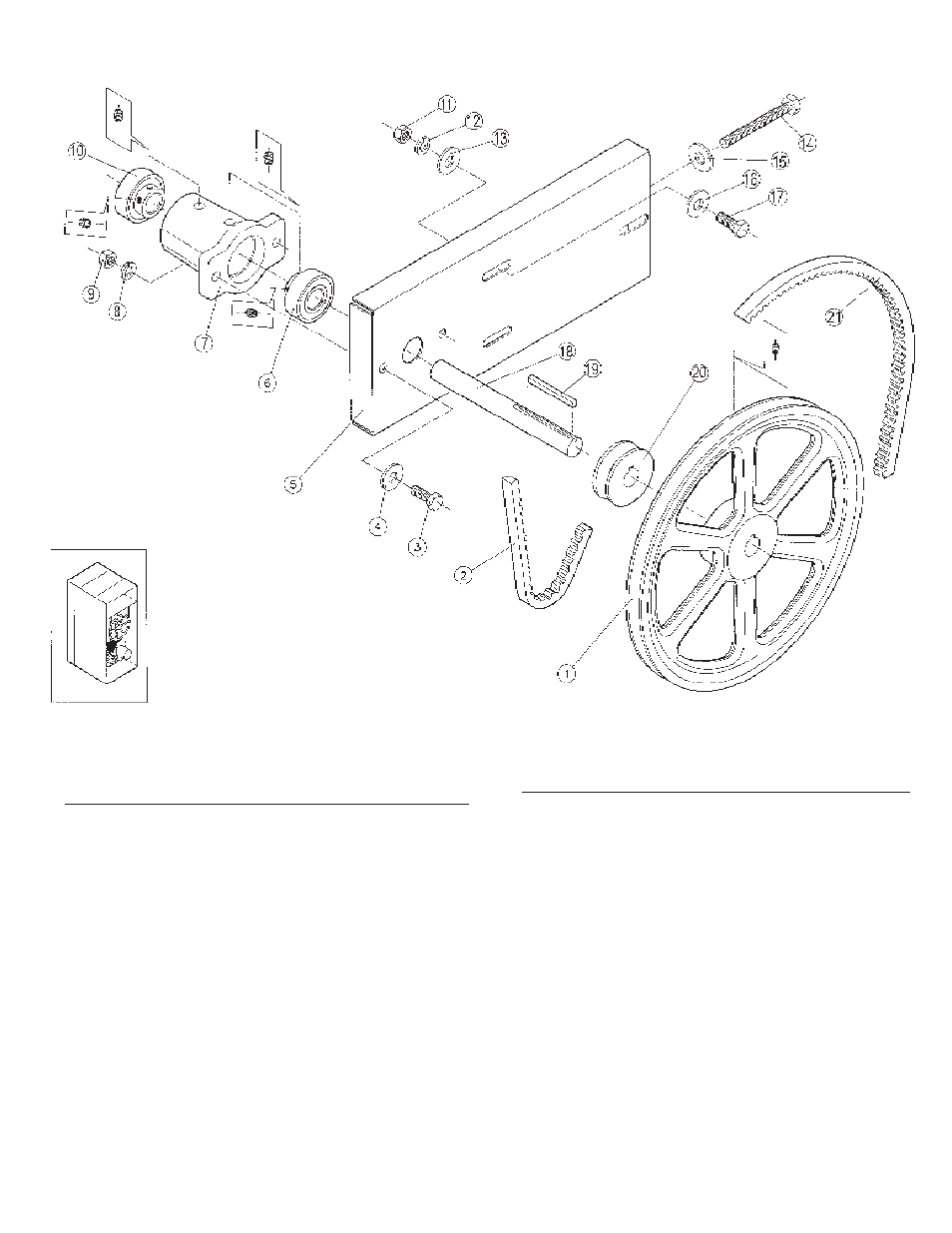

IDLER ASSEMBLY
