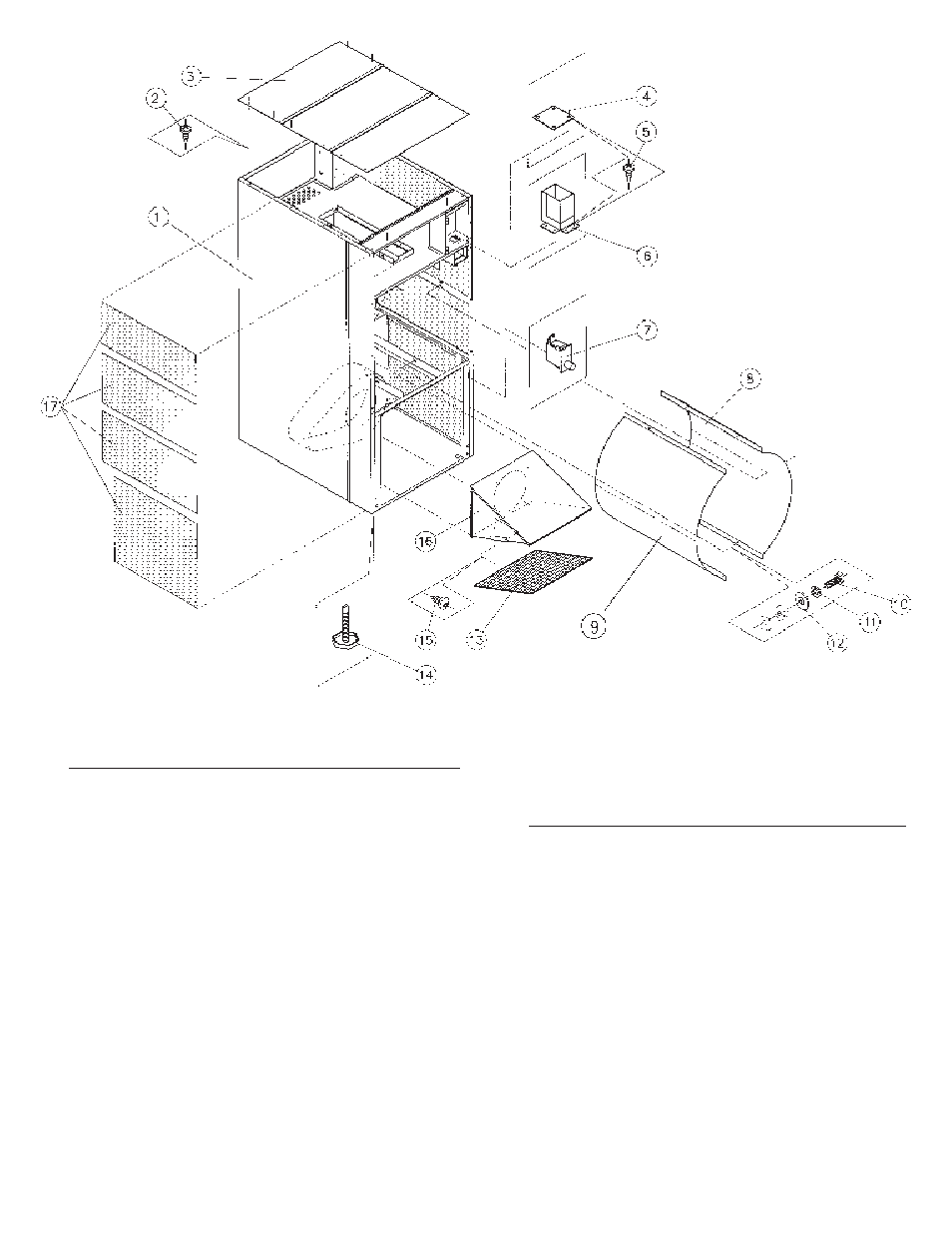

Front view – IPSO DR50 User Manual
Page 29
Page 29
Ref.
Part
No.
Description
No.
1
CSA50037WH
Jacket
fas/electric
(white)
1
CSA-50050WH
Jacket
steam
(white)
2
TU7733
Screw
self
drilling
8-18
X
1/2"
3
CA-12073-0
Top
panel
4
CSA-11546-0
Cover
plate
(non-coin
models)
5
TU7733
Screw
self
drilling
8-18
X
1/2"
6
CSA-01435-0
Coin
chute
w/a
7
EA-00650-0
Microswitch
door
8
CA-12070-0
Right
sweepsheet
9
CA-12070-0
Left
sweepsheet
(gas
&
elec)
9
CA-13083-0
Left
sweepsheet
(steam)
Ref.
Part
No.
Description
No.
10
CB36
Screw
-hex
1/4-20
X
1/2"
11
TU2846
Lockwasher
1/4"
medium
12
TU2847
Washer
1/4"
13
CA-10567-0
Lint
frame
13
CA-13033
LintScreen
14
TU3211
Leveling
bolt
15
TU7733
Screw
self
drilling
8-18
X
1/2"
16
CSA-01528-0
Support
filter
17
CSA-01425-0
Insulation
side
WMC
complete
-used
on
gas
models
only-
FRONT VIEW
