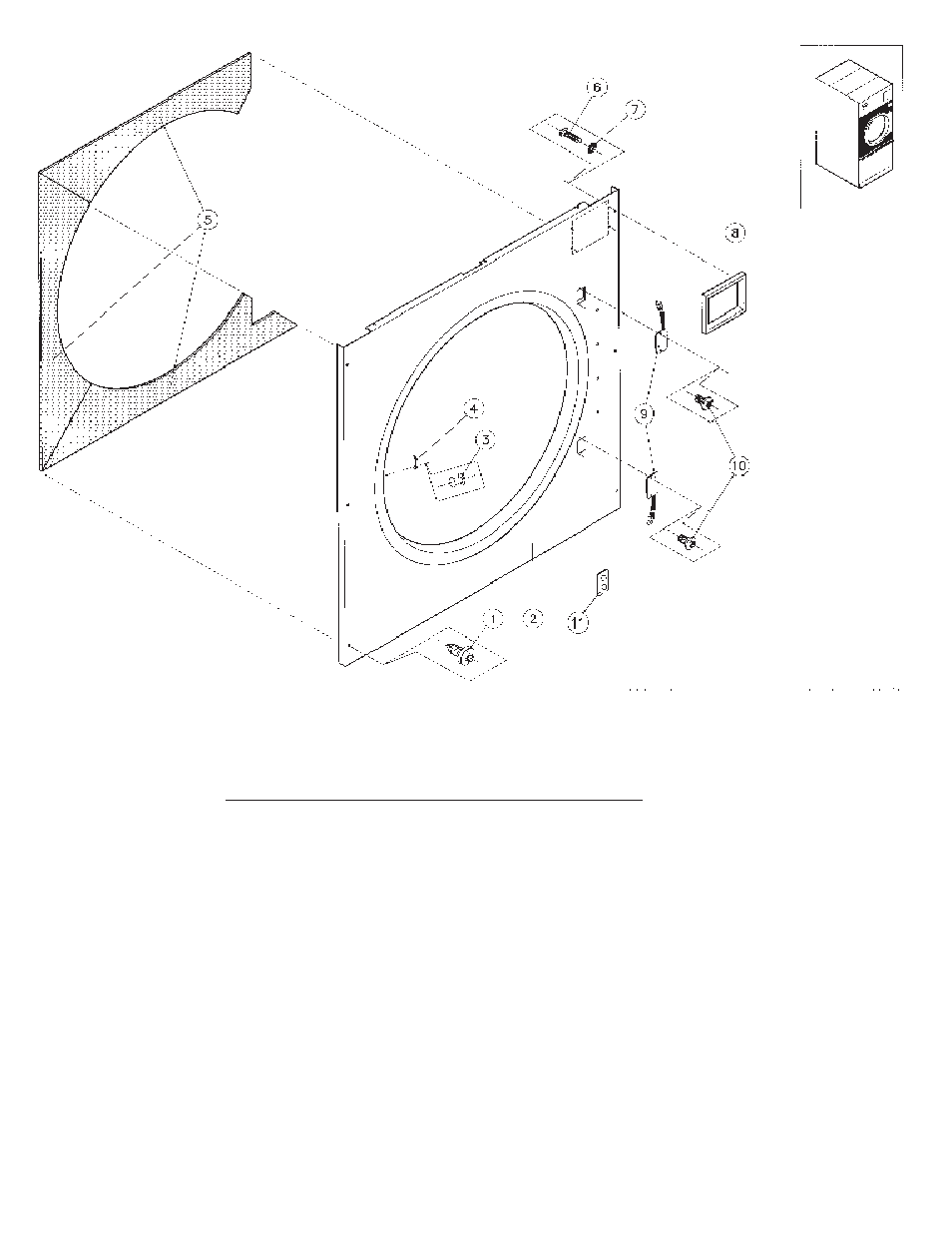

Front panel assembly – IPSO DR50 User Manual
Page 31
Page 31
Ref.
Part
No.
Description
No.
1
SB-00915-0
Screw
self
drilling
#10-16
X
5/8
2
CSA-01566WH
Front
panel,
welded
assy.-Coin
2
CSA-01565WH
Front
panel,
welded
assy-OPL
3
TU3213
Pop
Rivet
PVD
doorlocker
4
TU2876
Latch
strap
5
CA-00676
Insulation
6
SB-00924-0
Screw
4-40*3/8
taptite
7
SB-00938-0
Washer
4
external
tooth
8
CA-00699-0
Bezel
-
Coin
box
9
ESA-00862-0
Reed
switch
assy.
10
SB-009775-0
Screw
6-32*1/4
phillips
11
EA-00827-0
Mounting
plate
-
Reed
switch
FRONT PANEL ASSEMBLY
