Motor & fan assembly- non-reversing – IPSO DR50 User Manual
Page 40
Page 40
Ref.
Part
No.
Description
No.
1
DA-00494-0
Fan
motor
1/2
HP
115/208/230/60/50/1
1
DA-00447-0
Fan
motor
1/2
HP
220/380/60/50/3
2
TU2814
Lock
washer
5/16"
3
TU5439
Screw-cap
5/16-18
X
3/4"
4
DSA-00782-0
Motor
mount
w/a
-
non-rev.
5
SB-00842-0
Nut,
grip,
Tinnerman
6
SB-00836-0
Screw,
phillips,
pancake
head
7
DSA-00773-0
Fan
(12")
8
SB-00813-0
Nut
1/2-20"
-
Left
hand
thread
9
SB-00847-0
Washer
-1"
O.D.
X
.505
I.D.
10
IB140
Washer
cut
3/8"
11
VSB134
Washer
lock
3/8"
12
TU4787
Hex
nut
3/8-16"
13
DA-00460-0
Seal,
acoustical
14
SB-00847-0
Washer
-1"
O.D.
X
.505
I.D.
15
DA-00510-0
Sheave,
60
cycle,
1/2"
bore
15
DA-00511-0
Sheave,
50
cycle,
1/2"
bore
16
TU2473
Gasket
-
curved
(2
req’d)
17
TU2474
Gasket
-
straight
(2
req’d)

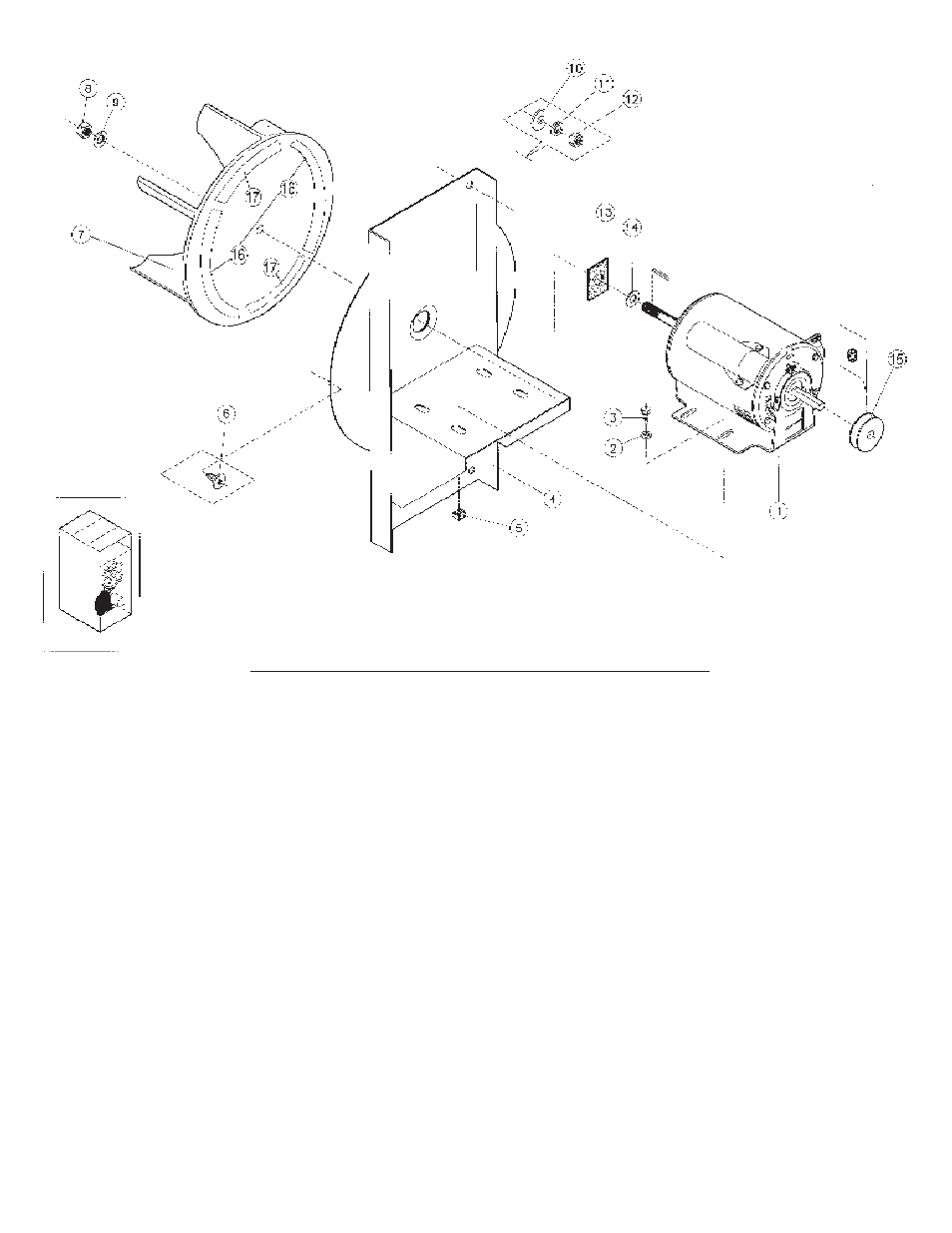

MOTOR & FAN ASSEMBLY- NON-REVERSING
