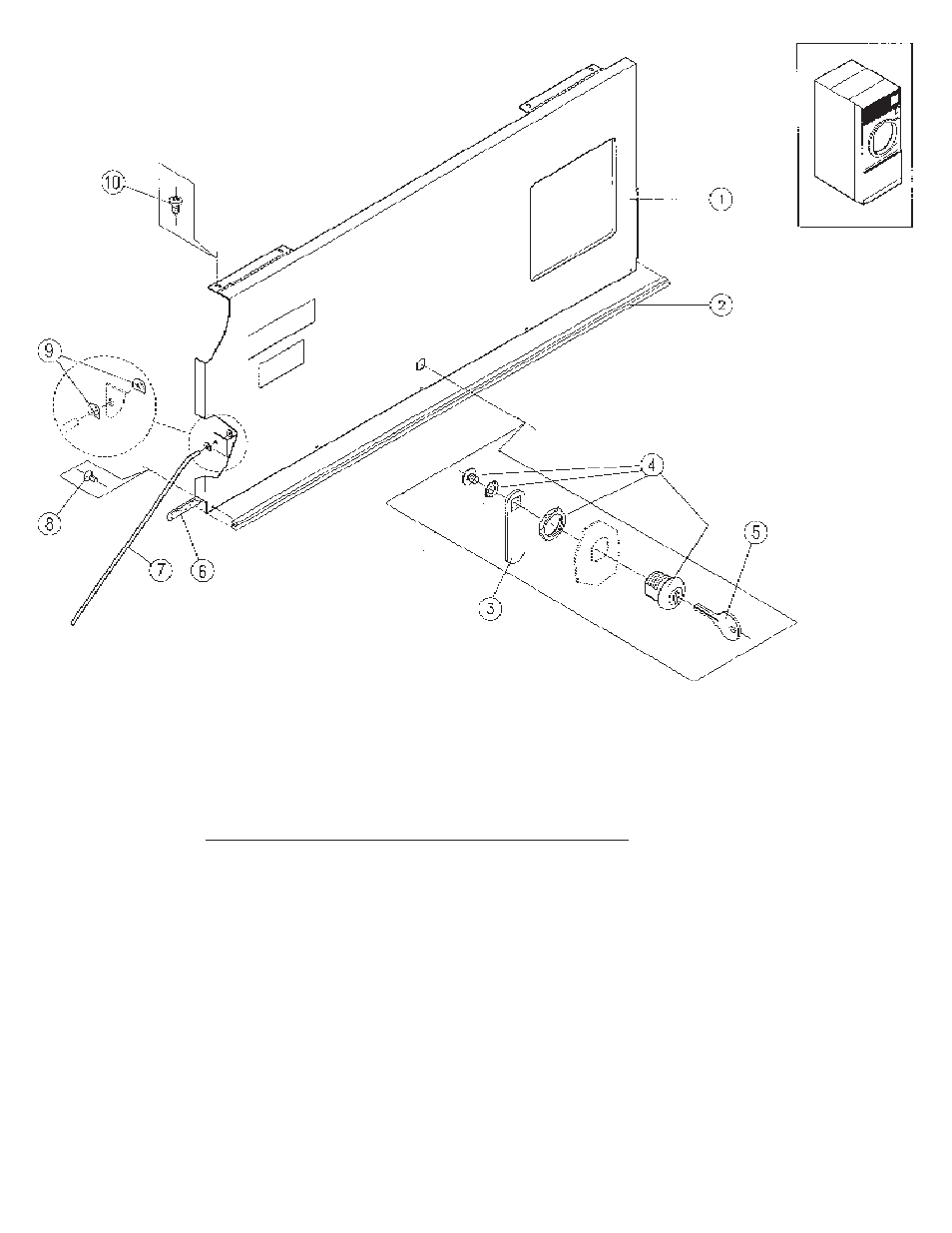

Control door assembly – IPSO DR50 User Manual
Page 30
Page 30
CSA-01423WH
Complete
control
door
assy.
Note
:
Door
rod
assy.
is
not
part
of
above
complete
assy.
Ref.
Part
No.
Description
No.
1
CSA-01424WH
Control
door
assy.
2
CA-00857-0
Trim
-
Control
door
3
CA-11941-0
Cam
lock-Control
door
4
CA-00121-0
Lock
-
Control
door
5
CA-00119-0
Key
-
Control
door
6
CA-13098-0
Gasket
7
CA-10085-0
Support
rod
8
SB-00951-0
Screw
-Phillips
#8
X
7/16
flat
hd.
9
SB-00971-0
Tinnerman
push-
on
fastener
10
TU7733
Screw
self
drilling
8-18*1/2"
CONTROL DOOR ASSEMBLY
