ASSEMBLY INSTRUCTION
Tools Required for Assembling the Machine: Two Adjustable Wrenches and
Allen Wrenches. NOTE: It is strongly recommended that this machine to be
assembled by two or more people to avoid possible injury.
STEP 1 (See Diagram 1)
A.) Insert the two Guide Rods (#5) into the holes on the Rear Stabilizer (#2). Secure
each Guide Rod with one M10 x 1” Allen Bolt (#65) and
∅
¾” Washer (#74) from
the bottom. Slide two Ø2” Rubber Bumpers (#50) onto the Guide Rods.
B.) Do not tighten Nuts and Bolts starting from until instructed to do so.
C.) Attach the rear of Main Base Frame (#1) to the Rear Stabilizer. Secure them with
two M10 x 2 ¾” Allen Bolts (#69), one 4 3/8” Curved Bracket (#21), two Ø ¾”
Washers (#74).
D.) Attach the Vertical Frame (#3) onto the Main Base Frame. Secure them with two
M10 x 2 3/8” Carriage Bolts (#61), one 5 1/8” Curved Bracket (#22), two Ø ¾”
Washers (#74), and two M10 Aircraft Nuts (#76).

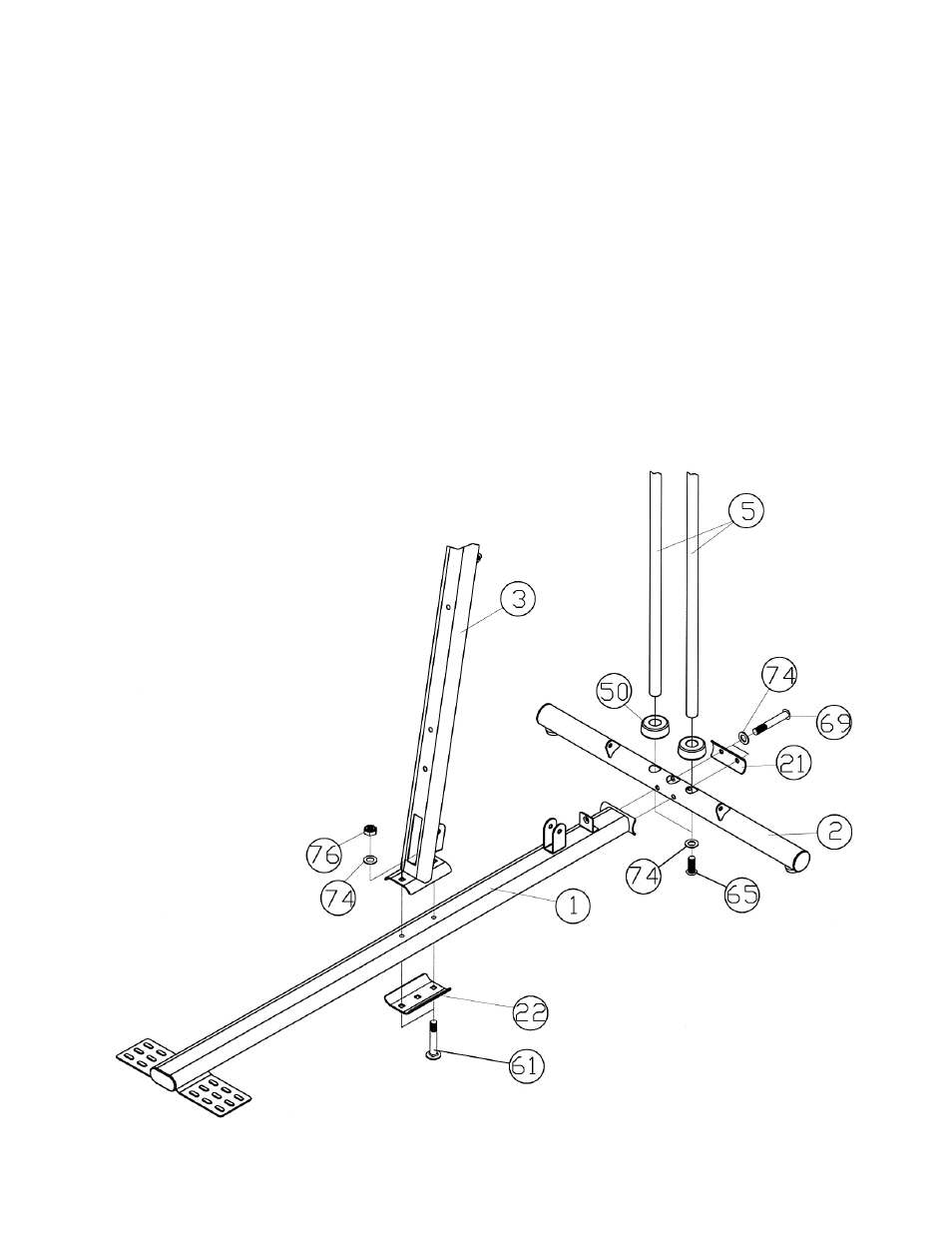

DIAGRAM 1
