BATTERY CHARGING (FOR ON-BOARD USE ONLY)

7

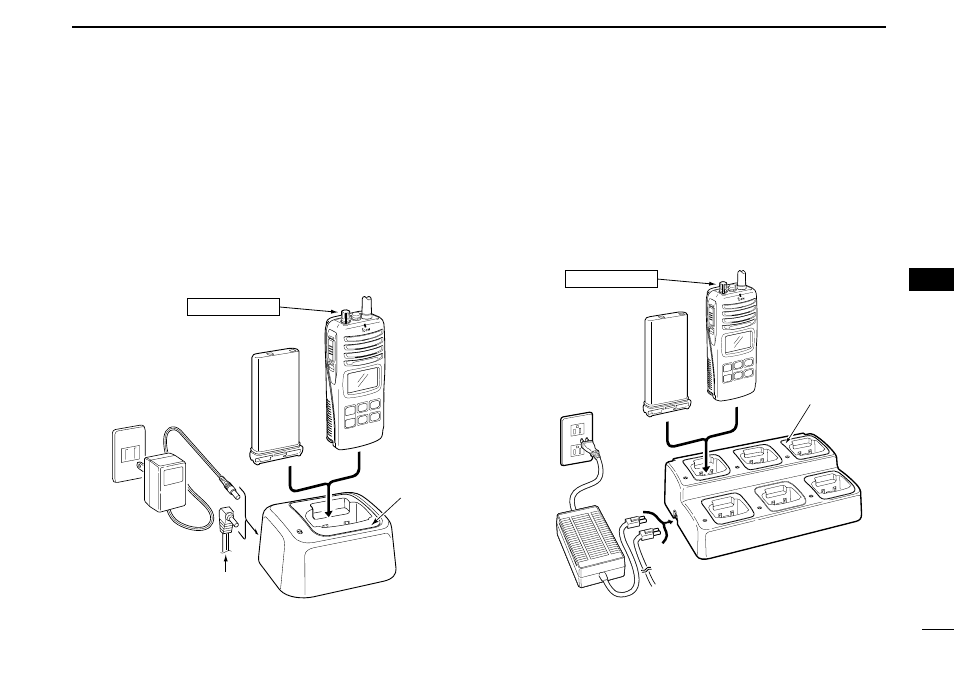

ï Rapid charging with the BC-119N+AD-109

The optional BC-119N provides rapid charging of battery
packs. The following are additionally required.
• AD-109 charger adapter
• An AC adapter (BC-145A/E)*

1

or the DC power cable

(OPC-515L/CP-17L).

*

1

Depends on version.

ï Rapid charging with the BC-121N+AD-109

The optional BC-121N allows up to 6 battery packs to be
charged simultaneously. The following are additionally re-
quired.
• Six AD-109 charger adapters
• An AC adapter (BC-124) or the DC power cable (OPC-656)

AD-109 charger
adapters are installed
in each slot.

IC-GM1600

BP-224

DC power cable (OPC-656)
(Connect with the DC power supply;
13.8 V/at least 7 A)

AC adapter

*

(Purchase

separately)

MIC

/SP

Turn power OFF

*Plug type is dependent
on version.

AD-109 charger
adapter is installed
in BC-119N.

AC adapter*

2

Optional OPC-515L (for 13.8 V power
source) or CP-17L (for 12 V cigarette
lighter socket) can be used instead of
the AC adapter.

*

2

Plug type is dependent

on version.

IC-GM1600

BP-224

MIC

/SP

Turn power OFF
