BATTERY CHARGING (FOR ON-BOARD USE ONLY)

■ Optional battery chargers

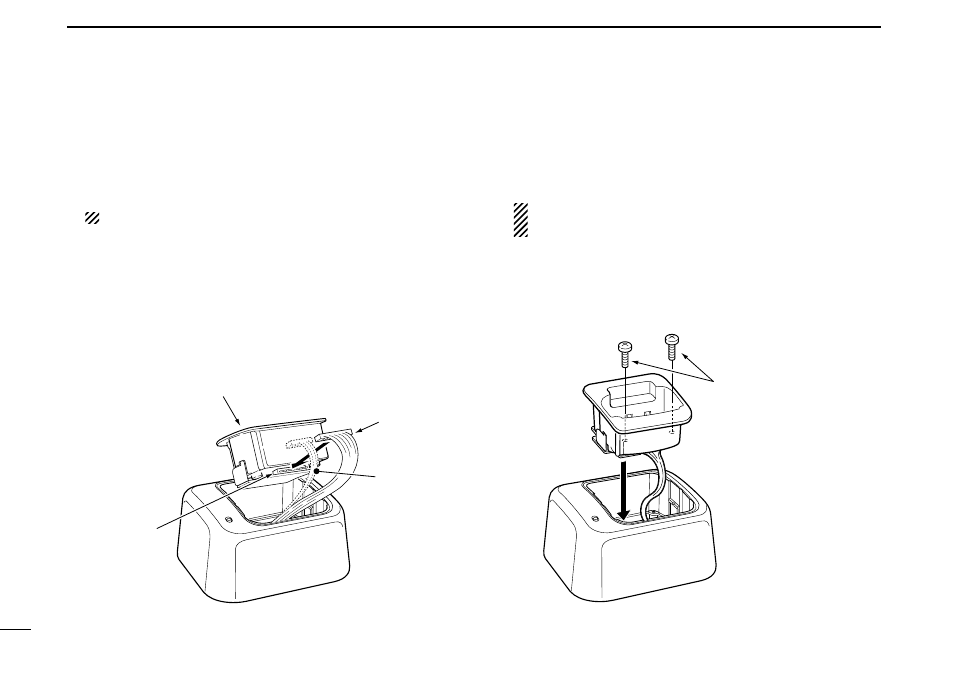

ï AD-109 installation

Connect the charger’s 10-pin connector to the AD-109
desktop charger adapter’s plug.

NOTE:

The 3-pin connector is not used.

Install the adapter into the charger in the direction of the
arrow, then use the supplied 2 screws to attach the
charger adapter to the charger.

NOTE: BE CAREFUL

not to catch the unused 3-pin

plug between the charger and the charger adapter.

Supplied screws

Desktop charger adapter

10-pin connector

Plug

Not used
(3-pin connector)
