Page 33
IMB200 LGA775 ATX MB User Manual
Hardware Description
27
USB
GND
USB
P0+
USB
P0-
USB
P1+
AGND
1
2
10
USB
Power
USB
GND
USB
P1+
USB
Power

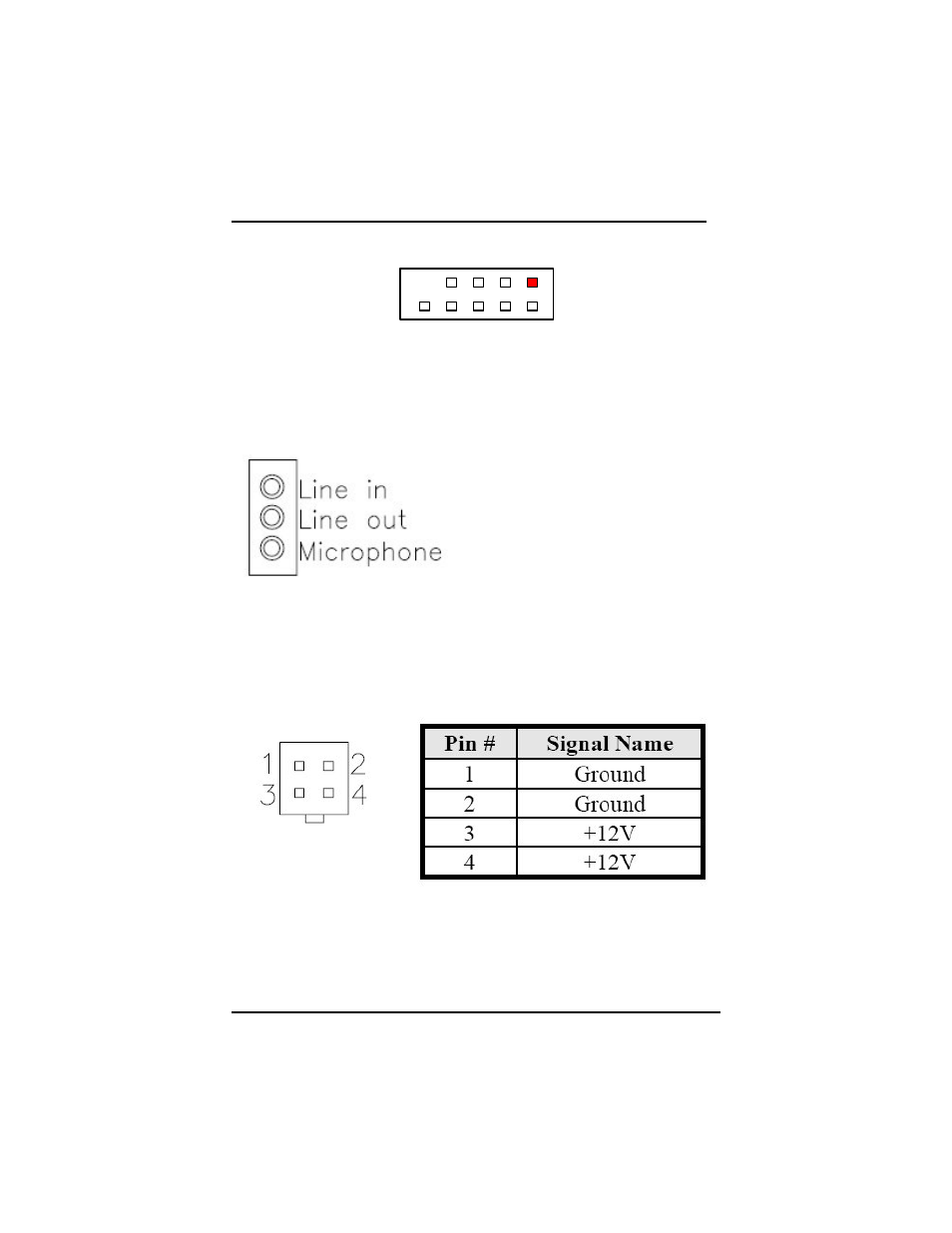

4.11 Audio Jack (Line-in/Line-Out/MIC)-CN3
4.12 ATX12V CPU Power Connector: CN14
This connector connected to an ATX12V power supply and
used for CPU Core Voltage.
Important Note: Make sure your ATX12V power supply can
provide 16A on the +12V lead and at least 1A
on the +5V standby lead (+5VSB). The
