IMB200 LGA775 ATX MB User Manual
Award Bios Utility
51
z

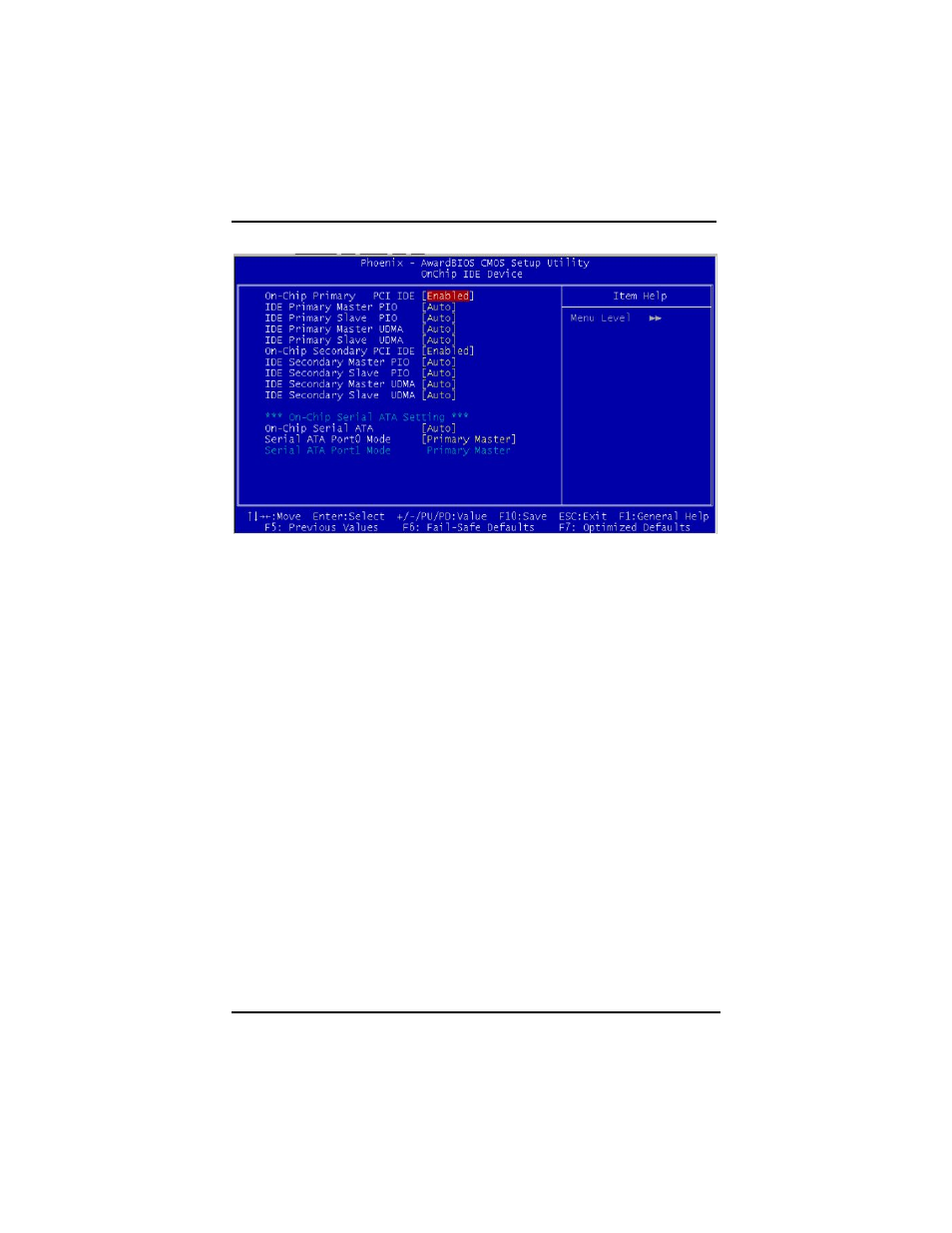

On-Chip Primary PCI IDE
This option could allow you to enable or disable the primary
and secondary IDE controller, select Disabled if you want
to add a Different hard drive controller.
z
IDE Primary Master PIO
This option could allow you to set up Master IDE interface
from PIO mode0 to PIO Mode 4
z
IDE Primary Slave PIO
This option could allow you to set up Slave IDE interface
from PIO mode0 to PIO Mode 4
z
IDE Primary Master UDMA
This option could allow you to enabled or disabled onboard
Ultra DMA mode on Primary Master
z
IDE Primary Slave UDMA
This option could allow you to enabled or disabled onboard
Ultra DMA mode on Primary Slave
z
On-Chip Secondary PCI IDE
This option could allow you to enabled or disabled onboard
Secondary PCI IDE controller
z
IDE Primary Master PIO
