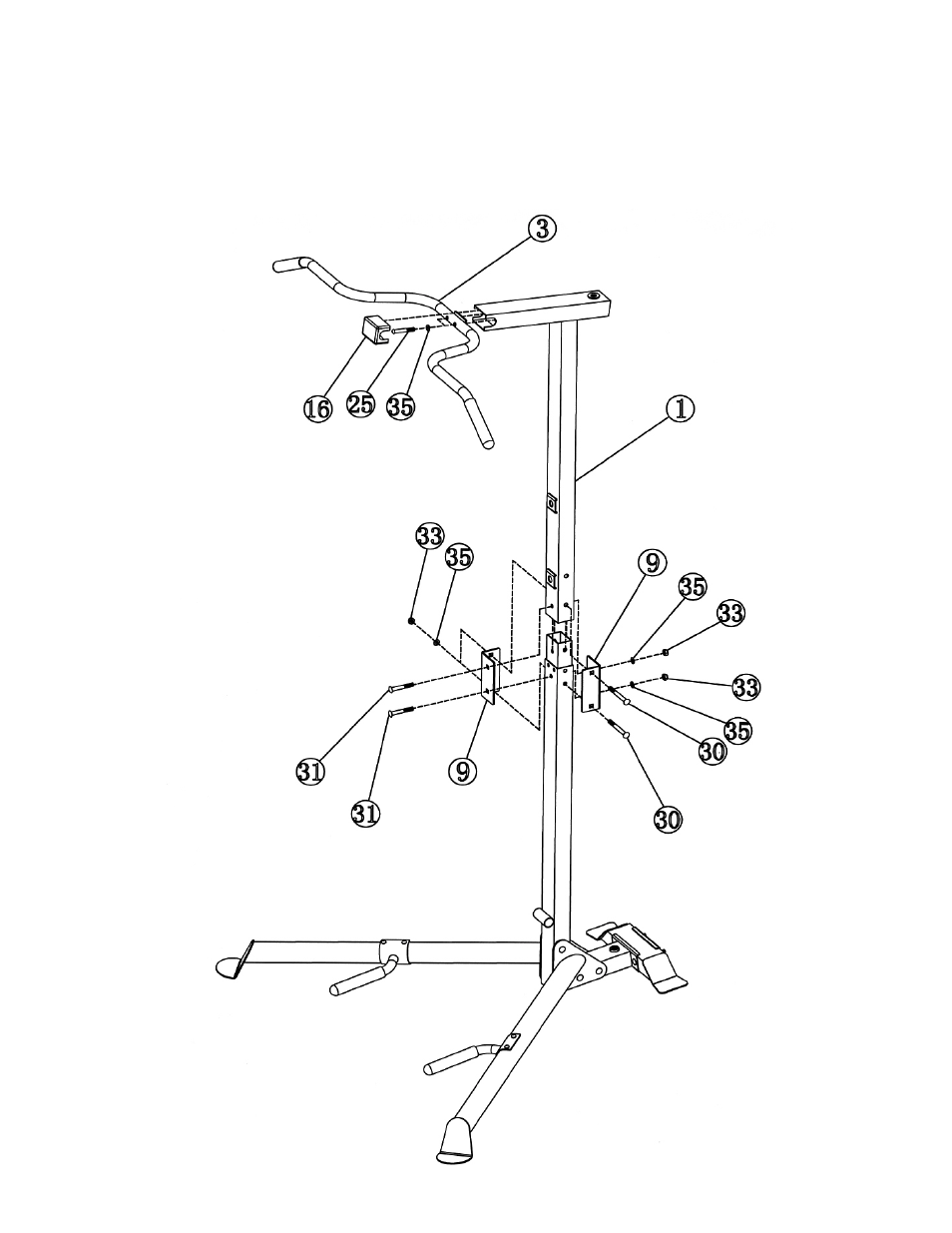

A.) Attach the Upper Vertical Frame (#1) onto the Lower Vertical Frame (#2). Secure it with two
L-shaped Brackets (#9), two M10 x 3” Carriage Bolts (#31) from the front, two M10 x 3 5/8”
Carriage Bolts (#30) from the side, four
∅
¾” Washers (#35), and four M10 Aircraft Nuts
(#33).
B.) Attach the Chin-up Bar (#3) to the front of Upper Vertical Frame. Secure it with two M10 x 2”
Allen Bolts (#25) and
∅
¾” Washers (#35). Cover the Bolts with a 2” x 2 ¾” Plastic Cover
(#16).
