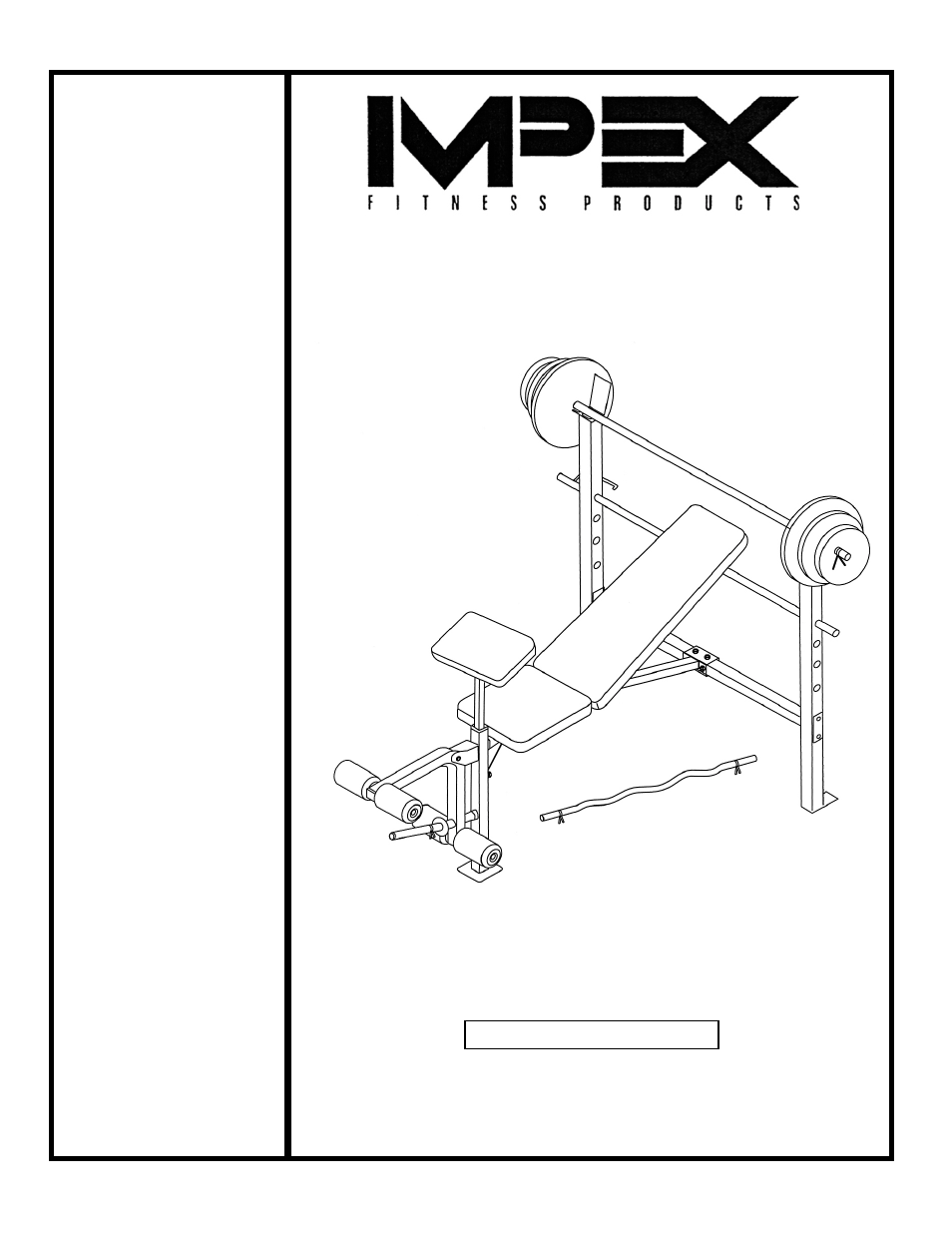

Impex CB-280 User Manual
Competitor bench cb-280, Model cb-280, Impex fitness products
Table of contents
Document Outline
- BEFORE YOU BEGIN...................................................................................…. 1
- IMPORTANT SAFETY NOTICES..................................................................…. 2
- HARDWARE PACK……….....…....................................................................…. 3
- ASSEMBLY INSTRUCTIONS........................................................................…. 4
- EXPLODED DIAGRAM………………………………………………………………. 10
- PARTS LIST...............................................................................................……. 11
- WARRANTY.................................…..............................................................…. 12
- ORDERING PARTS.......................…..............................................................… 12
- ASSEMBLY INSTRUCTION
- Attach the Leg Developer (#6) to the Front Support (#5). Secure it with one M10 x 2 3/8” Hex Bolt (#21), two Ø ¾” Washers (#31), and one M10 Aircraft Nut (#27). Do not over tighten the Bolt. Make sure the Leg Developer is able to swivel.
- Insert two Foam Tubes (#13) halfway through the holes on the Leg Developer. Push four Foam Rolls (#12) onto the Tubes from both sides.
- Place a Spring Clip (#39) onto the weight post on the Leg Developer.
- Attach the hole-side of the Backrest Supports (#7) onto both ends of the pivot on the Main Seat Support (#3). Place the other end rest against the Backrest Adjustment Bar (#11).
- Place the Backrest Board (#8) onto the Backrest Supports. Secure it with four M6 x 1 5/8” Hex Bolts (#23) and Ø ½” Washers (#25).
- Place the Seat Pad (#9) onto the Main Seat Support. Secure it with four M6 x 5/8” Hex Bolts (#22) and Ø ½” Washers (#25).
- Attach the Arm Curl Pad (#34) to the Arm Curl Stand (#42). Secure it with two M8 x ¾” Hex Bolts (#33) and Ø 5/8” Washers (#26).
- Insert the Arm Curl Stand into the top opening on the Front Support and secure it with a Lock Knob (#32).
- 20 M8 x 2 ½”Hex Bolt 4
