ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Two Adjustable Wrenches
NOTE: It is strongly recommended two or more people assembling this machine to
avoid possible injury.

STEP 1 (See Diagram 1)
A.) Connect the two Rear Upright Beams (#1) by a Cross Brace (#2) in the Mid-span.

Secure them with two M8 x 2 ½” Carriage Bolts (#20), one Bracket (#10), two

∅

5/8”

Washers (#26), and two M8 Aircraft Nuts (#24) on each end of the Cross Brace.

B.) Insert the Backrest Adjustment Bar (#11) through a selected hole to obtain desired

incline of Backrest.

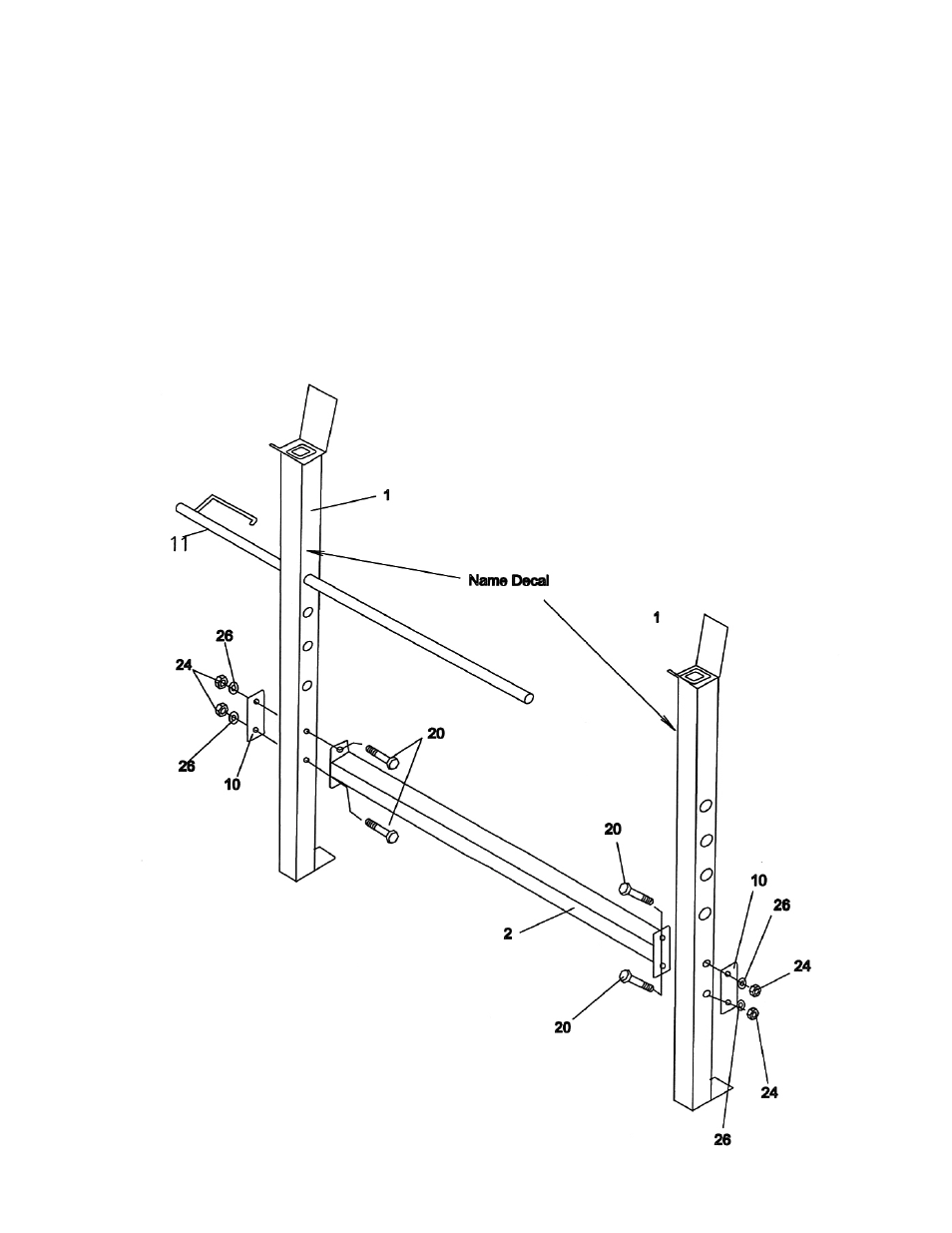

DIAGRAM 1
