STEP 2 (See Diagram 2)
A.) Attach the Main Seat Support (#3) to the Cross Brace (#2). Secure it with four M8 x 2
3/8” Hex Bolts (#18), one Bracket (#10), four Ø 5/8” Washers (#26), and four M8
Aircraft Nuts (#24). DO NOT tighten the Nuts and Bolts yet.
B.) Attach the Front Support (#5) to the Main Seat Support (#3). Secure the first hole to
the Main Seat Support with one M8 x 1 5/8” Carriage Bolt (#28), one Ø 5/8” Washer
(#26), and one M8 Aircraft Nut (#24). DO NOT tighten the Nut and Bolt yet.
C.) Attach one end of the Diagonal Support (#4) to the second hole on the Main Seat
Support. Align the holes and secure them together with one M8 x 1 ¾” Carriage Bolt
(#29), one Ø 5/8” Washer (#26), and one M8 Aircraft Nut (#24). Attach the other end
of the Diagonal Support to the Front Support (#5). Secure it with one M8 x ½” Hex Bolt
(#30) and Ø 5/8” Washer (#26).
D.) Securely tighten all Nuts and Bolts previously installed.

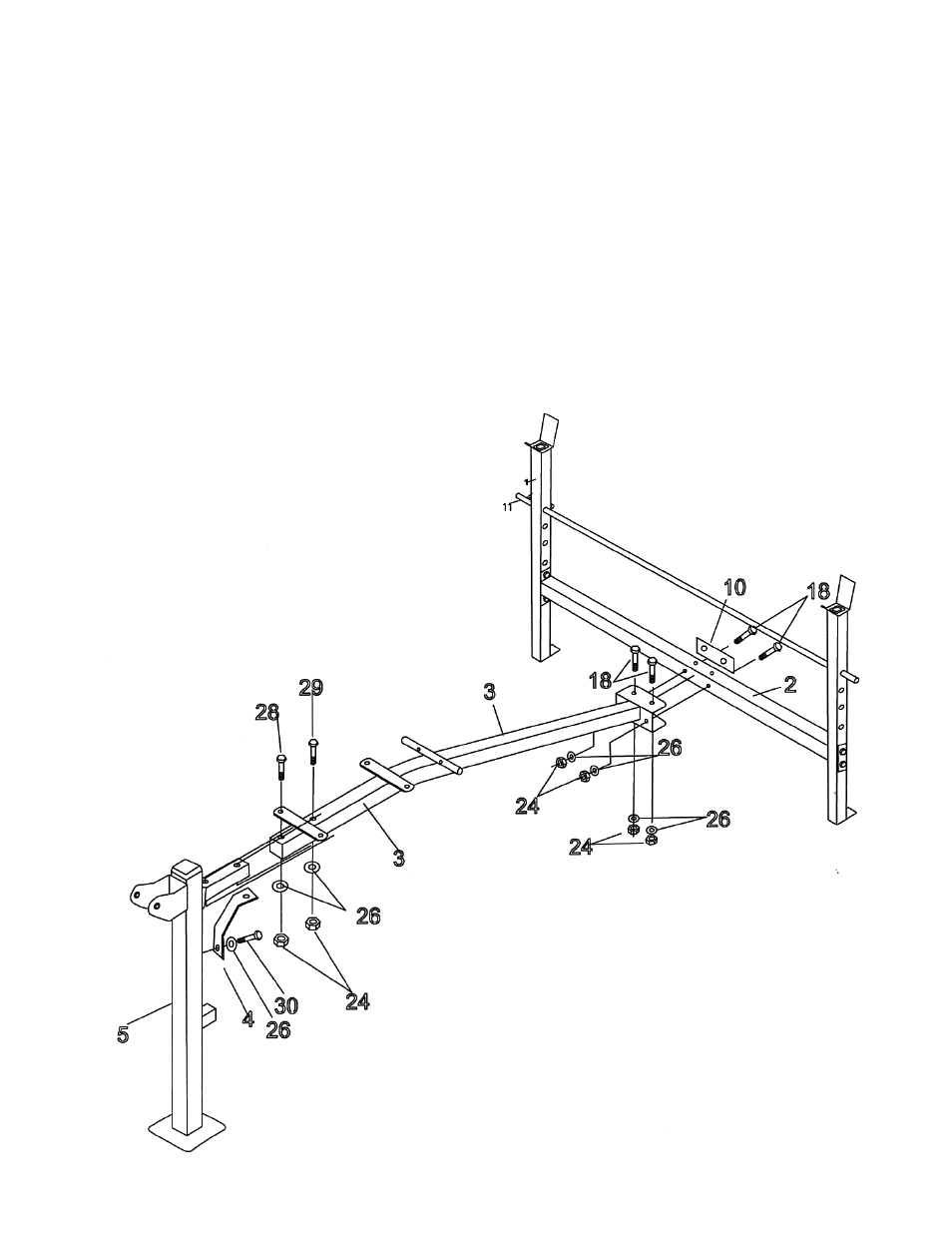

DIAGRAM 2
