Hardware Installation - 21 -
English

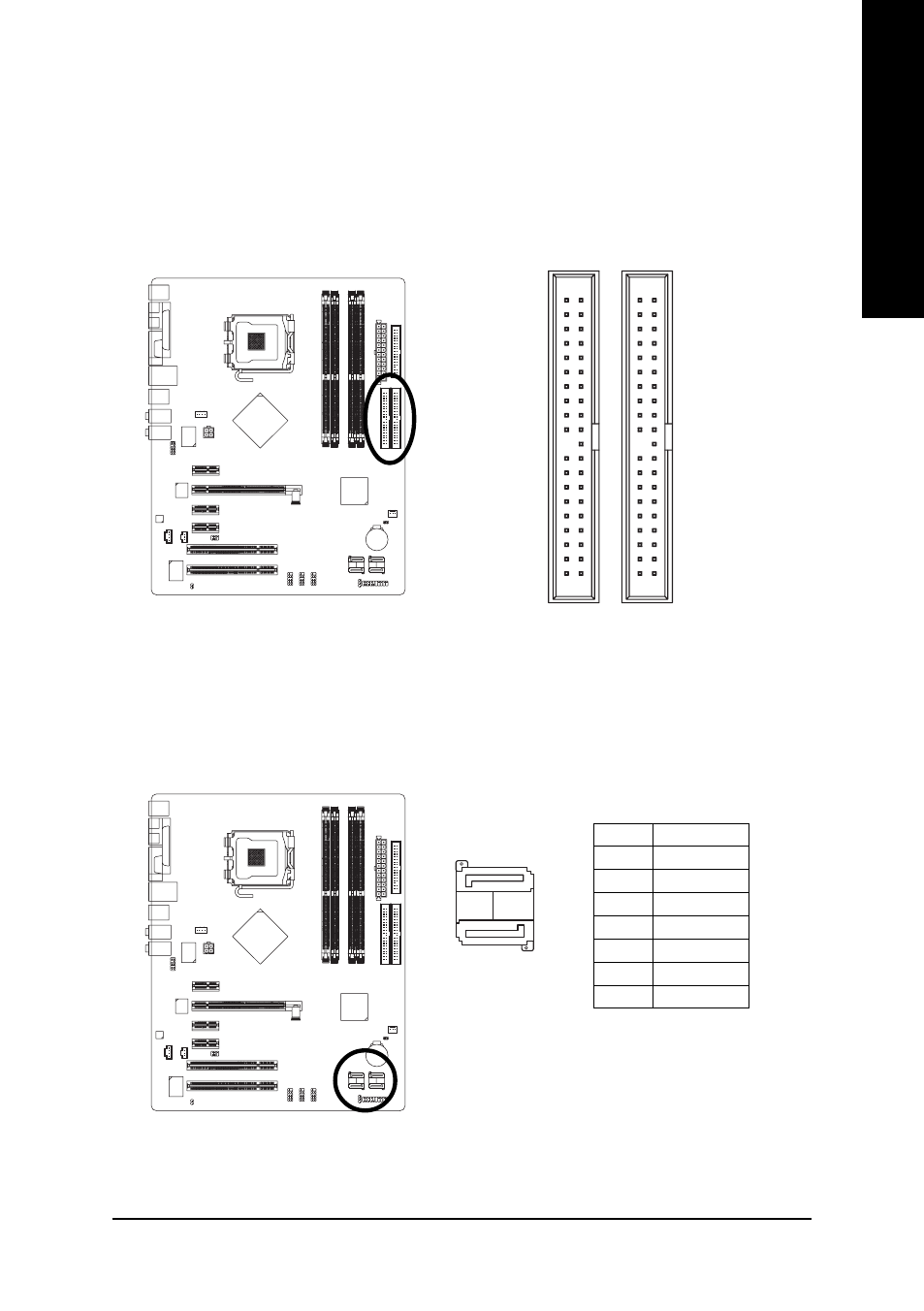

6) IDE1 / IDE2 (IDE Connector)
An IDE device connects to the computer via an IDE connector. One IDE connector can connect to
one IDE cable, and the single IDE cable can then connect to two IDE devices (hard drive or optical
drive). If you wish to connect two IDE devices, please set the jumper on one IDE device as Master
and the other as Slave (for information on settings, please refer to the instructions located on the IDE
device). To ensure that an IDE CD-ROM drive can work properly, please attach it to the IDE 1 /
IDE 2 connector.
1 2
39 40
1 7
Pin No. Definition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
7 1
7) SATAII0_1 / SATAII2_3 (SATA 3Gb/s Connectors, Controlled by MCP-04)
SATA 3Gb/s can provide up to 300MB/s transfer rate. Please refer to the BIOS setting for the SATA
3Gb/s and install the proper driver in order to work properly.
IDE2 IDE1
