MULTI-PURPOSE BENCH ASSEMBLY INSTRUCTION


Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches. NOTE: It is strongly recommended this machine be assembled by two or
more people to avoid possible injury.

STEP 1 (See Diagram 1)
A.) Attach the Main Frame (#1) to the Front & Rear Stabilizers (#2 & 3). Secure each end with

two M10 x ¾” Allen Bolts (#30) and

¾” Washers (#36). Attach a Lock Knob (#18) to the

Nut underneath the Main Frame (#1).

B.) Slide the Sliding Block (#8) onto the Incline Adjustment Bar (#9). Align the hole then

secure it with a Lock Knob (#18) to hold the Sliding Block in position.

C.) Attach the Incline Adjustment Bar (#9) to the brackets on the Main Frame (#1). Secure

each end with one M10 x 2 ½” Carriage Bolt (#29),

¾” Washer (#36), and M10 Aircraft

Nut (#38).

D.) Cover the Stabilizer ends with four 2” Stabilizer End Caps (#28).

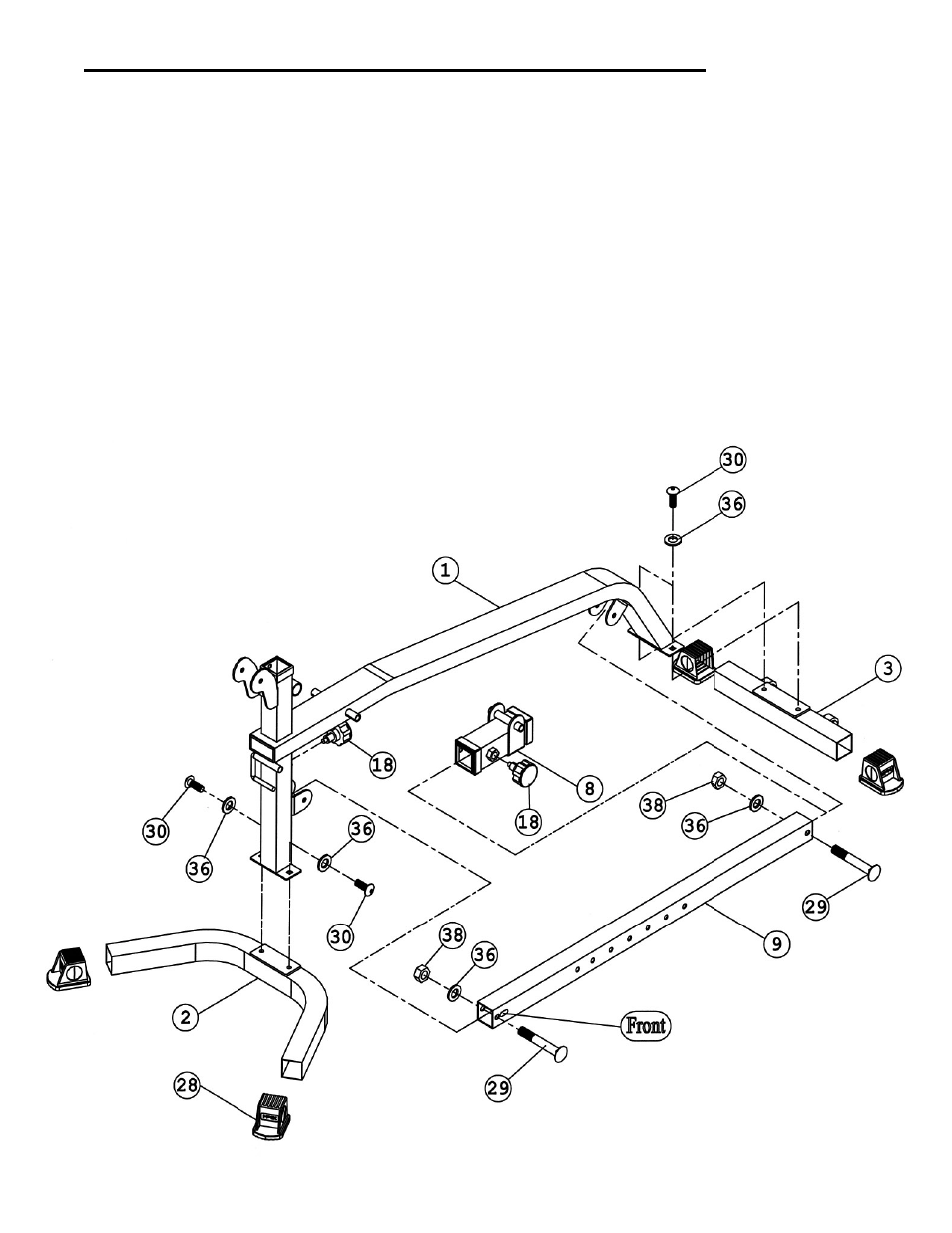

DIAGRAM 1
