6
Hardware Description
Physical Dimension
The physical dimensions of the switch is 217mm(W) x 140mm(D) x 43mm(H)
Front Panel
The Front Panel of the switch consist of 9x auto-sensing 10/100/1000Mbps Ethernet
RJ-45 ports (automatic MDI/MDIX), 2 SFP copper combo ports, and the LED indicators
are also located on the frond panel of the switch.

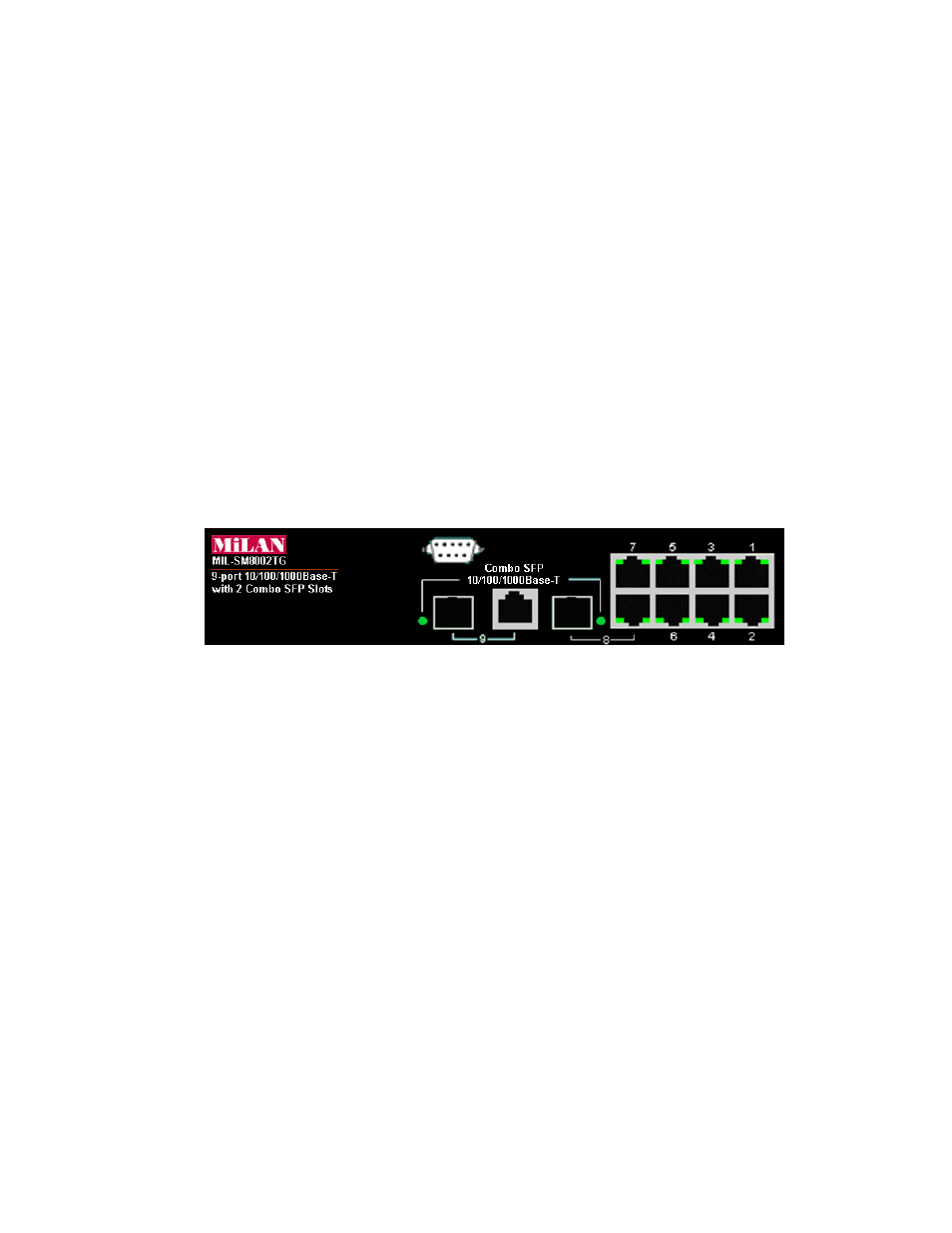

Front Panel of the switch
RJ-45 Ports (Auto MDI/MDIX): Nine 10/100/1000 auto- sensing for 10Base-T or
100Base-TX or 1000Base-T connections.
In general, MDI means connecting to another Hub or Switch while MDIX means
connecting to a workstation or PC. Therefore, Auto MDI/MDIX means that you can
connect to another Switch or workstation without changing non-crossover or
crossover cabling.
2 SFP/Giga copper combo port: 2 auto detect Giga port—UTP or fiber. Giga fiber is
the SFP module that is optional.
