1 connecting the adapter board and the drive – Maxtor D540X-4K User Manual
Page 32

Installation
3-14 Maxtor D540X-4K 20.4/40.0/60.0/80.0 GB AT
%QPPGEVKPI VJG #FCRVGT $QCTF CPF VJG &TKXG
Use a 40-pin ribbon cable to connect the drive to the board. See Figure 3-10. To
connect the drive to the board:
1. Insert the 40-pin cable connector into the mating connector of the adapter
board. Make sure that pin 1 of the connector matches with pin 1 on the cable.
2. Insert the other end of the cable into the header on the drive. When
inserting this end of the cable, make sure that pin 1 of the cable connects to
pin 1 of the drive connector.
3. Secure the drive to the system chassis by using the mounting screws, as
shown in Figure 3-11.

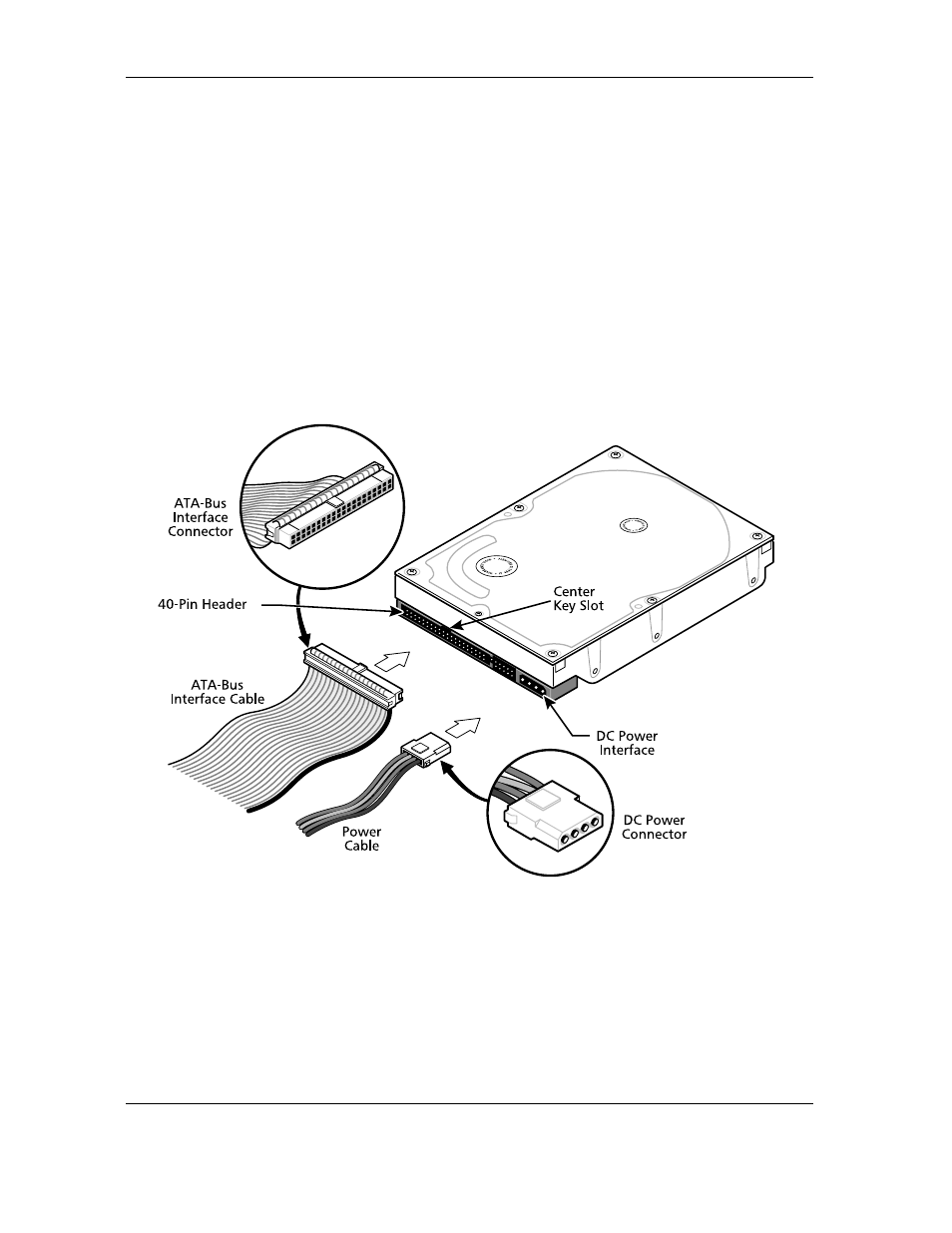

(KIWTG Drive Power Supply and ATA Bus Interface Cables
