Installation

Maxtor D540X-4K 20.4/40.0/60.0/80.0 GB AT

3-11

%NGCTCPEG

Clearance from the drive to any other surface (except mounting surfaces) must be a
minimum of 1.25 mm (0.05 inches).

8GPVKNCVKQP

The Maxtor D540X-4K 20.4/40.0/60.0/80.0 GB AT hard disk drives operate
without a cooling fan, provided the ambient air temperature does not exceed 131

(55

C) at any point along the drive form factor envelope.

%1/$+0#6+10 %100'%614 ,

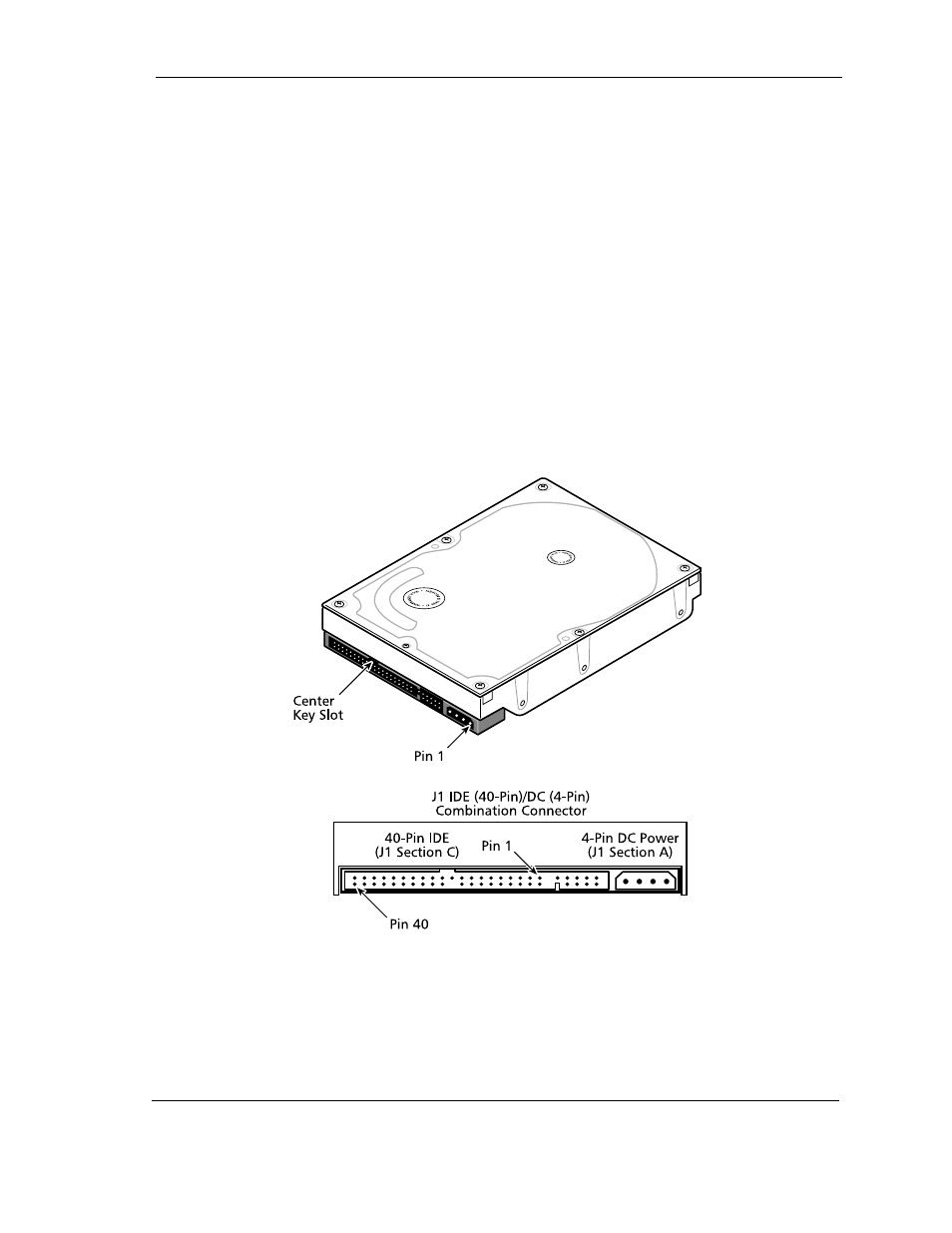

J1 is a three-in-one combination connector. The drive’s DC power can be applied
to section A. The ATA bus interface (40-pin) uses section C. The connector is
mounted on the back edge of the printed-circuit board (PCB), as shown in Figure
3-9.

(KIWTG J1 DC Power and ATA Bus Combination Connector
