MultiVOIP Quick Start Guide
38
Remote Site Administrator
3. Unpack your MultiVOIP.
4. Connect one end of the power supply to a live AC outlet
and connect the other end to the Power connection on
your MultiVOIP.
FXS E&M
FXO
PSTN
Ethernet Connection
Power Connection
10BASET
ETHERNET POWER
Voice/Fax Channel
Connections
E&M FXO FXS

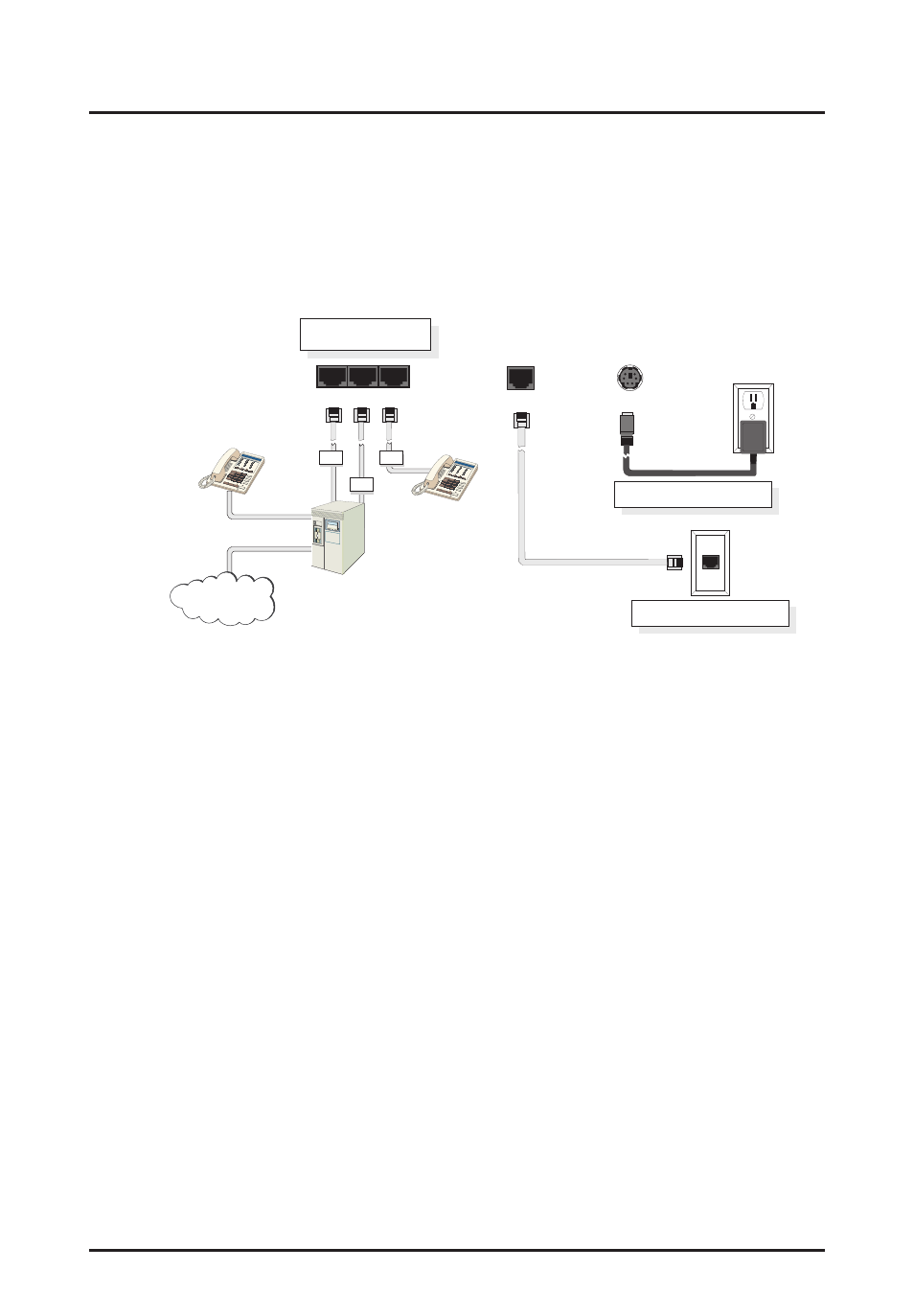

Figure 5. Remote Site Cable Connection
5. Connect a network cable to the ETHERNET 10Base-T
(RJ-45) connector on the back of your MultiVOIP.
6. If you are connecting a station device such as an analog
telephone, a fax machine, or a Key Telephone System
(KTS) to your MultiVOIP, connect the smaller end of a
special adapter cable (supplied) to the Voice/Fax Channel
1 FXS connector on the back of the MultiVOIP and the
other end to the station device.
If you are connecting a PBX extension to your MultiVOIP,
connect the smaller end of a special adapter cable
(supplied) to the Voice/Fax Channel 1 FXO connector on
the back of the MultiVOIP and the other end to the PBX
extension.
If you are connecting an E&M trunk from a telephone
switch to your MultiVOIP, connect one end of an RJ-45
phone cord to the Voice/Fax Channel 1 E&M connector
