29
Configure Client MultiVOIPs
Configuring Your Client MultiVOIPs
If you are installing a MultiVOIP behind a firewall, you need to
add the following UDP ports to your firewall.
Q.931 Signaling, Ch1 [900] Q.931 Signaling, Ch2 [902]
Status [5000]
Ch1 RTP [5004] Ch1 RTCP [5005]
Ch2 RTP [5006] Ch2 RTCP [5007]
Refer to your firewall user documentation to enter and open
these ports.
1. Disconnect the PC from the command port of the Host
MultiVOIP and connect it to the command port on the
Client MultiVOIP.

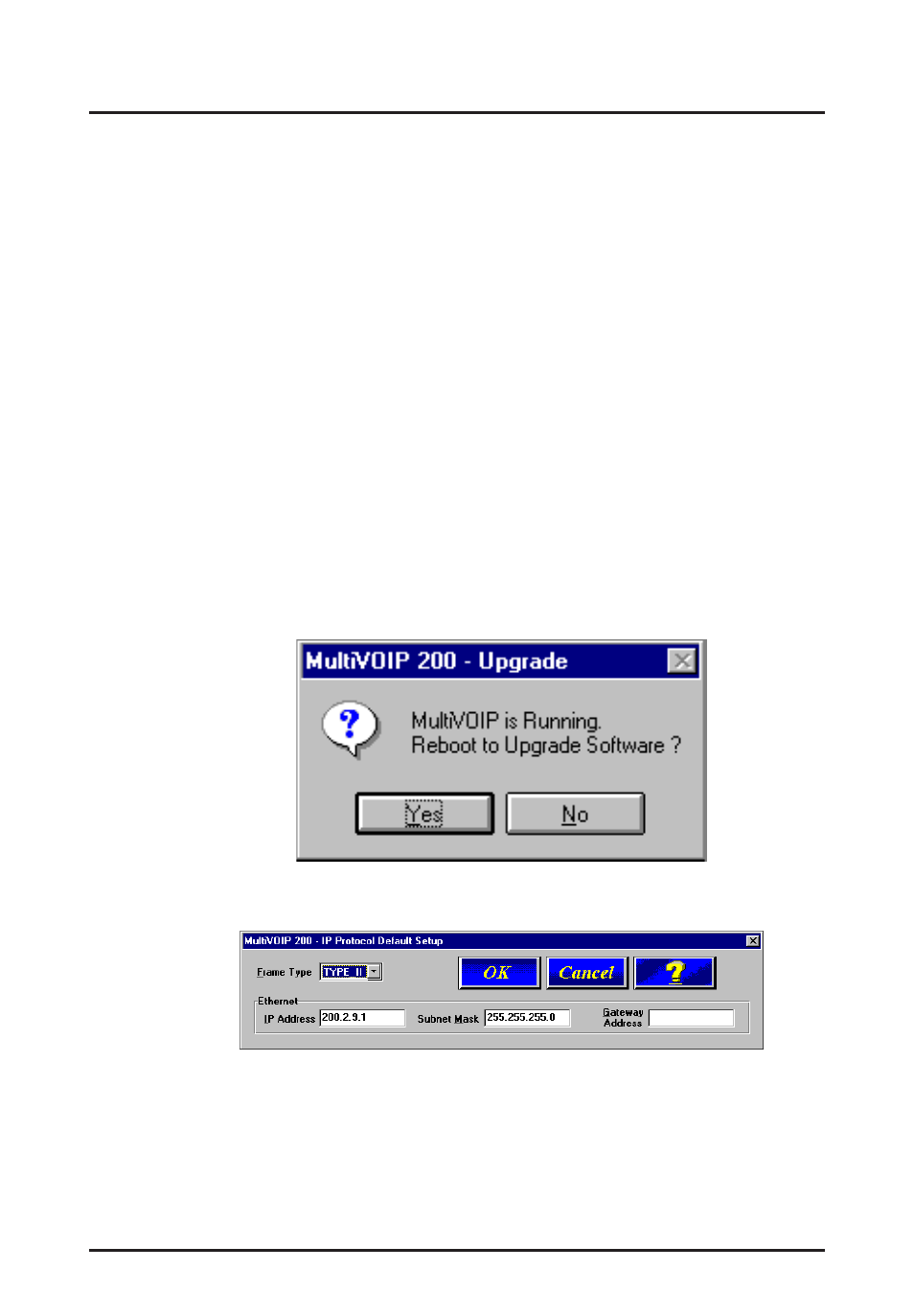

2. From your desktop, click Start | Programs I MultiVOIP I
Upgrade Software. The following dialog box displays.
3. Click Yes. The IP Protocol Default Setup dialog box
displays.
The default Frame Type is TYPE_II. If this does not match
your IP network, select the Frame Type from the Frame
Type list. The Frame Type choices are TYPE_II and
SNAP.
