Mercedes-Benz 2005 G 500 - Manual (Page 339)

339
Practical hints
Replacing bulbs

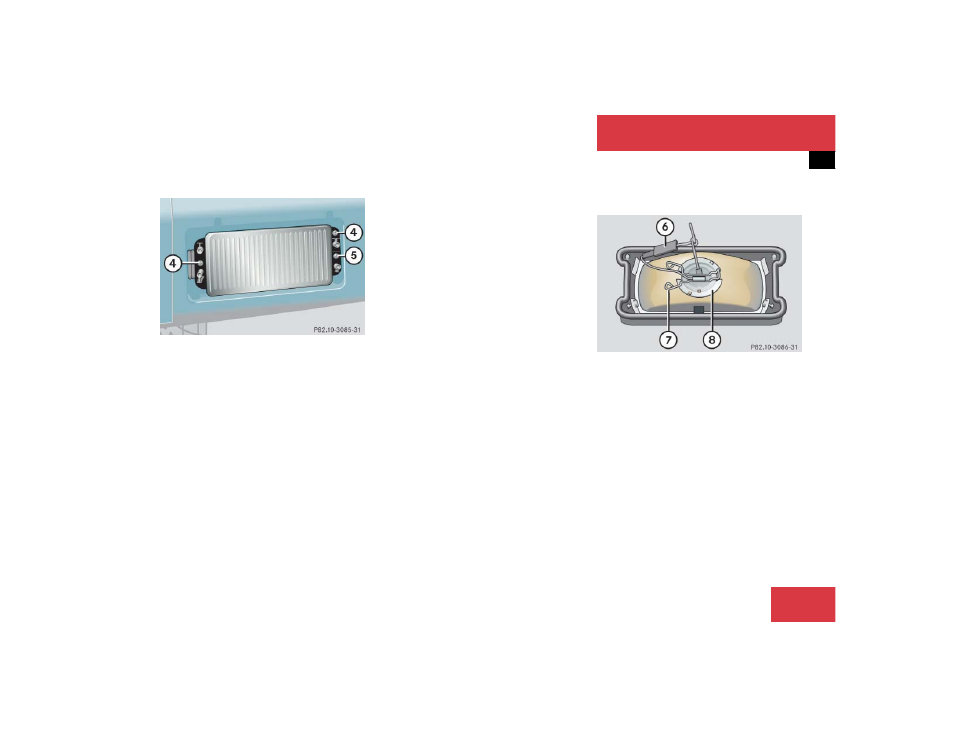

4 Securing screw (front fog lamp)
5 Adjusting screw (front fog lamp)
Removing
̈ Loosen and remove securing
screws
1.
̈ Remove front fog lamp trim panel 2
and seal.
̈ Loosen and remove front fog lamp-se-
curing screws
4.
̈ Remove front fog lamp 3.
Installing
̈ Insert front fog lamp 3 and install and
tighten front fog lamp-securing
screws
4.
̈ Reinstall seal and front fog lamp trim
panel
2.
̈ Install and tighten securing screws 1.
Front fog lamp bulb
6 Electrical connector
7 Retainer spring
8 Bulb socket
̈ Pull off electrical connector 6.
̈ Unclip retainer spring 7.
̈ Pull out bulb socket 8.
̈ Insert the new bulb so that the base
locates in the recess on the holder.
̈ Clip in retainer spring 7.
̈ Plug electrical connector 6 together.
