330
Practical hints
Brush guard*

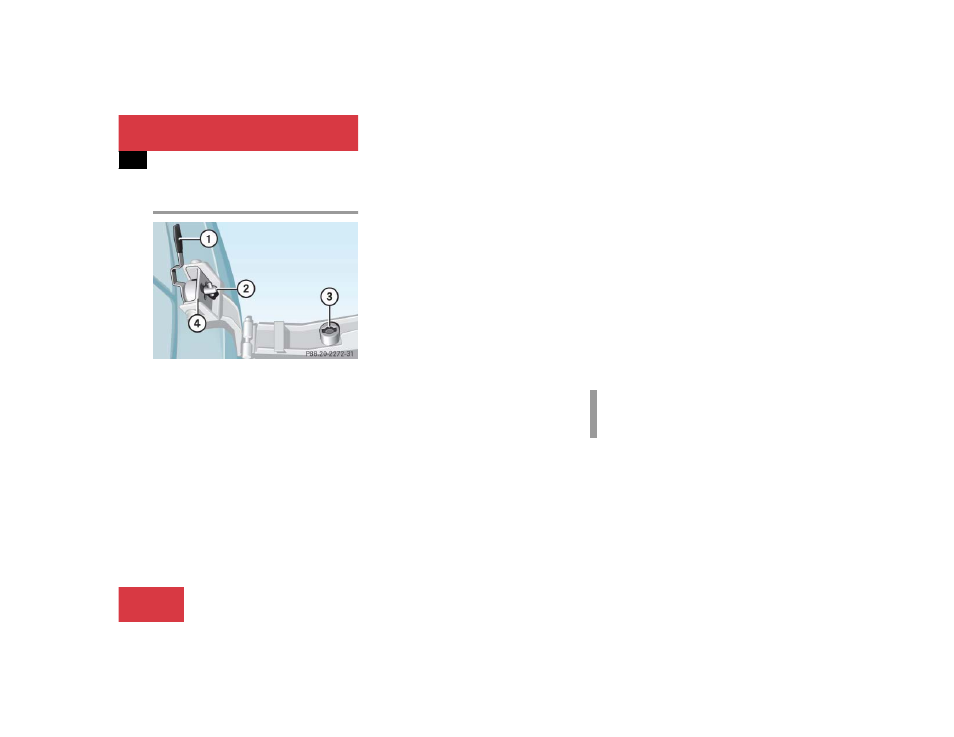

Lowering and raising brush guard
1 Locking and unlocking handle
2 Quick lock
3 Lock
4 End stop joint
Lowering
̈ While holding brush guard firmly, open
quick lock
2 using locking and unlock-
ing handle 1.
̈ Gently lower brush guard until it
reaches its fully lowered position.
Raising and securing
̈ Flip up brush guard until it contacts end
stop joint
4.
Quick lock stop pin 2 must engage
the cross slot recess in lock 3.
̈ Now turn quick lock 2 so that quick
lock makes contact with end stop
joint
4.
̈ Lock quick lock 2 on both sides of
brush guard using locking and unlock-
ing handle
1.
!
Make sure both quick stop pins 2 are
seated fully in lock 3.
