MultiVOIP Quick Start Guide
46
Configuring Your Slave MultiVOIP 400/800s
If the Proprietary Phone Book option is selected in the Phone
Directory Database dialog box, you will need to configure all
H.323 endpoints as “Slave” units. For example the MultiVOIP
400/800 at the company’s London office would need to be
configured as a “Slave”.
CAUTION: If you are installing a MultiVOIP 400/800 behind a
firewall, the firewall must support H.323. Refer to your firewall
user documentation to enable H.323 support.
1. Disconnect the PC from the Command port of the Master
MultiVOIP 400/800 and connect it to the Command port on
the Slave MultiVOIP 400/800.
2. Win 3.1 users - from the Program Manager, click the
MultiVOIP 800 Configuration icon in the MultiVOIP 400/

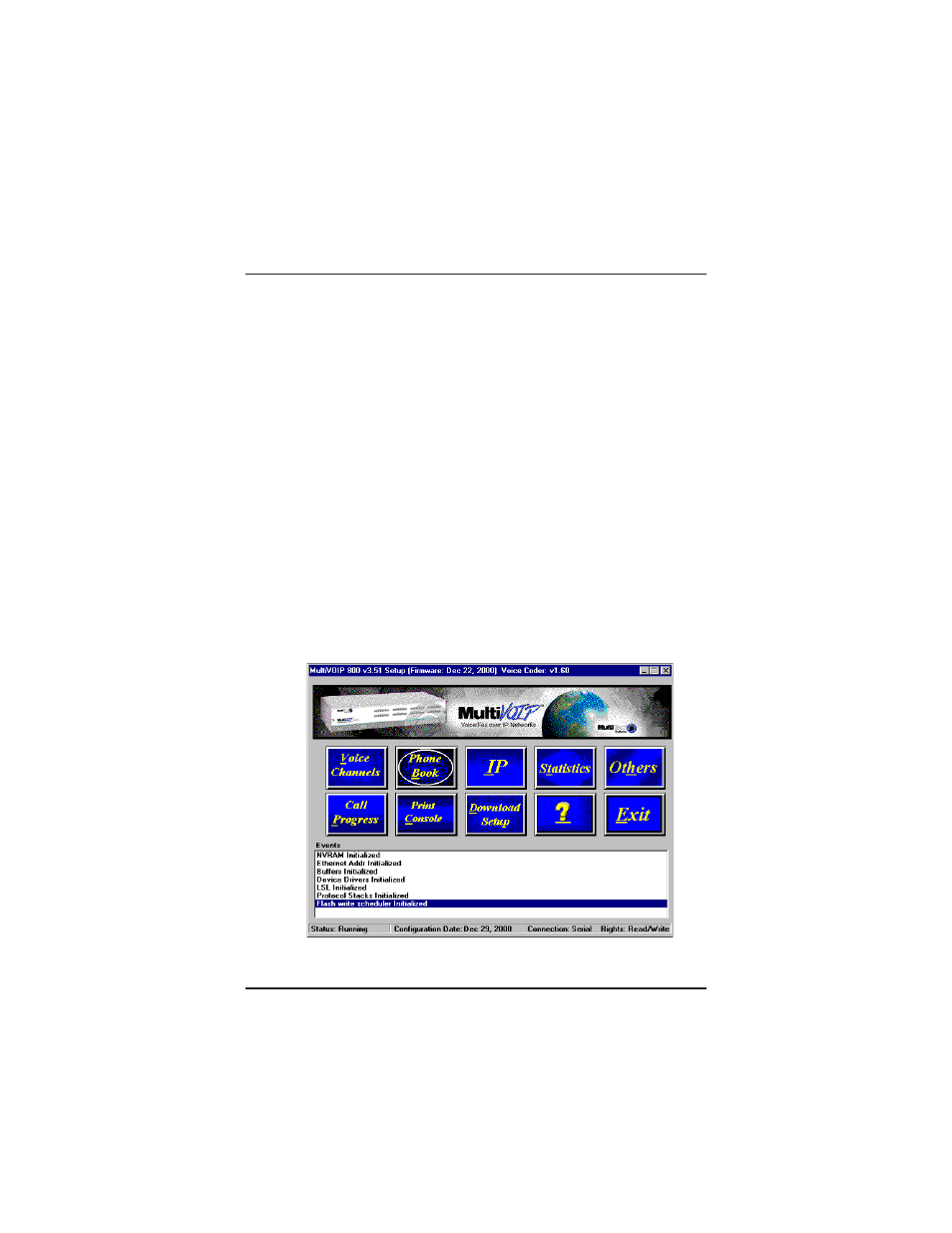

800 Program Group. The Main menu displays.
Win2000/NT/98/95 users - from your desktop, click
Programs I MultiVOIP 800 I MultiVOIP 800
Configuration. The Main menu displays.
3. Click IP to display the IP Setup dialog box.
