MultiVOIP Quick Start Guide
36

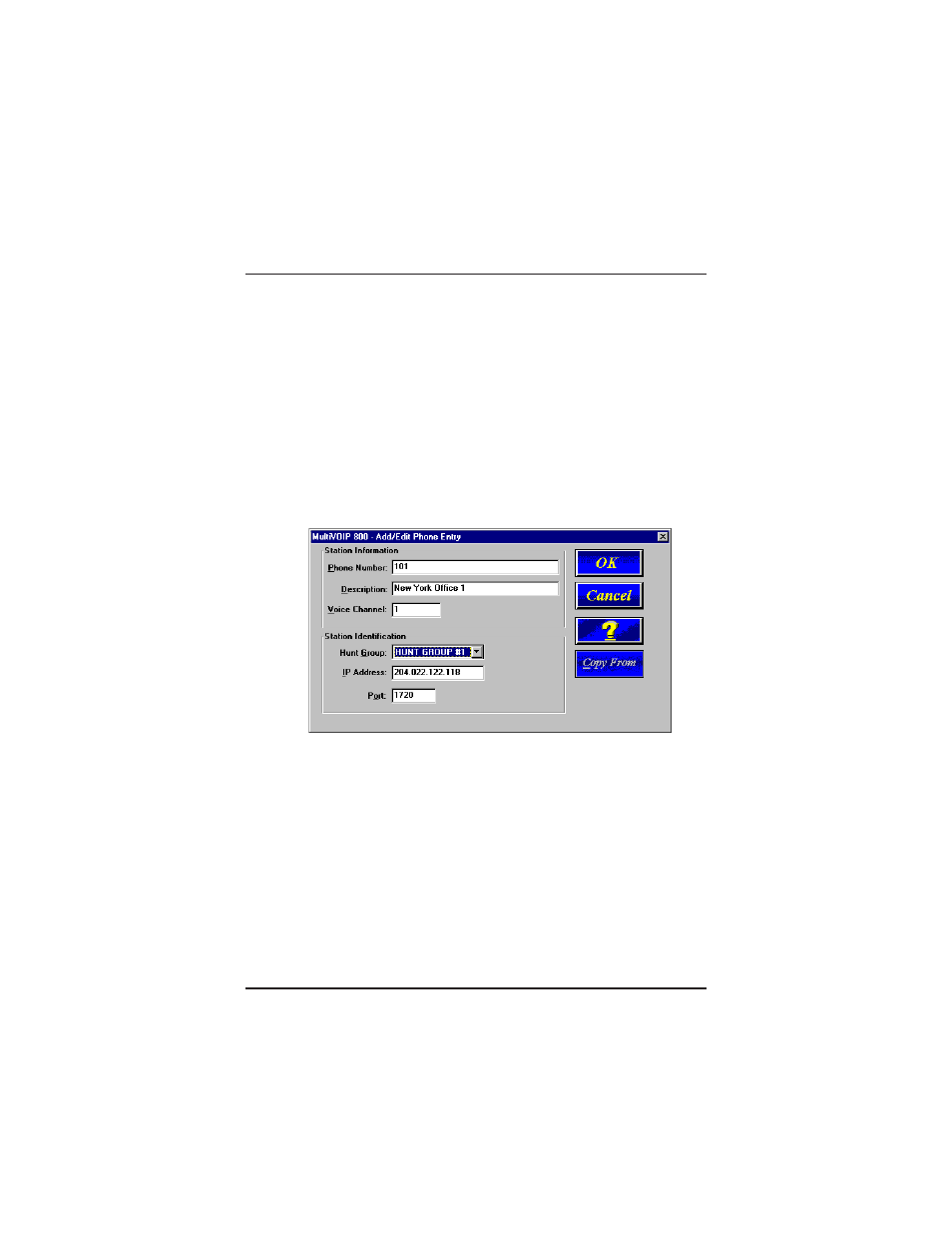

Note: Hunting is a series of telephone lines organized in
such a way that if the first line is busy the next line is
hunted and so on until a free line is found. For this
example, assign the phone entry to HUNT GROUP #1.
Once you have assigned this entry to a Hunt Group (or
NO HUNT), you must enter the IP Address of the Master
MultiVOIP 400/800 in the IP Address box (for example,
204.022.122.118).
Note: The Port box becomes active as you begin to enter
the IP Address. The entry is the H.323 industry standard
Port value (1720) used to communicate with other H.323
endpoints.
5. Click OK to return to the Phone Directory Database
dialog box. It now includes phone number (101),
destination details (204.022.122.118 Channel 1), and
description (New York Office 1).
