Multi-Tech Systems MVP400 - Manual (Page 29)

29
Configuring the MultiVOIP
3. Enter the Gatekeeper IP Address in the IP Address box of
the RAS Parameters group.
4. Accept the default Port Number 1719.
CAUTION: The default setting for the Gatekeeper Port
Number is 1719. This can be changed to a different value
by the Gatekeeper administrator. If you decide to change
the default Port Number, you must use the same number
on the Gatekeeper and all other H.323 endpoints.

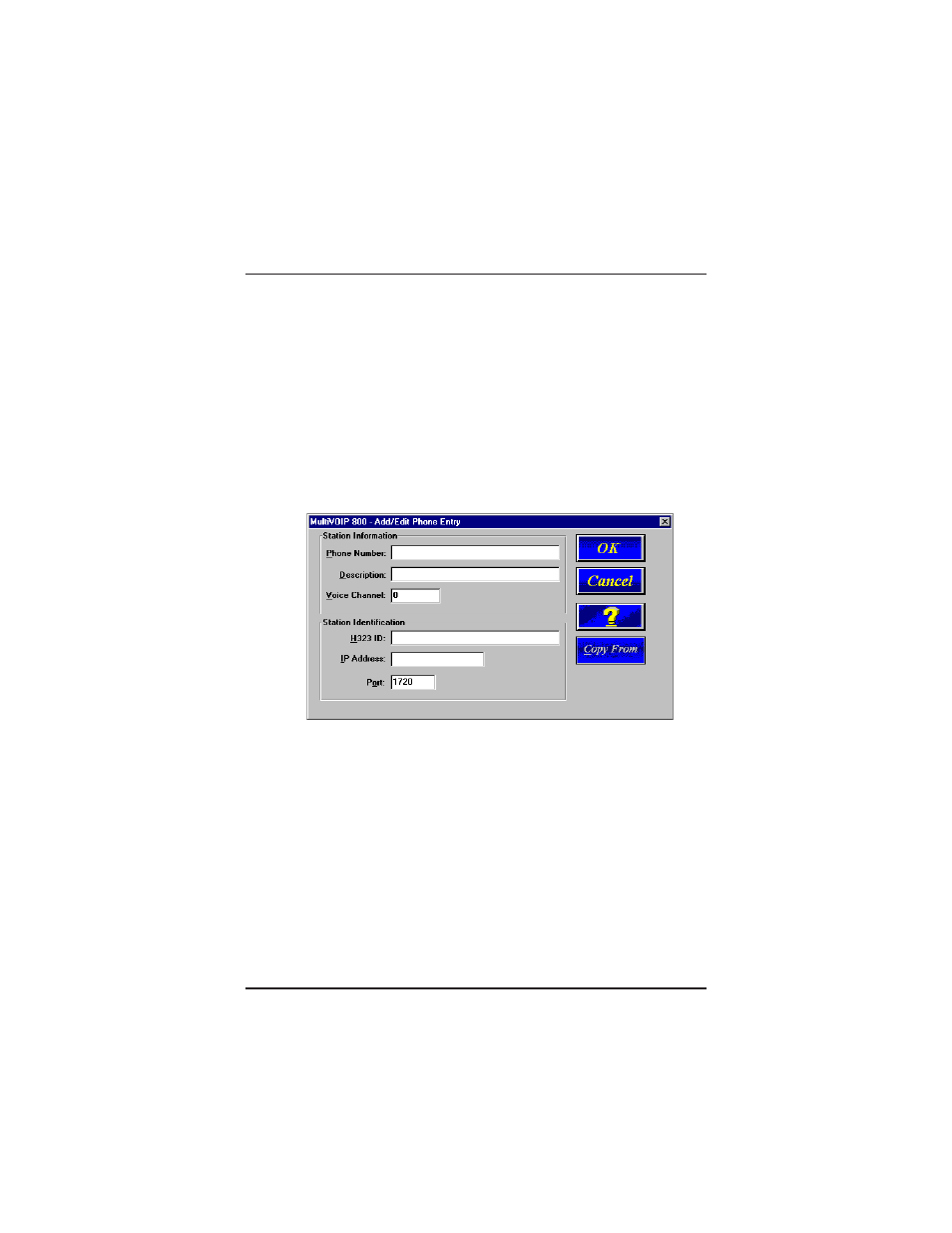

5. Click Add when you are finished to begin building your
phone directory database. The Add/Edit Phone Entry
dialog box displays.
6. Enter the unique phone number of the local device in the
Phone Number box. For example, 101.
7. Leave the Description box blank.
8. Enter the Voice Channel number that corresponds to the
phone number entered.
9. Enter a description in the H.323 ID box with a description
to identify the phone number. For this example, you could
enter “New York Office 1”.
