TV Inputs for Split Screen
The available Split Screen picture sources are listed below.
Available as either main picture or sub-
• Analog channels
• Devices on
VIDEO/S-VIDEO inputs
• Devices on COMPONENT inputs
• Devices on either HDMI 1 or 2 inputs. Note: The main and sub-
picture can not both have HDMI inputs.
Available as main picture only
• Digital channels received from HDMI 1080p
• PC
Display choices. Press the FORMAT key repeatedly while in Split Screen mode to view different displays.
Note: When PC or HDMI 1080p is the signal source for the Main picture, only one size combination is
available. Pressing the Format button will not change the size of the images.

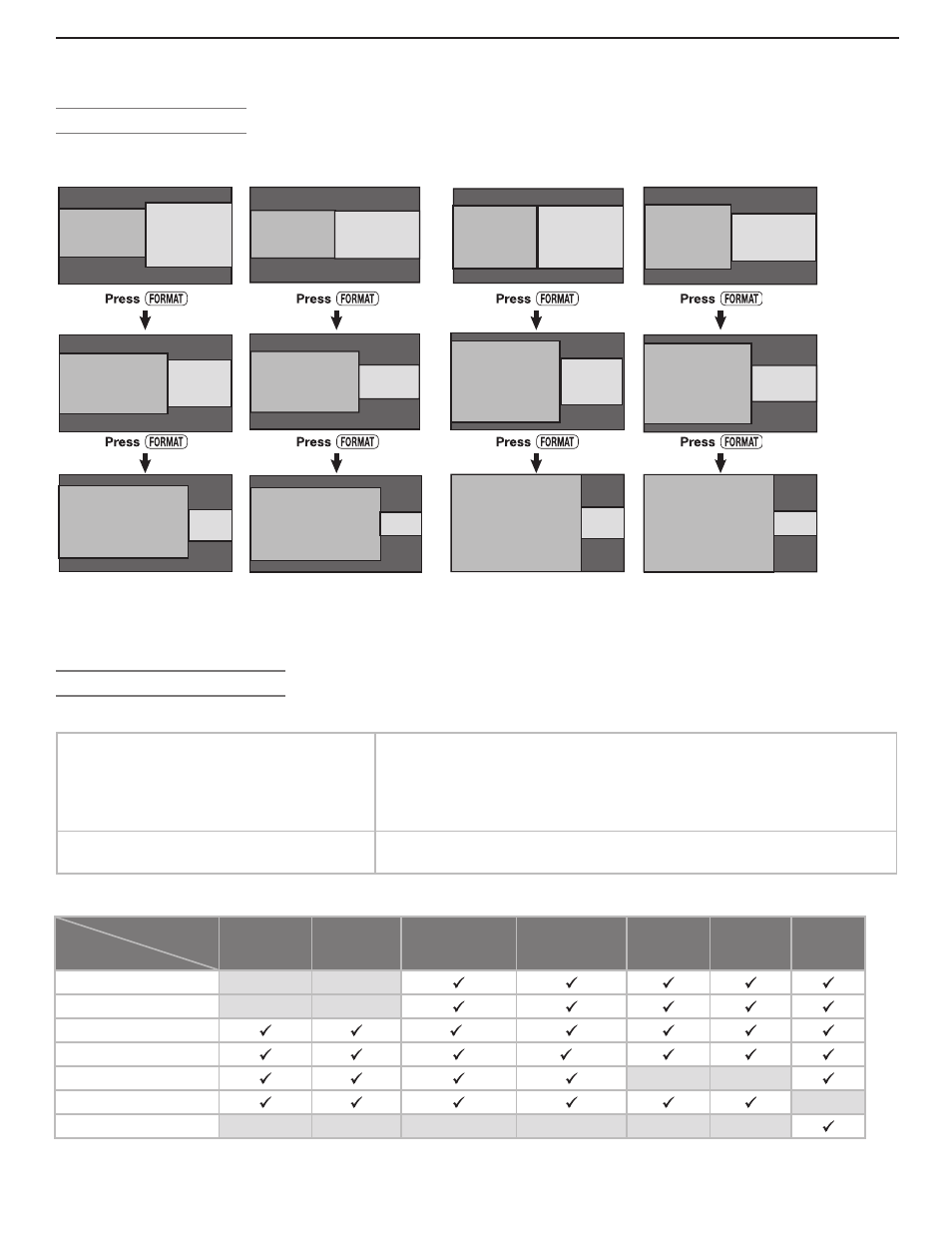

Split Screen Displays
16:9 Main
16:9 Main
16:9 Main
16:9 Main
16:9 Main
16:9 Main
4:3 Sub-
4:3 Sub-
4:3 Sub-
4:3 Main Picture
4:3 Main Picture
4:3 Main Picture
16:9 Sub-
16:9 Sub-
16:9 Sub-
4:3 Main Picture
4:3 Main Picture
4:3 Main Picture
4:3 Sub-
4:3 Sub-
4:3 Sub-
16:9 Sub-
16:9 Sub-
16:9 Sub-
16:9 Main Picture/
4:3 Sub-Picture 16:9 Main Picture/
16:9 Sub-Picture 4:3 Main Picture/
4:3 Sub-Picture 4:3 Main Picture/
16:9 Sub-Picture
Combinations of picture sources you can view with Split Screen. Check marks indicate available combinations.
Sub-
Main
ANT 1 ANT 2 INPUT COMPONENT
HDMI 1
(no 1080p)
HDMI 2
(no 1080p)
IEEE
1394
ANT 1
ANT 2
INPUT
*
COMPONENT **
HDMI 1 & 2
IEEE 1394
PC-DVI
* Only when main picture and sub-picture are from different
INPUT jacks
** Only when main picture and sub-picture are from different COMPONENT jacks
