Chapter 2. TV Connections

DVI Video Device (Cable Box,
Satellite Receiver, DVD Player, or
Other Device)

Analog stereo audio cables and a DVI-to-HDMI cable or
DVI/HDMI adapter and HDMI cable are required. These
are not included with the TV. They may be available at
your local electronics retailer.

1. Connect the DVI-to-HDMI cable (recommended) or

HDMI cable with DVI/HDMI adapter from the DVI
device’s back panel to the TV back panel.

NOTE: If you are using a DVI/HDMI adapter, it is impor-

tant to connect the adapter to the DVI device for
best performance.

2. Connect a set of audio cables from

AUDIO OUT

on the DVI device back panel to the

HDMI/DVI

AUDIO on the TV back panel. Connect the red

cable to the

RIGHT jack and the white cable to the

LEFT jack.

NOTE: The HDMI connection supports copy protection

(HDCP).

Some devices require connecting to an analog
input ﬁ rst, in order to view on-screen menus and
to select DVI as the ouput. Please review your
equipment instructions for DVI connectivity and
compatibility.

��

�

��

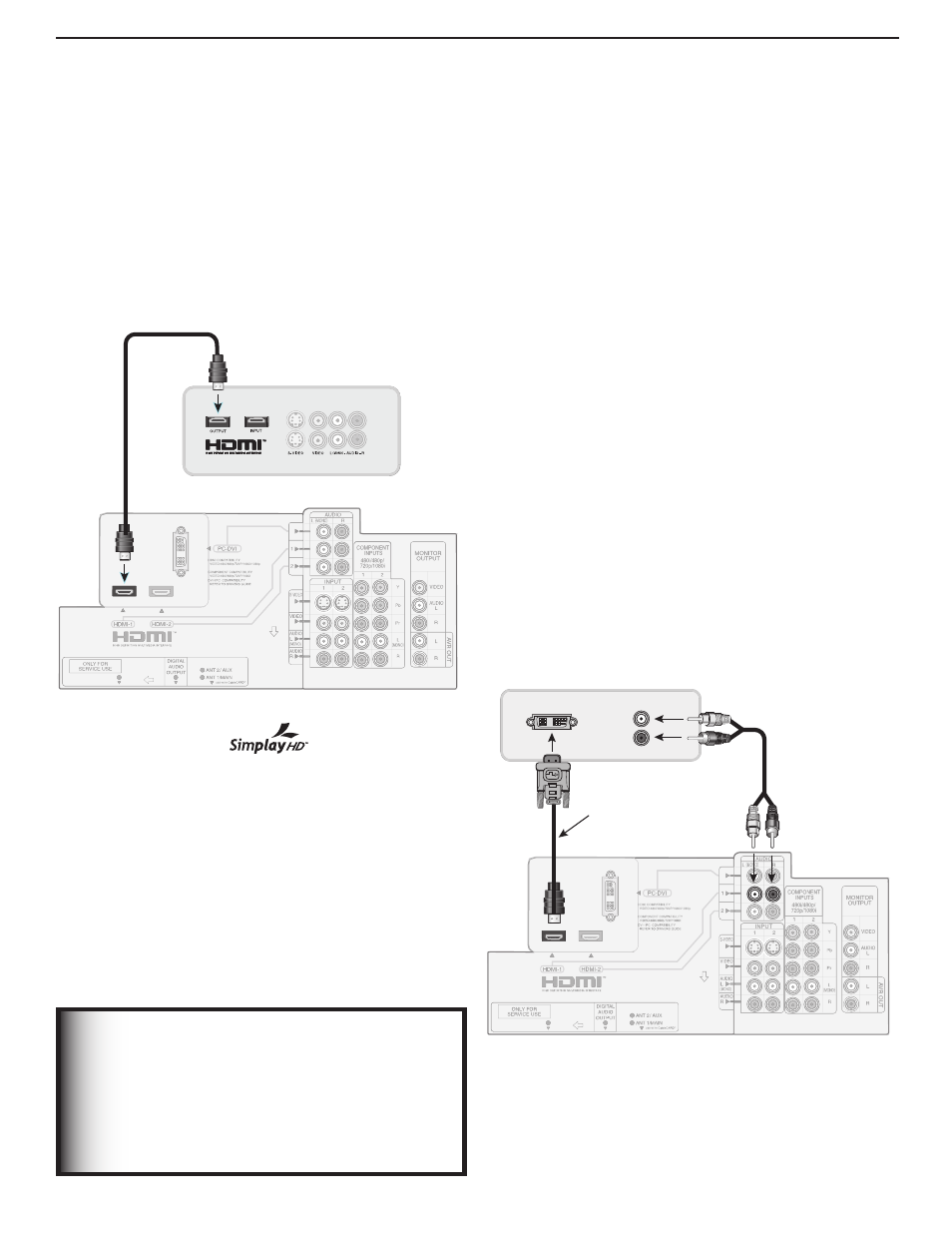

Figure 12. Connecting a DVI device

HDMI Device (Cable Box, Satellite

Receiver, DVD Player, or Other Device)

Required: HDMI-to-HDMI cable. This is not included
with the TV.

Connect an HDMI cable from the TV back panel to the
HDMI device output. HDMI devices provide video and
audio through this cable, so no other connection is

required. You can connect two HDMI devices to the TV
back panel through the HDMI connections.

��

Figure 11. Connecting an HDMI device.

Note: HDMI inputs are

certiﬁ ed for proper

interoperability with other products certiﬁ ed by Sim-
play™.

IMPORTANT

To connect a personal computer to the TV,
see chapter 6, “Using the TV with a Personal
Computer.”
The HDMI input processes signals as standard
motion video and is not designed to process
computer resolutions.
