Page 33

Chapter 2. TV Connections

Older Cable Box

Required: 3 coaxial cables, one two-way RF splitter.

These are not included with the TV.

When this setup is complete, you can use the TV remote
control, when programmed, to change channels on the
cable box.

Note: This connection is not recommended. The other

connections described in this chapter provide bet-
ter quality audio and video to the TV.

1. Connect the incoming cable to

IN on the RF splitter.

2. Connect one coaxial cable from

OUT on the RF split-

ter to

ANT 1/MAIN on the TV back panel.

3. Connect one coaxial cable from

OUT on the RF split-

ter to

IN on the standard cable box.

4. Connect one coaxial cable from

OUT on the cable

box to

ANT 2/AUX on the TV back panel.

��

�

��

��
��

��
��
��

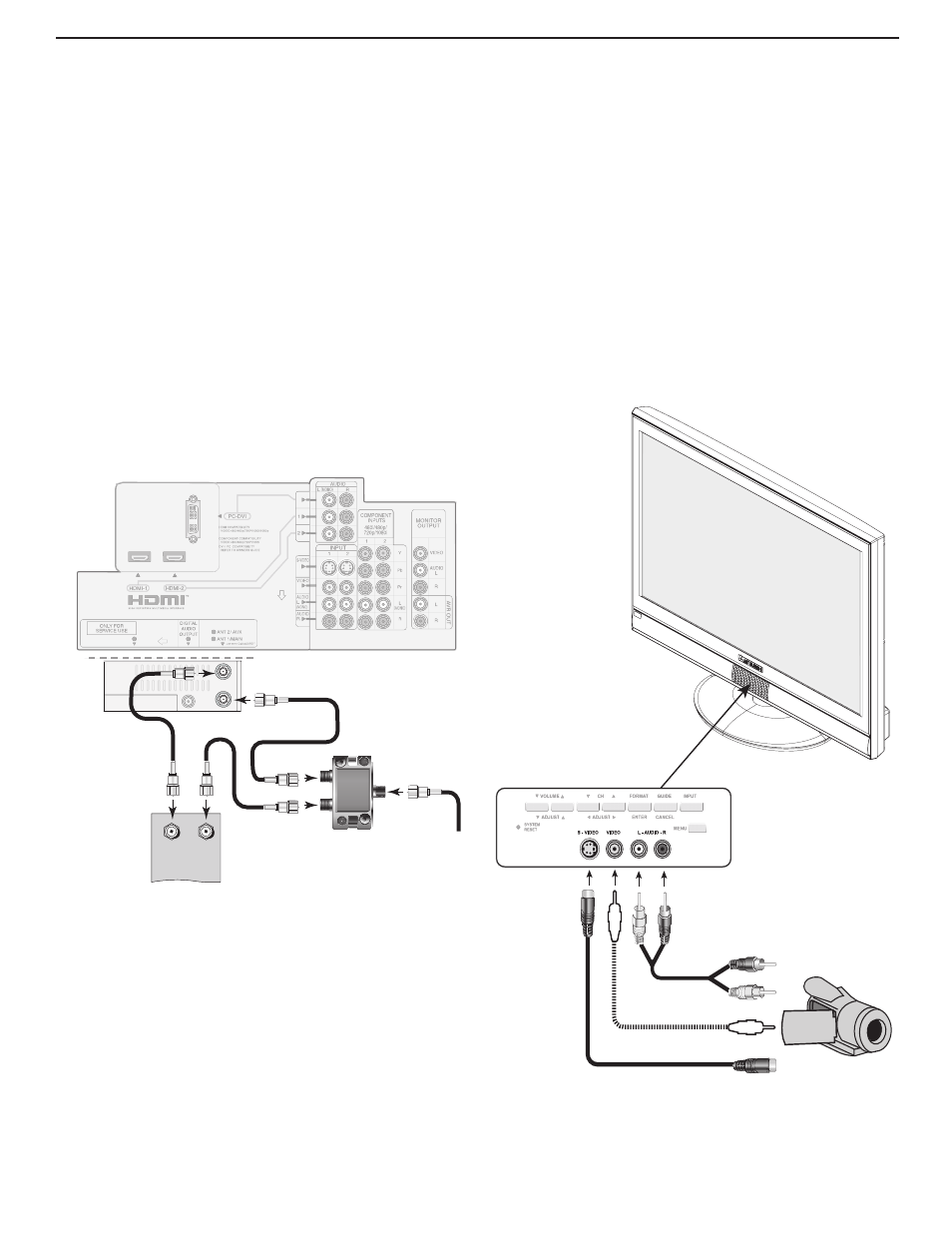

Figure 15. Connecting an older cable box

Note: ANT 1 is located behind ANT 2 when you are facing
the back of the TV.

Camcorder

Required: Analog stereo audio cables and either an S-
Video or composite video cable.

NOTE: For IEEE 1394 camcorders, see also chapter 7,

“Using IEEE 1394 Devices.”

1. Connect either an S-Video or composite video cable

from

VIDEO OUT on the camcorder to INPUT

3/VIDEO or S-VIDEO on the TV. Connect only one
type of video cable; S-Video is recommended, if avail-
able.

2. Connect left (white) and right (red) audio cables from

AUDIO OUT on the camcorder to INPUT 3/
AUDIO L and AUDIO R on the TV.

��

Figure 16. Analog connections for a camcorder
