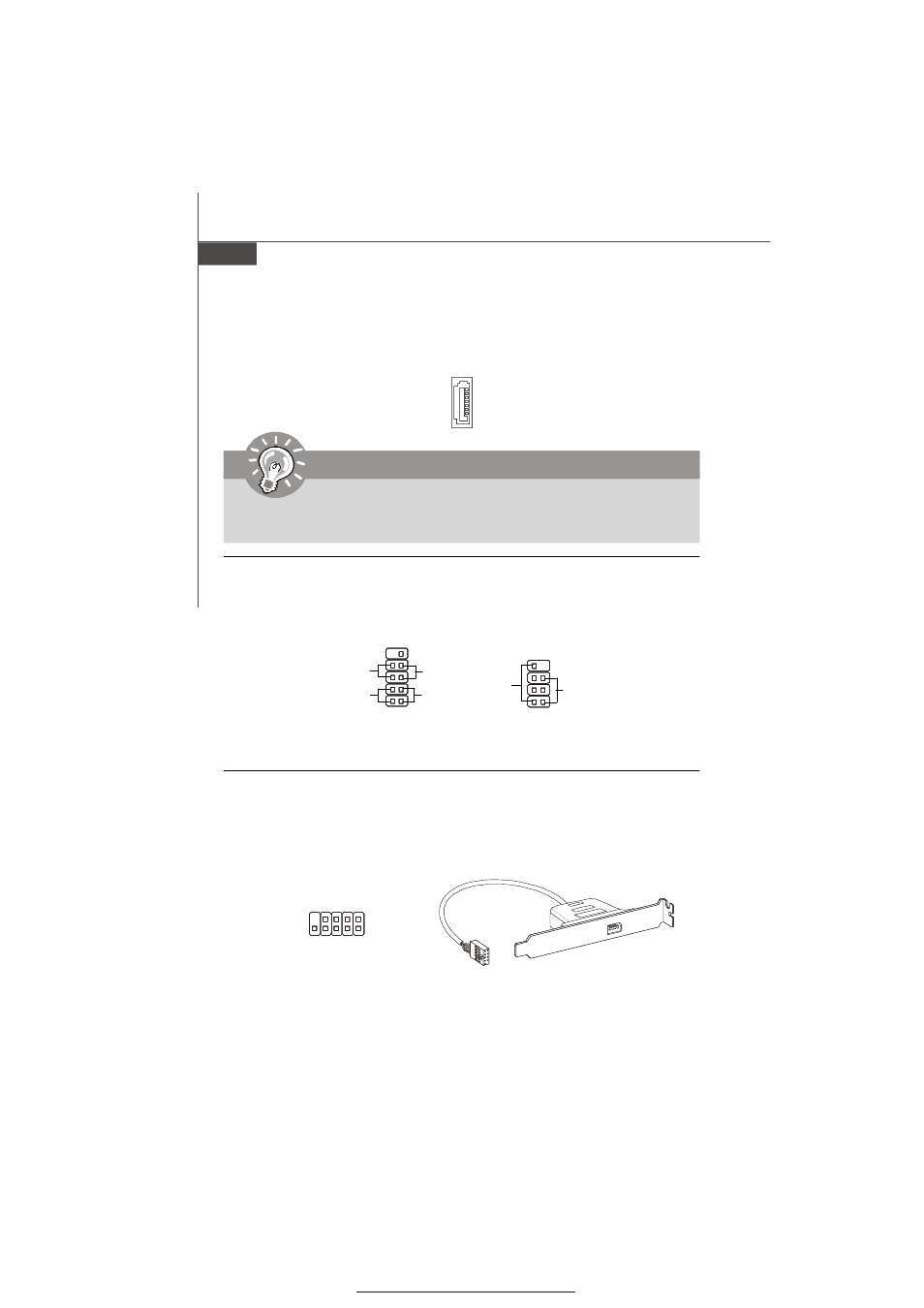

Front Panel Connectors
These connectors are for electrical connection to the front panel switches and LEDs.
The JFP1 is compliant with Intel
® Front Panel I/O Connectivity Design Guide.
IEEE1394 Connector (Green)
This connector allows you to connect the IEEE1394 device via an optional IEEE1394
bracket.
Serial ATA Connector
This connector is a high-speed Serial ATA interface port. Each connector can connect to
one Serial ATA device.
Important
Please do not fold the Serial ATA cable into 90-degree angle. Otherwise, data
loss may occur during transmission.
IEEE1394 Bracket
(Optional)
JFP1
1 2
9 10
HDD
LED
Reset
Switch
Power
LED
Power
Switch
JFP2
7 8
Power LED
Speaker
1 2
1
2
9
10
T
P
A-
G
ro
und
T
PB-
G
ro
und
T
P
A+
G
ro
und
T
PB+
C
a
b
le
p
o
w
er
K
e
y
(no
p
in)
