2-9
Hardware Setup

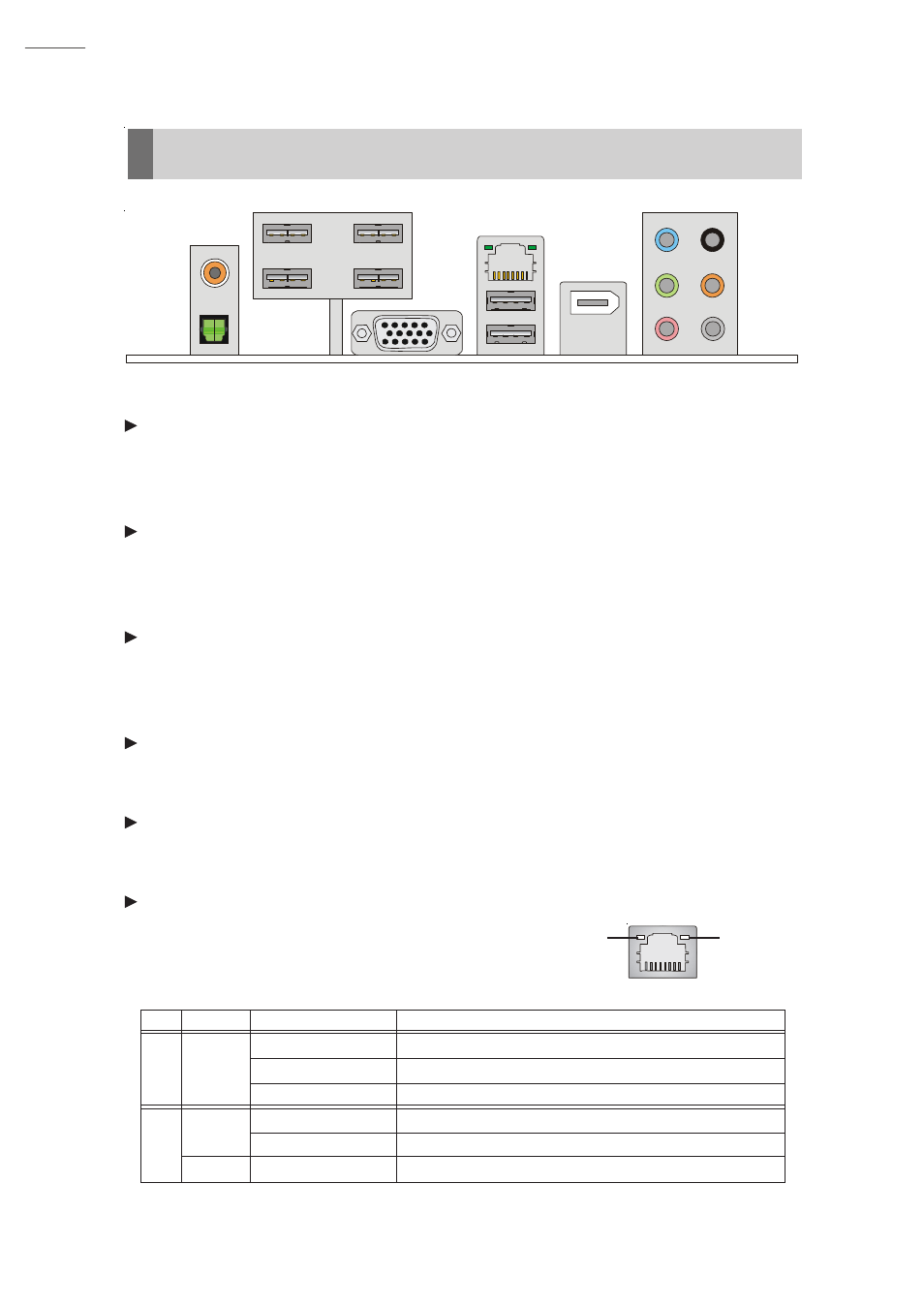

Back Panel
Coaxial S/PDIF-Out jack
This SPDIF (Sony & Philips Digital Interconnect Format) connector is provided for
digital audio transmission to external speakers through a coaxial cable.
Optical S/PDIF-Out jack
This SPDIF (Sony & Philips Digital Interconnect Format) connector is provided for
digital audio transmission to external speakers through an optical fiber cable.
USB ports
The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard,
mouse, or other USB-compatible devices.
VGA port
The DB15-pin female connector is provided for monitor.
IEEE 1394 port
The IEEE 1394 port on the back panel provides connection to IEEE 1394 devices.
LAN jack
The standard RJ-45 LAN jack is for connection
to the Local Area Network (LAN). You can con-
nect a network cable to it.
Link Indicator Activity Indicator
L E D Color LED State Condition
Off LAN link is not established.
Left Orange On (steady state) LAN link is established.
On (brighter & pulsing) The computer is communicating with another computer on the LAN.
Green Off 10 Mbit/sec data rate is selected.
Right On 100 Mbit/sec data rate is selected.
Orange On 1000 Mbit/sec data rate is selected.
USB ports
LAN jack
VGA port USB ports
Coaxial S/PDIF
-Out jack
Optical S/PDIF-Out jack
RS-Out
CS-Out
SS-Out
Line-In
Line-Out
Mic
IEEE 1394
port
