OM-230 009 Page 17

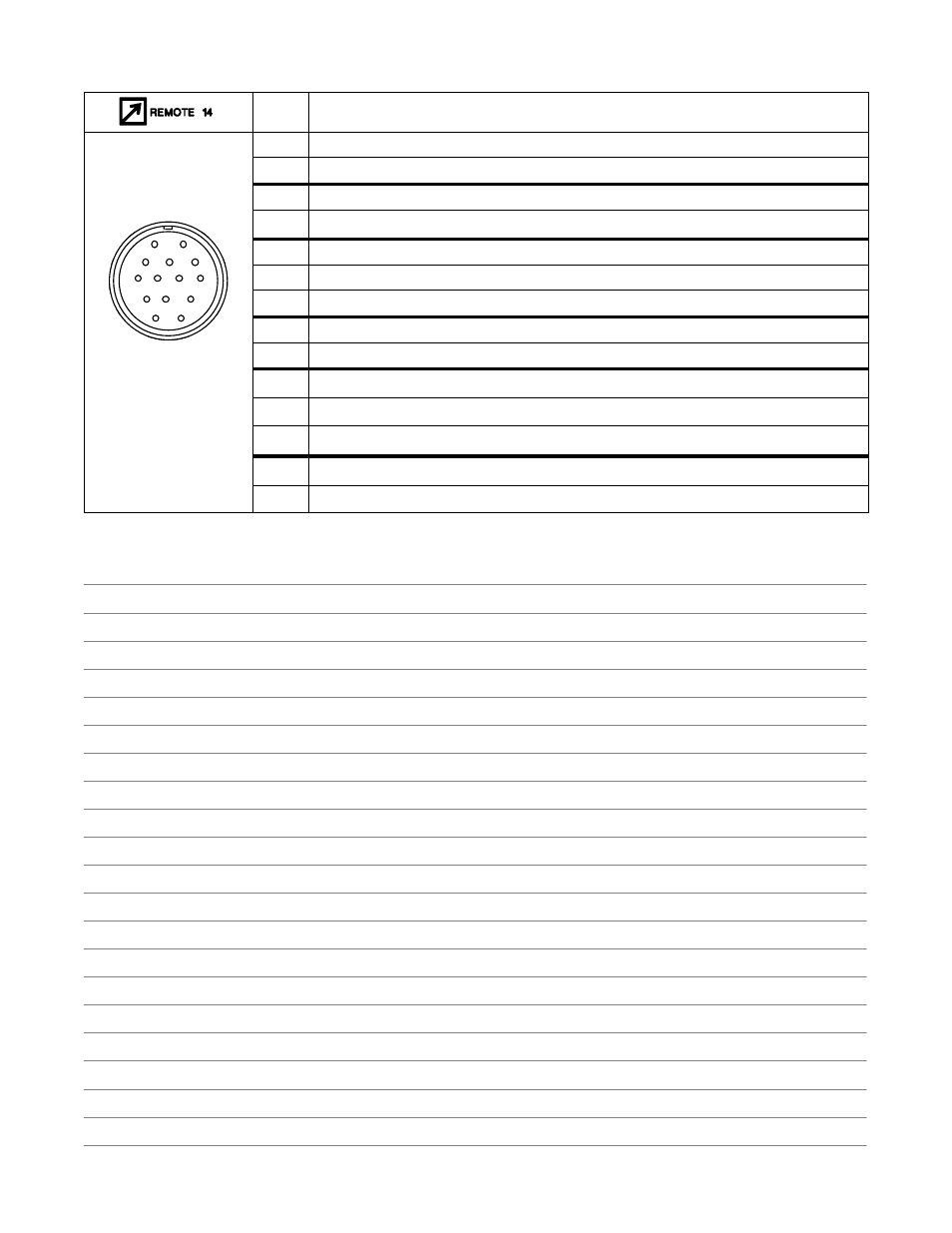

5-5. 14-Pin Plug Information
Pin* Pin Information
A 40 volts dc with respect to socket G.
G Circuit common for 40 volts dc circuit.
B Contact closure to K completes contactor control circuit.
K Contact closure to B completes contactor control circuit.
A J
B
K I
C +10 volts dc input from power source to wire feeder with respect to socket D.
B
K I
C
L N H
D Remote volt control circuit common.
C
L N H
D M G
E 0 to +10 volts dc remote volt/trim signal from wire feeder to power source with respect to socket D.
E F
H Voltage feedback; 0 to +10 volts dc, 1 volt per 10 arc volts.
F Current feedback; 0 to +10 volts dc, 1 volt per 100 amperes.
M 0 to +10 volts dc remote WFS signal from wire feeder to power source with respect to socket N.
N Remote WFS control circuit common.
L Electrode sense.
I Remote Program Select A
J Remote Program Select B
