Note: If the only serial port is a “modem/printer”, use it.
Projector + NEC PC 98 and EPSON series
Projector + Macintosh
Note: If your PC (IBM or IBM compatible) is equipped only with a 25-pin serial port connector,
a 25-pin serial port adapter is required. Contact your dealer for details.
RS-232C cable RS-232C
adapter for NEC
(option)
to RS-232C terminal
to RS-232C terminal
B. PCGC (Personal Computer Graphic Control)
By connecting to personal computer is RS-232C port, you can operate your computer with the projec-
tor remote control. Also you can set the menu setting of the projector by computer.
Connection
Control cable
• RS-232C cable (reverse)
• RS-232C adapter for Macintosh
• RS-232C adapter for NEC 98 series

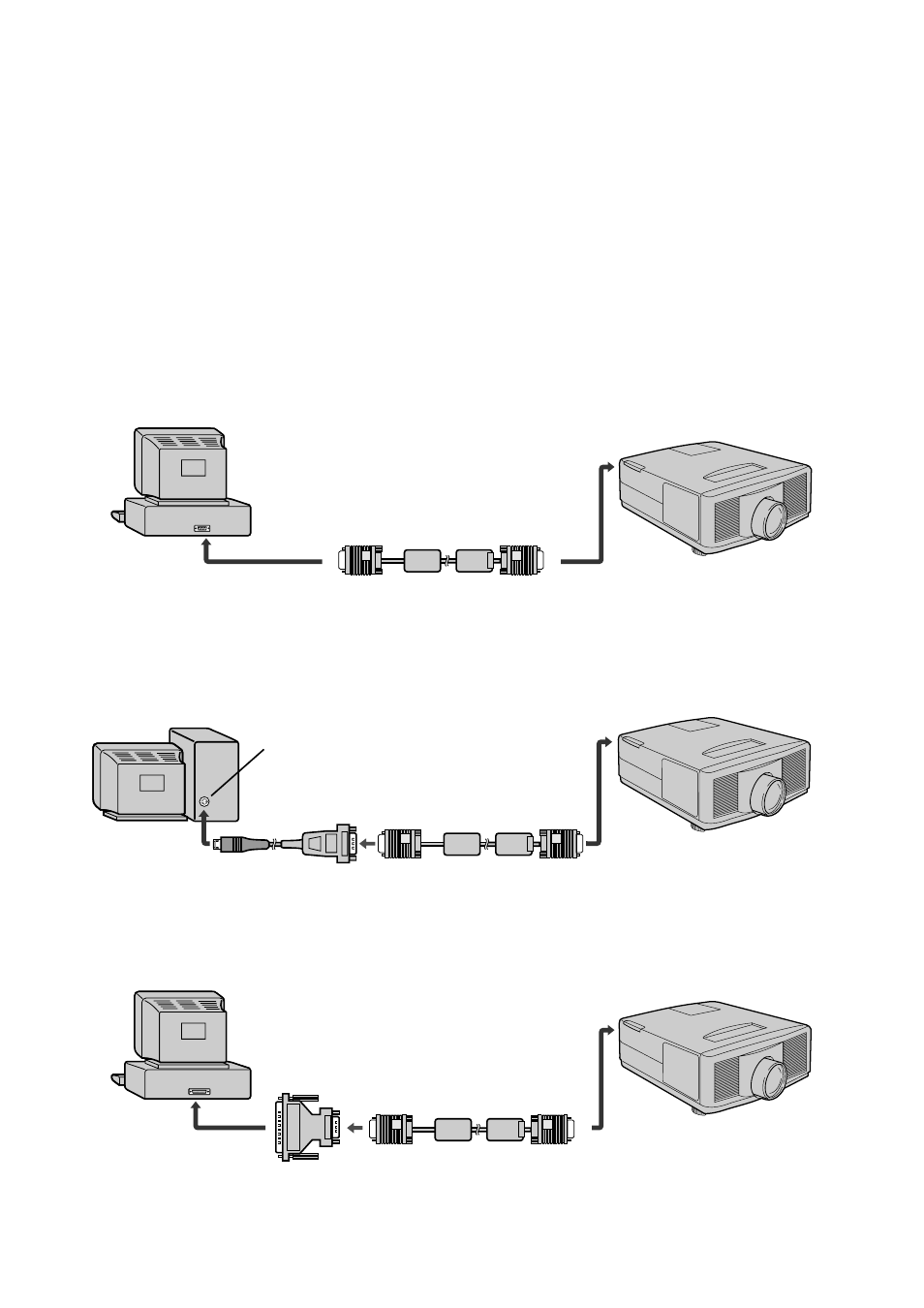

Projector + IBM PC or IBM PC compatibles (DOS/V)
RS-232C cable
to Com1
Comport
to RS-232C
terminal
RS-232C cable RS-232C adapter
for Macintosh
to modem port
to RS-232C terminal
Advanced feature with PC (continued)
