Projector + Macintosh
Make sure that your equipment is turned off before connection.
Important:
• A monitor output adapter is necessary for a Macintosh if it has no video port. Contact your dealer.
• If you use the RGB conversion adapter provided, set the dip switch to the appropriate position. See
page 17.
• Connectors or analog RGB output adapters may be necessary depending on the personal computer
connected to this projector. Please contact your dealer.
• The audio input for a personal computer is the stereo mini jack. There are some personal computers
that have different types of audio outputs or none at all. Please ask your dealer for details.
• For connection details, refer to the owner's guide for each component.
• When outputting to both a PC monitor and the projector, use an Apple Macintosh monitor or multiscan
monitor corresponding to Composite Sync.
to video port
desktop
computer
RGB Conversion
adapter for MAC
Monitor
Conversion
adapter
RGB cable
Monitor cable
to PC-AUDIO
to PC audio
output
to PC
monitor
to PC-1 IN
to PC-1 OUT
1
2
3
4
5
6
7
8
9
10
ON

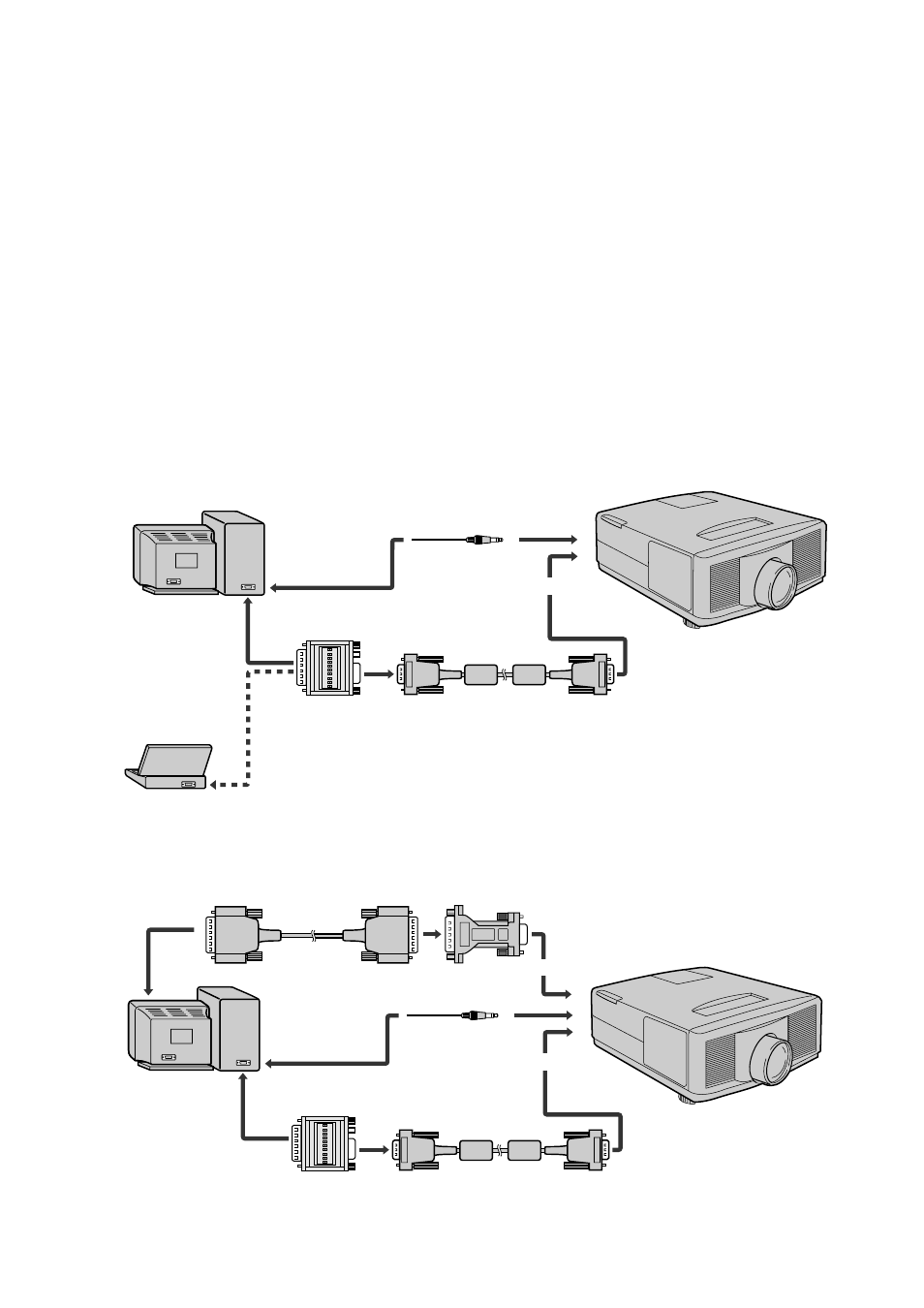

When outputting to both a PC monitor and the projector
to video port
to video port
desktop computer
Power Book RGB Conversion
adapter for MAC
RGB cable
to PC-AUDIO
to PC audio
output
to PC-1 IN
1
2
3
4
5
6
7
8
9
10
ON
