10

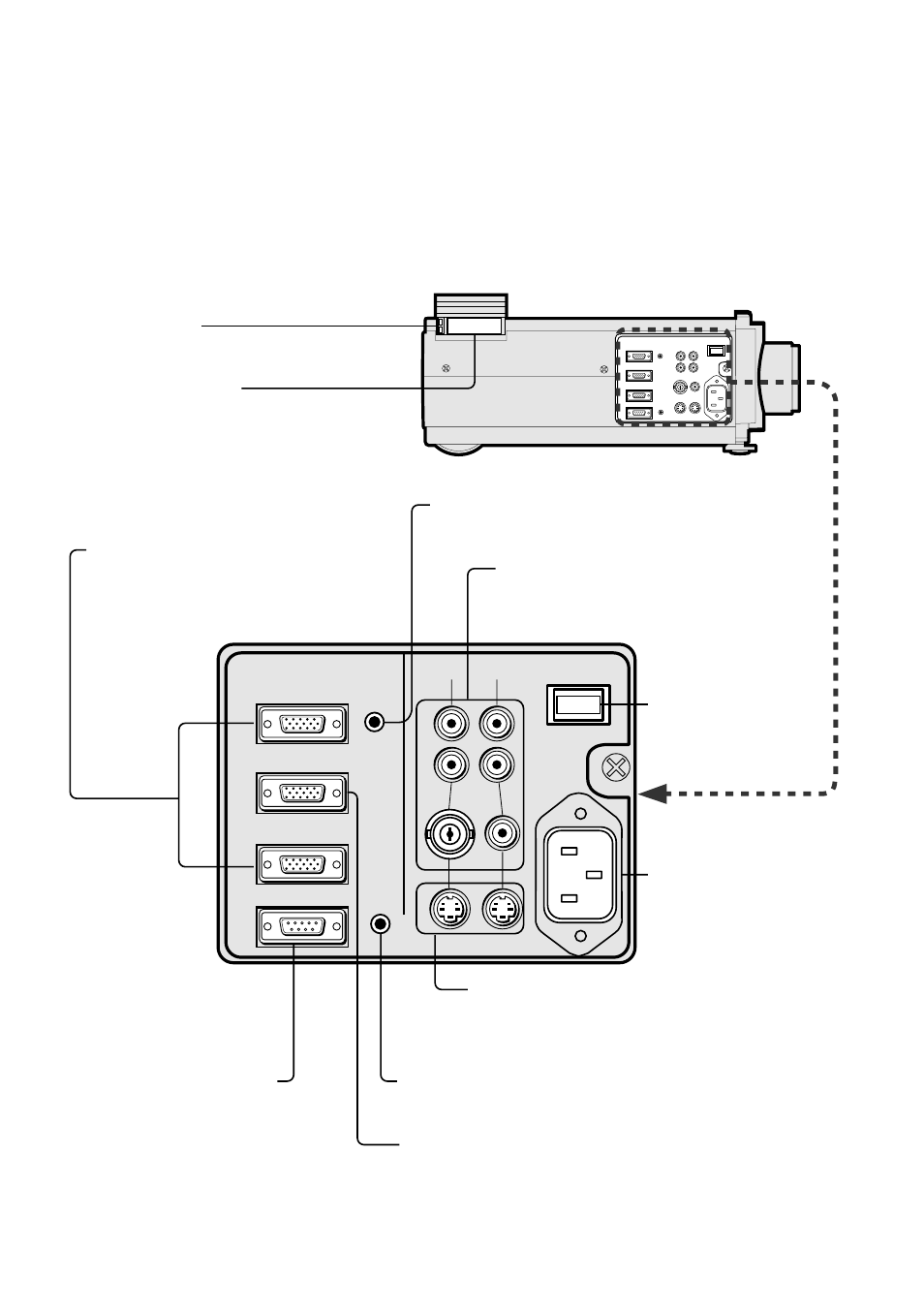

Overview of the projector (continued)
PC-1 IN
PC-2 IN
PC-1 OUT
LINE-OUT
PC-AUDIO
AUDIO
MAIN
VIDEO
AC IN
S-VIDEO
L
R
INPUT 1 INPUT 2
RS-232C
MAIN power
S-video input
When connected to this input, S-video functions
automatically shut off normal video input.
See page 21.
video/audio input
Use to input video and audio.
See page 21.
line output
Use to output PC audio if PC audio in, or Audio input
1 or 2 is connected. See pages 18~20.
PC audio input (stereo mini jack)
Use to input PC audio signals.
See pages 18~20.
PC analog RGB input
(mini D-SUB 15P)
Use to input RGB signal for PC.
See pages 18~20.
RS-232 input (D-SUB 9P)
Use to control the projector
through PC. See page 42.
PC card eject
Press to eject the PC card.
See page 36.
PC card insert slot
This is where you insert the PC card.
(You can insert up to two cards.)
See page 36.
PC analog RGB output
(mini D-SUB 15P)
Use to output RGB signal from PC-1 input.
See pages 18~20.
power jack
Left side
