2-9
Hardware Setup

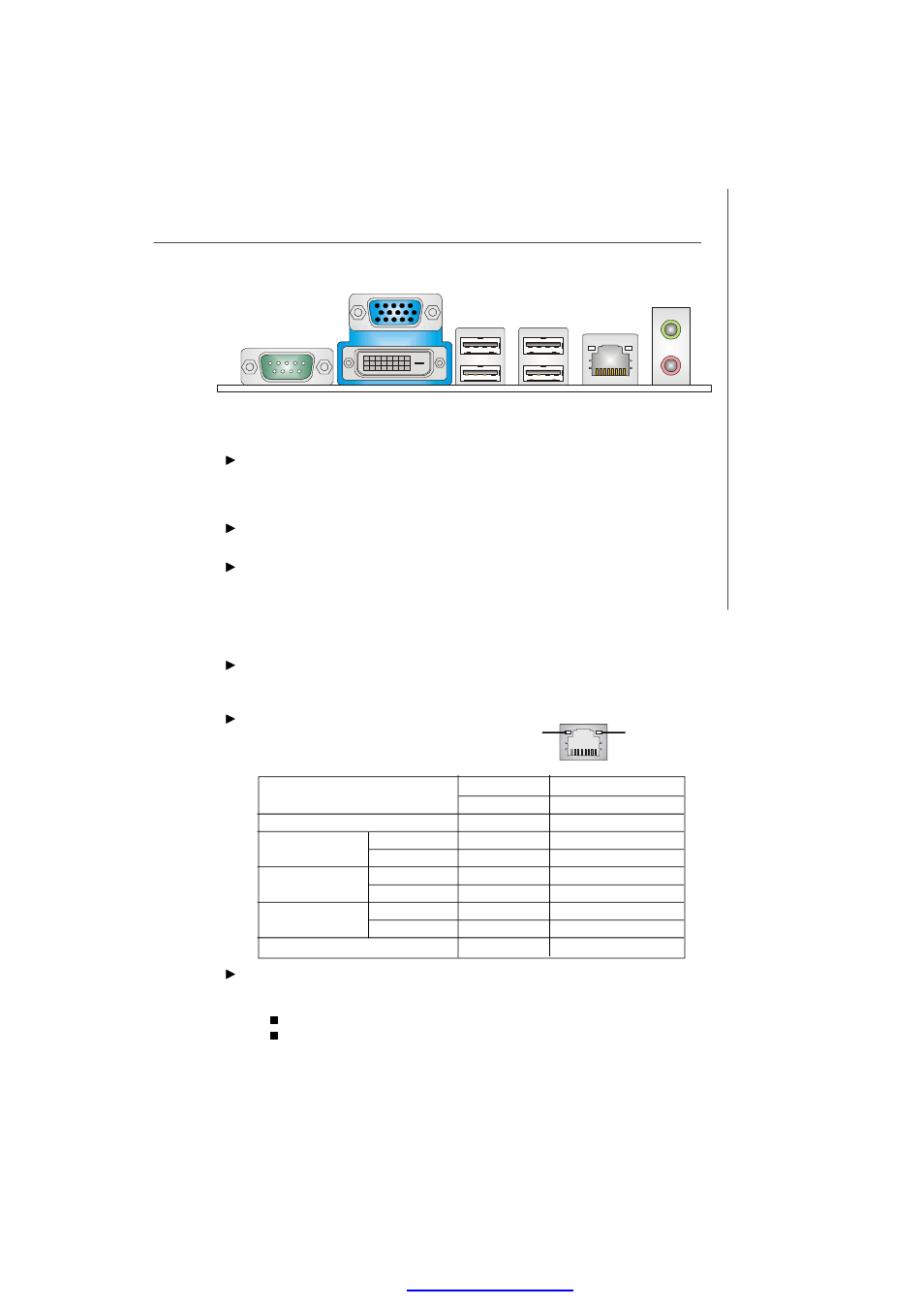

Option D
Speed Indicator Activity Indicator
Serial Port
The serial port is a 16550A high speed communications port that sends/ receives 16
bytes FIFOs. You can attach a serial mouse or other serial devices directly to the
connector.
VGA Port
The DB15-pin female connector is provided for monitor.
DVI Port
The DVI (Digital Visual Interface) connector allows you to connect a LCD monitor. It
provides a high-speed digital interconnection between the computer and its display
device. To connect an LCD monitor, simply plug your monitor cable into the DVI
connector, and make sure that the other end of the cable is properly connected to
your monitor (refer to your monitor manual for more information.)
USB Port
The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard,
mouse, or other USB-compatible devices.
LAN
The standard RJ-45 LAN jack is for con-
nection to the Local Area Network (LAN).
You can connect a network cable to it.
Left LED Right LED
Active LED 100M/1000M Speed LED
LED Color Yellow Green/Orange
10M Cable Plug-in No Transmission Slow Blinking OFF
Transition Swiftly Blinking OFF
100M Cable Plug-in No Transmission Slow Blinking Green(Lighting)
Transition Swiftly Blinking Green(Lighting)
1000M Cable Plug-in No Transmission Slow Blinking Orange(Lighting)
Transition Swiftly Blinking Orange(Lighting)
In S3/S4/S5 Standby State Green (Lighting) OFF
Audio Ports
These audio connectors are used for audio devices. You can differentiate the color
of the audio jacks for different audio sound effects.
Line-Out (Green) - Line Out, is a connector for speakers or headphones.
Mic (Pink) - Mic, is a connector for microphones.
USB Ports COM5
RS-232/422/485
Serial Port
USB Ports
Line-Out
LAN
MIC DVI Port
VGA Port
