MSI IM-945GSE SERIES MS-9830 User Manual
Page 31
2-3
Hardware Setup
Memory
The DIMM slots are intended for system memory modules.
Installing Memory Modules
1.
Locate the SO-DIMM slots on the mainboard.
2.
Align the notch on the DIMM with the key on the slot. Insert the DIMM vertically into
the SO-DIMM slot. Then push it in until the golden finger on the DIMM is deeply
inserted in the SO-DIMM slot.
3.
Manually check if the DIMM has been locked in place by the retaining clips at the
sides.

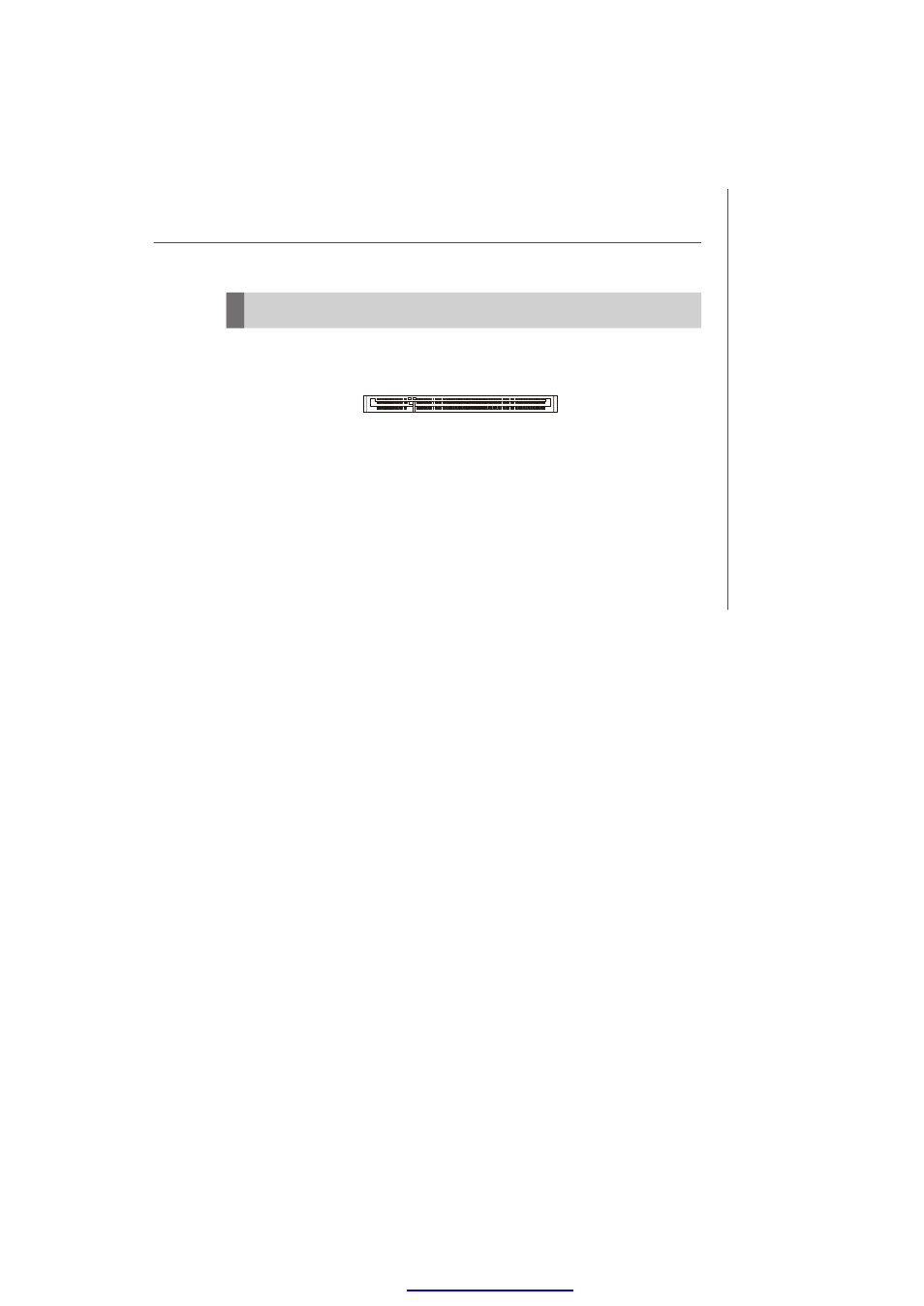

DDR2 SO-DIMM Slot
200-pin, 1.8V
