2-6
MS-9830 Mainboard
Audio Ports
These audio connectors are used for audio devices. You can differentiate the color
of the audio jacks for different audio sound effects.
Line-In (Blue) - Line In, is used for external CD player, tapeplayer or other
audio devices.
Line-Out (Green) - Line Out, is a connector for speakers or headphones.
Mic (Pink) - Mic, is a connector for microphones.

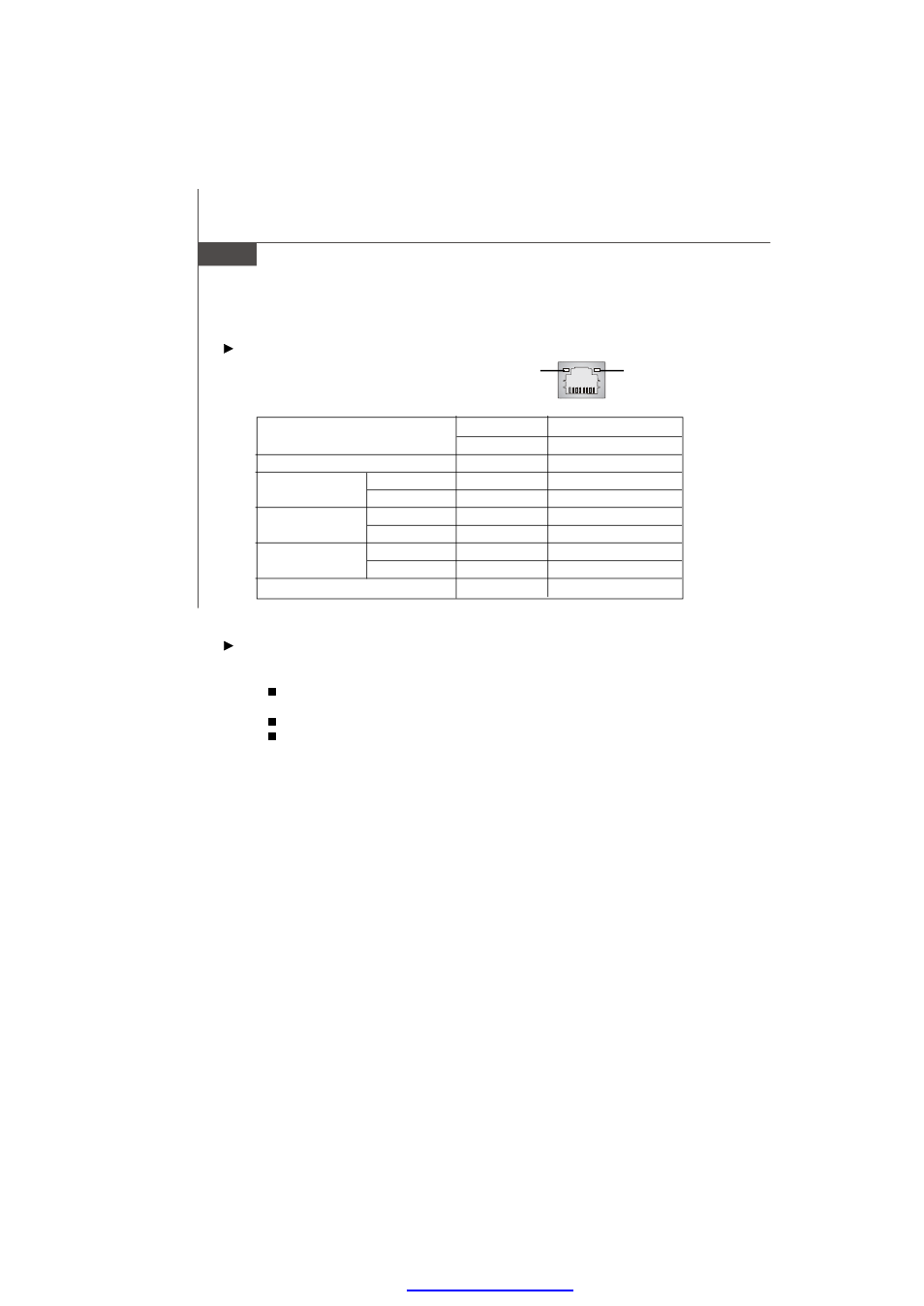

LAN
The standard RJ-45 LAN jack is for con-
nection to the Local Area Network (LAN).
You can connect a network cable to it.
Speed Indicator
Activity Indicator
Left LED
Right LED
Active LED
100M/1000M Speed LED
LED Color
Yellow
Green/Orange
10M Cable Plug-in
No Transmission
Slow Blinking
OFF
Transition
Swiftly Blinking
OFF
100M Cable Plug-in
No Transmission
Slow Blinking
Green(Lighting)
Transition
Swiftly Blinking
Green(Lighting)
1000M Cable Plug-in
No Transmission
Slow Blinking
Orange(Lighting)
Transition
Swiftly Blinking
Orange(Lighting)
In S3/S4/S5 Standby State
Green (Lighting)
OFF
