47
Furthermore, it is necessary that the niche is provid
with a conduct of ventilation having the following
dimensions:
depth 50 mm
width 540 mm
II nstructions for totally built-in appliances

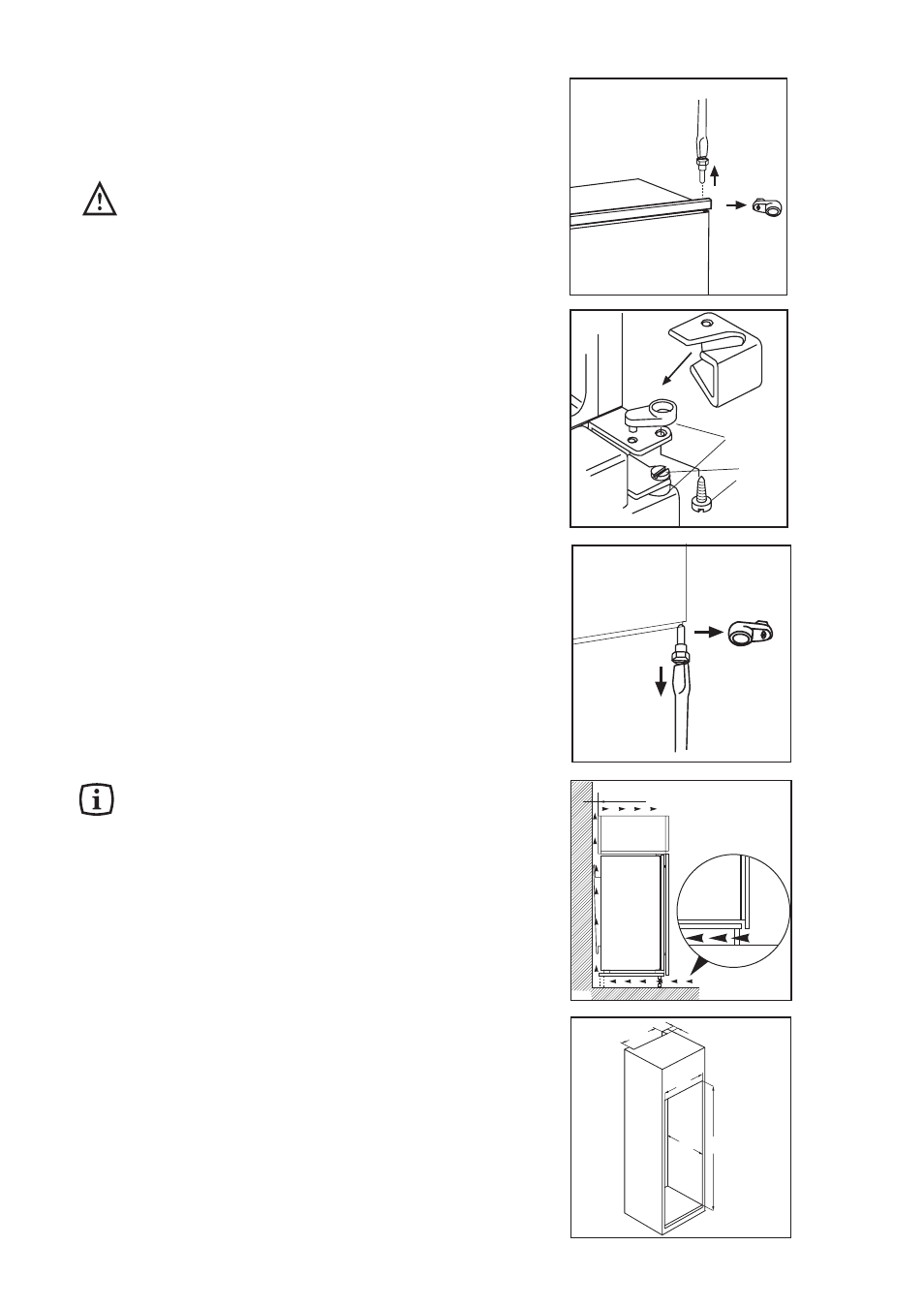

Door reversibility
II nstructions for totally built-in
appliances
Dimensions of the recess
Height (1) 1780 mm
Depth (2) 550 mm
Width (3) 560 mm
For safety reasons, minimum ventilation must be as
shown in Fig.
Attention: keep ventilation
openings clear of obstruction.
50 mm
min.
cm
2 200
200 cm 2
min.
D567
B
C
A
The appliance is supplied with the right
or left doors opening. To change the opening
direction of the doors proceed as in the
following instructions before installing it.
1. Unscrew the upper pin and remove the spacer
2. Remove the upper door
3. Unscrew the pins (B) and the spacers (C) and
refit them on the middle hinge of the opposite
side. Snap the hinge cover (A).
4. Refit the upper door, the upper pin and the
spacer on the opposite side
5. Unscrew the lower pin and remove the spacer
and refit them on the opposite side
PR01
540
50
3
2 1
