2. TV Connections
19
For assistance call 1(800) 332-2119

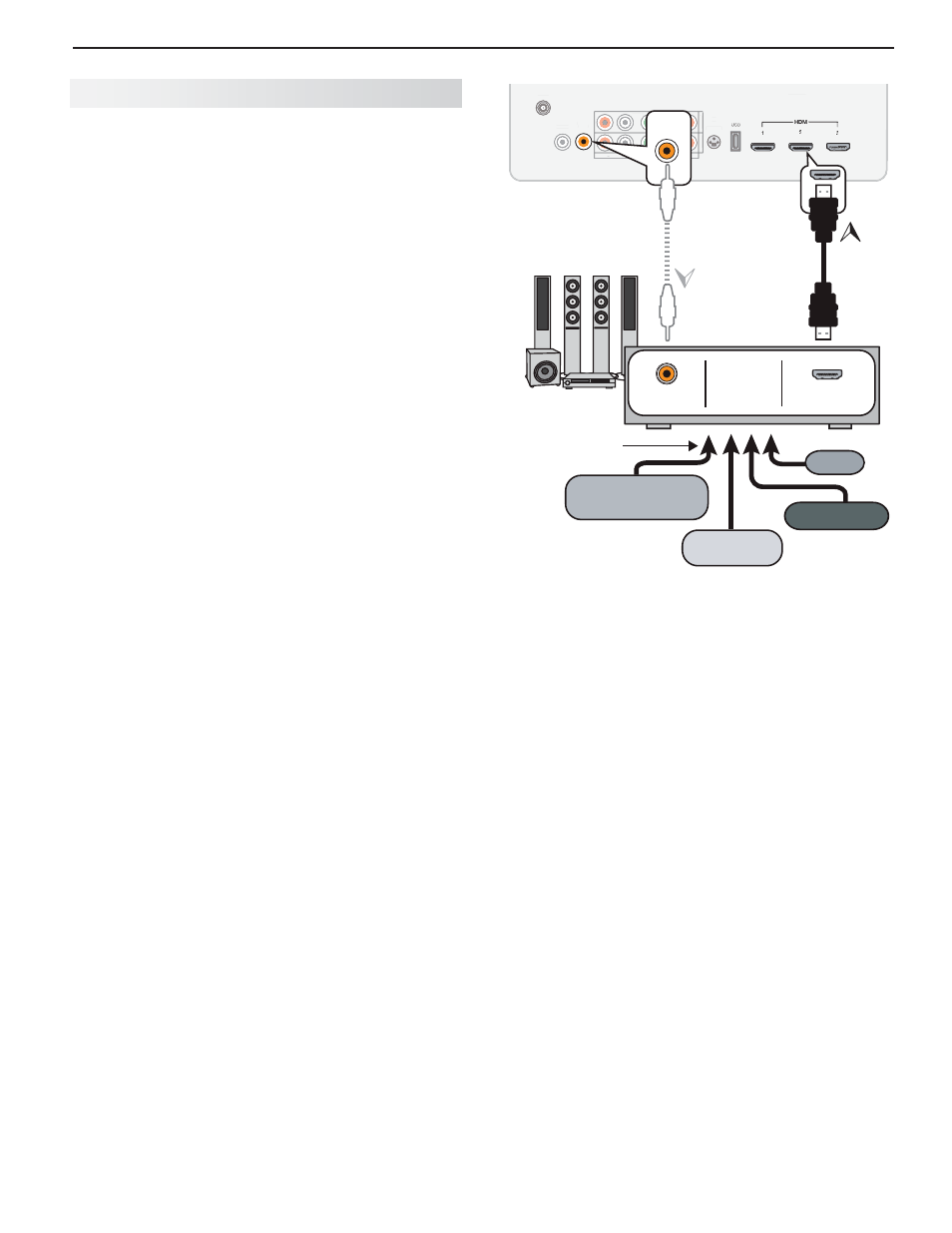

A/ V Receiver with HDMI Output
Required: One HDMI-to-HDMI cable
This option allows you to view content from devices
connected to an A/V receiver. The A/V receiver can
send audio and video to the TV over a single HDMI
cable. You can use an HDMI connection as described
here in addition to an audio connection from the TV’s
audio output. The optional audio connection allows you
to hear, through the A/V receiver, devices connected to
the TV only, e.g., an antenna on the ANT input.
HDMI
Pb
Pr
INPUT 2
INPUT 1
(480i / 480p / 720p / 1080i)
Y/ VIDEO
Pb
Pr
Y/ VIDEO
3D
GLASSES
EMITTER
ANT
AUDIO
L
R
DIGITAL
AUDIO
OUTPUT
DVI/PC
AUDIO
INPUT
HDMI
Pb
Pr
INPUT
2
INPUT
1
(480i / 480p / 720p / 1080i)
Y/ VIDEO
Pb
Pr
Y/ VIDEO
3D
GLASSES
EMITTER
ANT
AUDIO
L
R
DIGITAL
AUDIO
OUTPUT
DVI/PC
AUDIO
INPUT
DIGITAL
AUDIO
OUTPUT
DIGITAL
AUDIO
OUTPUT
HDMI cable
1
2
3
HDMI
HDMI OUT
DIGITAL
AUDIO IN
High-definition
DVD player
DVD player
Cable box
VCR
TV
A/V receiver with
HDMI output
Any connection
types
Optional digital
audio connection
