15
For assistance call 1(800) 332-2119
2 TV C onnections
1 2 3
HDMI
HDMI
Pb Pr
INPUT 2
INPUT 1
(480i / 480p / 720p / 1080i)
Y/ VIDEO
Pb Pr Y/ VIDEO
3D
GLASSES
EMITTER
ANT
AUDIO L R
DIGITAL
AUDIO
OUTPUT
DVI/PC
AUDIO
INPUT
HDMI
( page 17 )
DVI/PC AUDIO
INPUT
( page 17 )
DIGITAL AUDIO
OUTPUT ( page 18 )
R & L
Analog
Audio
Input
Y Pb Pr
(component
video)
ANT
( page 18 )
3D GLASSES EMITTER
( page 13 )

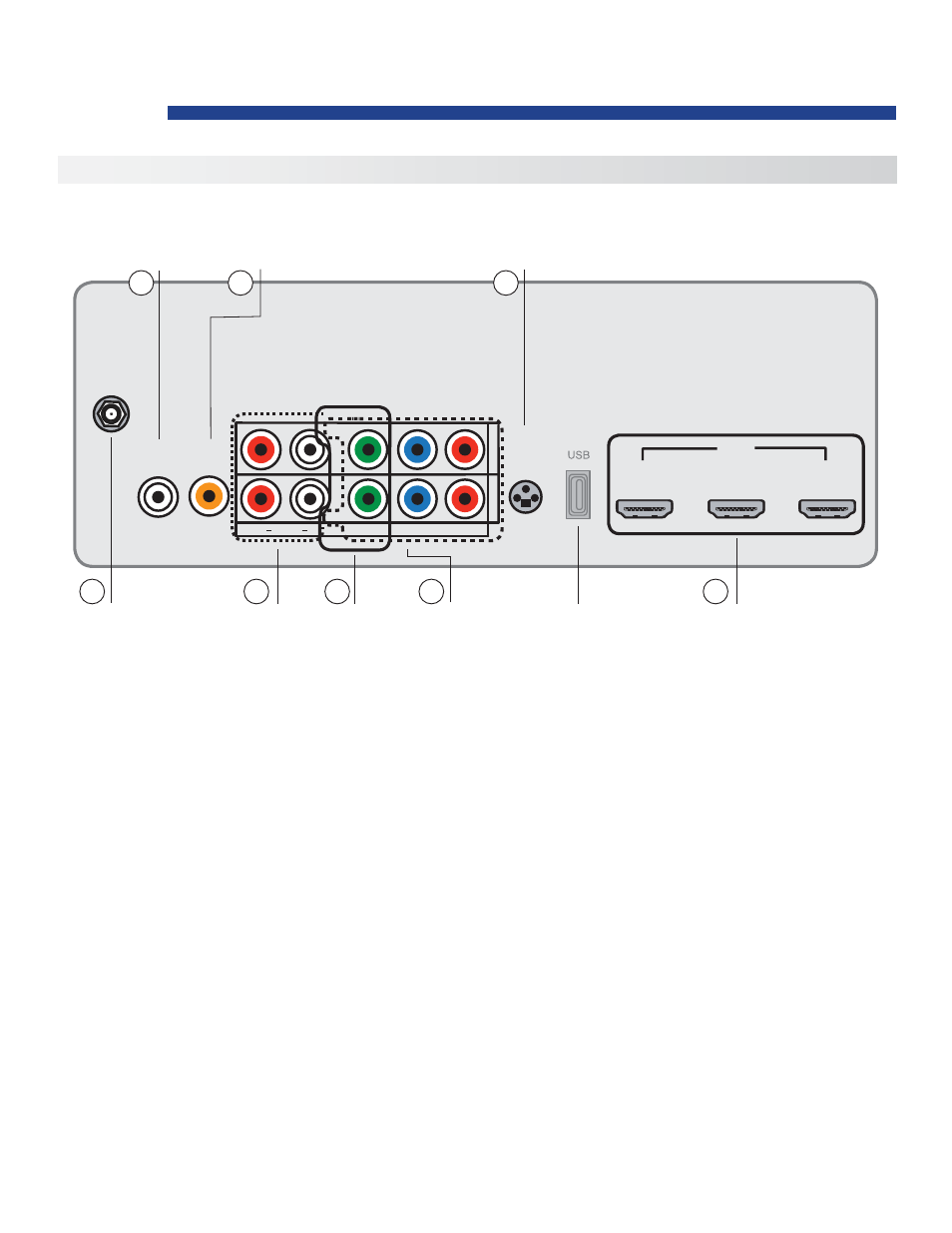

Connection Panel
Y/VIDEO
(composite
video)
USB
For use by your
TV servicer
1 8 3
6
4
5
2
7
1. ANT ( Antenna)
Connect your main antenna or direct cable service (no
cable box) to ANT. The ANT input can receive digital
and analog over-the-air channels from a VHF/UHF
antenna or non-scrambled digital/analog cable source.
2. Right and Left Analog Audio Inputs
Use with INPUT 1/2 composite or component video
inputs.
3. Y/VIDEO (Composite Video)
Connect devices with composite video output to these
inputs. Use the adjacent AUDIO R and L inputs if you
wish to send audio to the TV.
4. Y Pb Pr (Component Video)
Connect devices with component video outputs to this
jack. Use the adjacent AUDIO R and L jacks if you wish
to send audio to the TV.
5. DVI/PC AUDIO INPUT
When connecting a DVI device to one of the TV’s HDMI
inputs, use this stereo mini-jack for analog audio.
6. DIGITAL AUDIO OUTPUT
This output sends Dolby Digital or PCM digital audio
to your digital A/V surround sound receiver. Incoming
analog audio is converted by the TV to PCM digital audio.
If you have a digital A/V receiver, in most cases this is the
only audio connection needed between the TV and your
A/V receiver. Dolby Digital audio is available only from
digital channels received on the antenna input.
7. 3D GL ASSES EMITTER
Use this jack for the special IR emitter supplied with 3D
glasses. The emitter will send a signal that synchronizes
your 3D glasses with the screen display. See page 13
8. HDMI™ Inputs (High-Definition
Multimedia Interface)
The HDMI inputs support uncompressed standard and
high-definition digital video formats and PCM digital
stereo audio.
Mitsubishi recommends you use high-speed HDMI
cables when connecting newer HDMI source devices.
High-speed cables bring you the full benefits of Deep
Color.
