IP8815 Nortel IP Phone
User
Guide
2
Jan.
‘09
another
phone
Line not registered w/server
Red/Orange
LED flashes color, red to orange at 30 ipm
* When the LCD displays information for a line, such as when an incoming call first rings, the LED
color is orange otherwise, the LED color will be green.
Flexible buttons not assigned for line access may access features such as Speed dial, Redial and others.
Refer to
section 5.5
and your system administrator for further information.

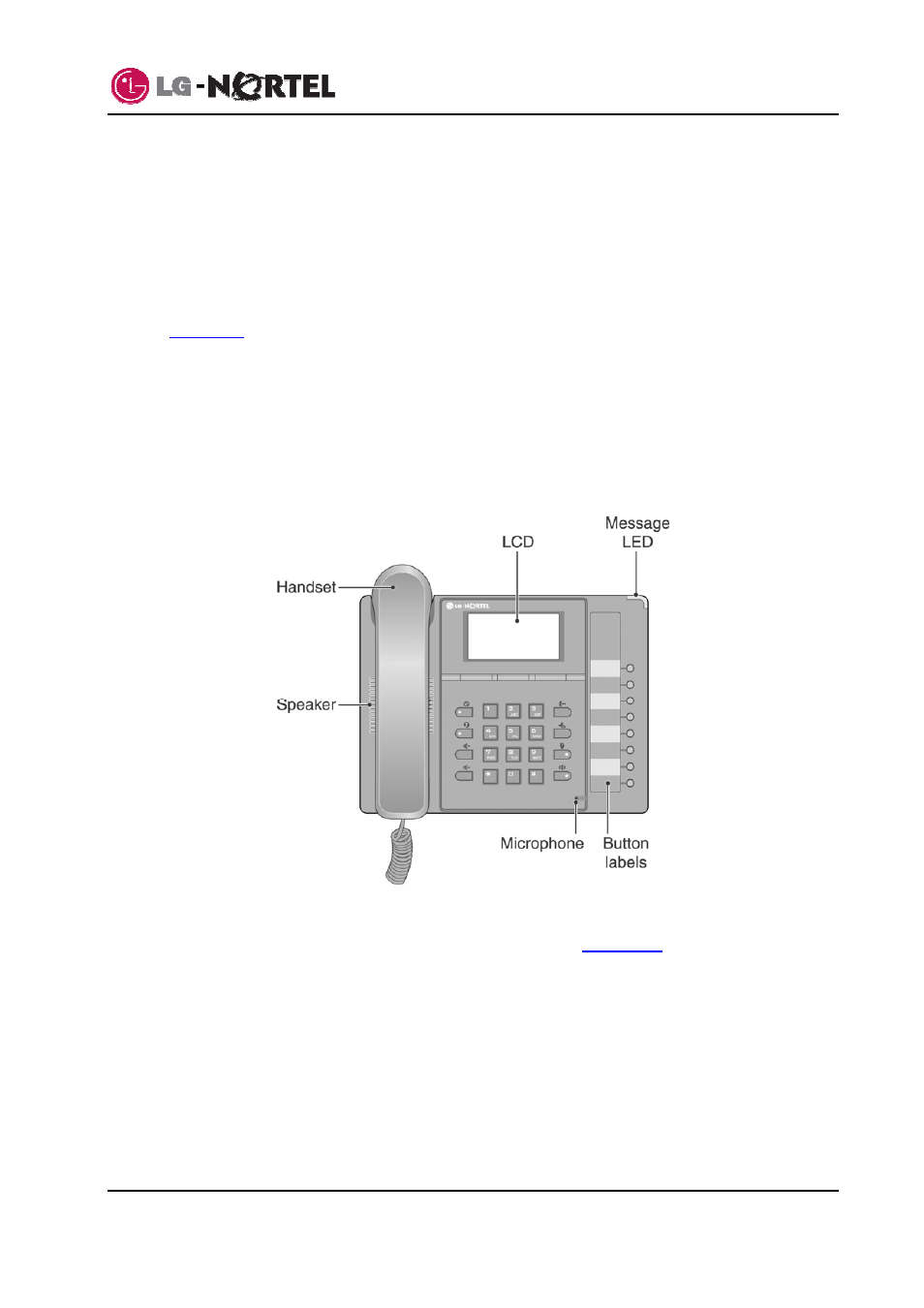

The figure below shows other major components of IP8815 Phone. These components include:
• Handset
• Speaker
and
microphone
• Message Wait Indicator (Message LED)
• LCD (140 by 48 pixel), displays 5-lines
• Flexible button labels
The top line of the LCD indicates a number of icons indicating the connection, status and options for the
IP8815 phone. A list of the icons and there meaning are provided in
Appendix C
.
