31
Appendix
Appendix B - Interface Signals and Connector Pinouts

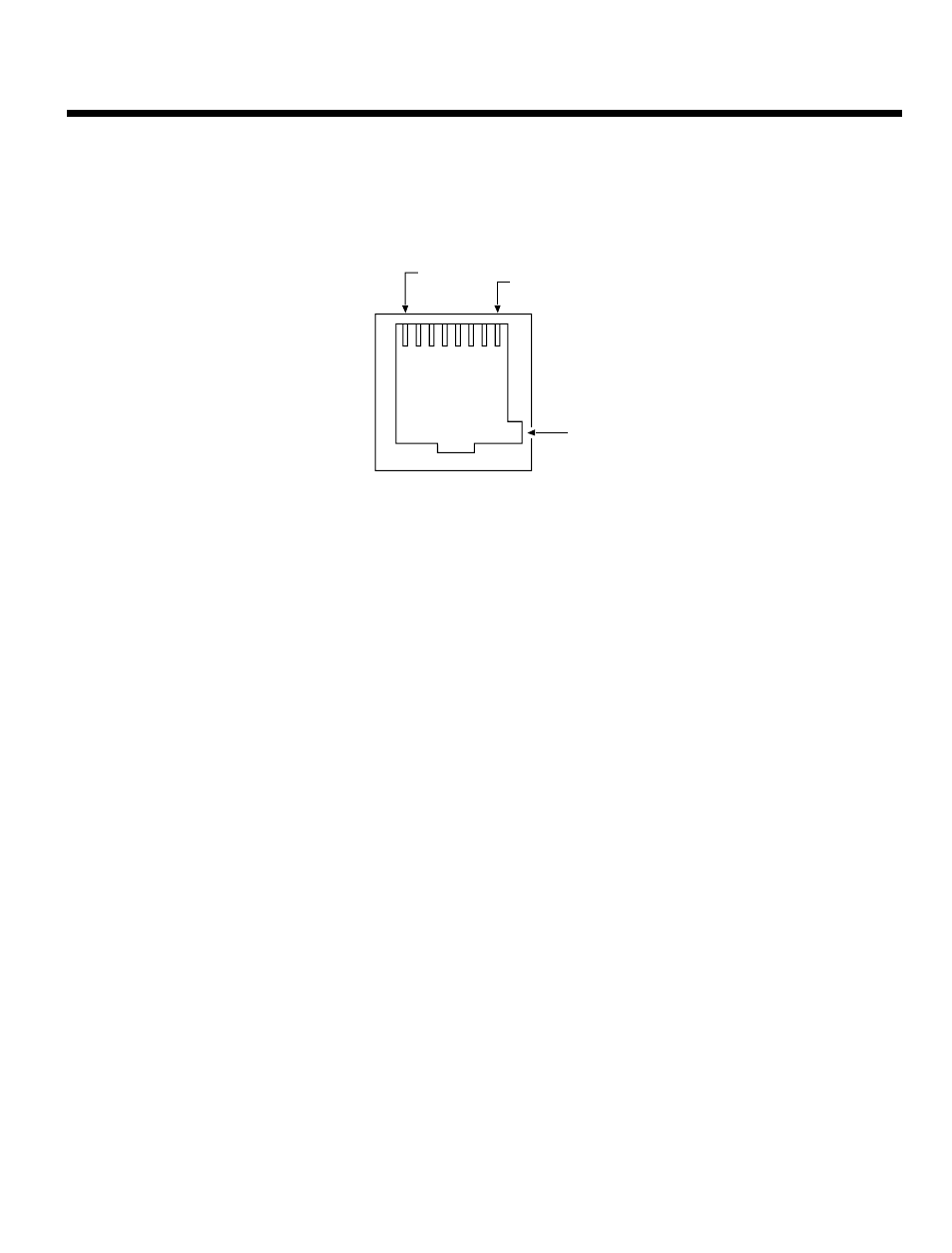

RJ-48 Connector
Pin 1
Pin 8
Key
As viewed from the rear
Figure B-1. Connector
DESCRIPTION
This connector ties the MT56DSU-S to the DDS Network. The RJ-48 connector is keyed for proper insertion
of a keyed RJ-48 plug.
PIN IDENTIFICATION
Pin Description Destination
1 Transmit Pair To Line
2 Transmit pair To Line
3 N/C
4 N/C
5 N/C
6 N/C
7 Receive Pair From Line
8 Receive Pair From Line
